Diseñado con componentes de alta calidad y primeras marcas, el ECO-WORTHY Kit Solar Aislada de 120W 240W te proporciona energía suficiente para cubrir tus necesidades de consumo.
Este kit completo incluye Panel solar 120W 12V alto rendimiento, Regulador solar 30A, Inversor de onda sinusoidal pura, Batería Litio y todos los elementos fotovoltaicos necesarios.
Con Batería Litio LiFePO4 de ECO-WORTHY con más de 3000 ciclos con profundidades de descarga del 95%, paneles solares con garantía de 25 años.
Energía captada en un día:
120W kit: 360Wh/dia en invierno y 840Wh/dia en verano.
240W kit: 720Wh/dia en invierno y 1680Wh/dia en verano.
Este kit para Barcos, Caravanas, Casas Vacacionales.
Paquete incluye

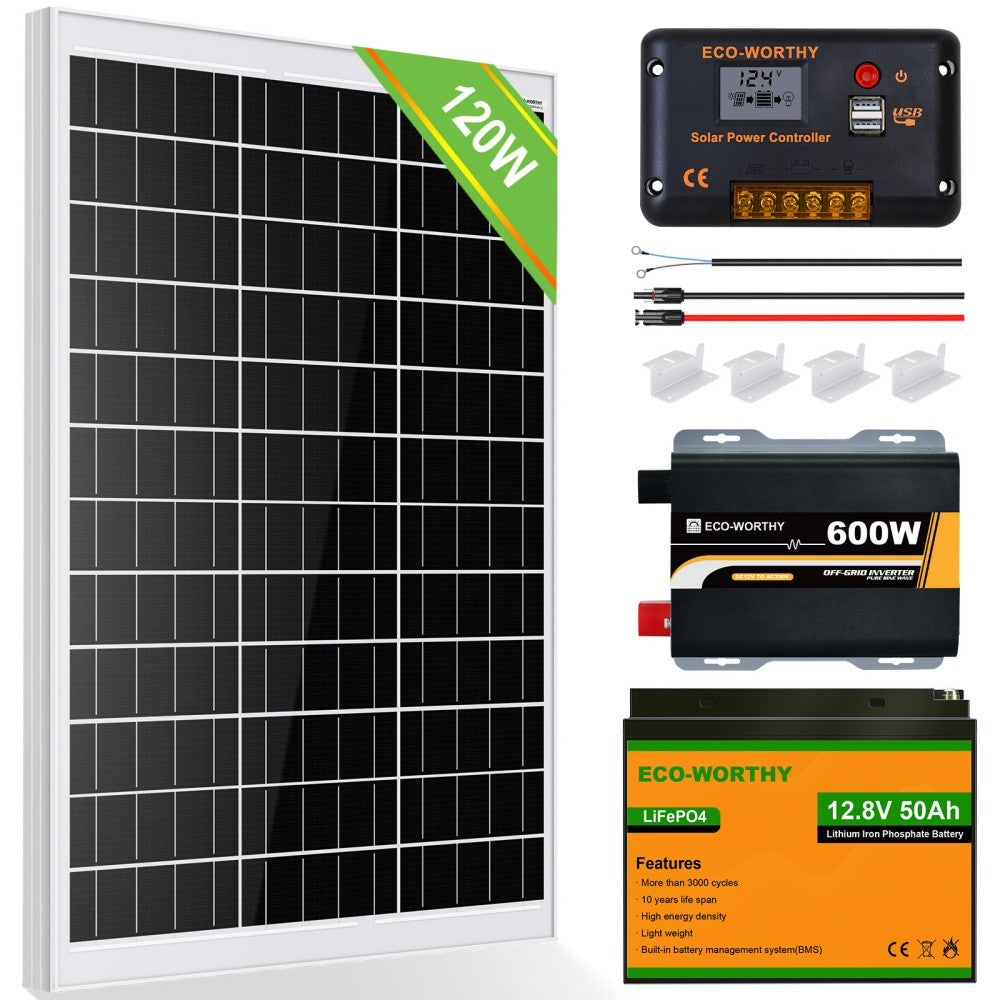

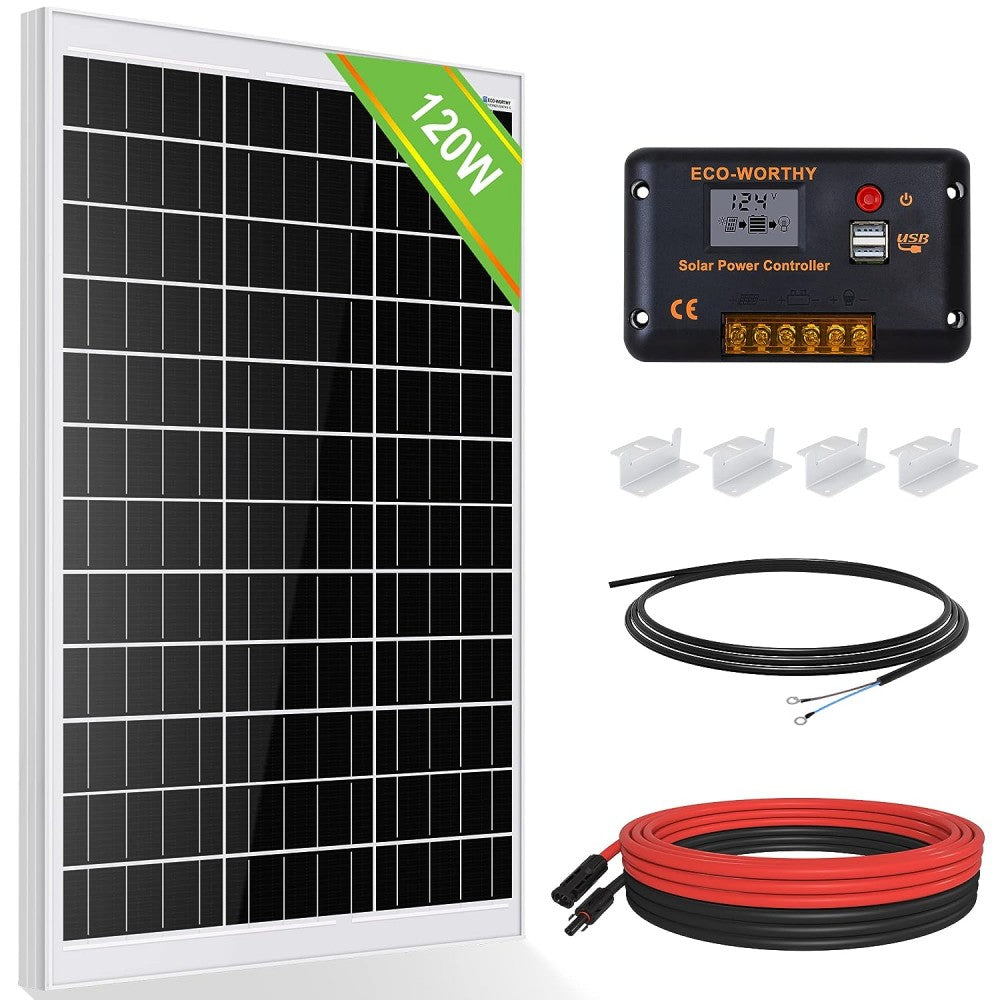

120W (1-Panel) 12V Kit Solar
1x Panel solar mono de 120W
1x Regulador solar 30A PWM
1x Cable de extensión de 5M 4 mm² con MC4
1x Soporte de montaje Z
600W inversor y batería (Opcional)
+
1x Cable de bandeja de 1.5M
1x Inversor de onda sinusoidal pura de 600W 12V-220V
1x Batería de litio LiFePO4 de 12V 50Ah

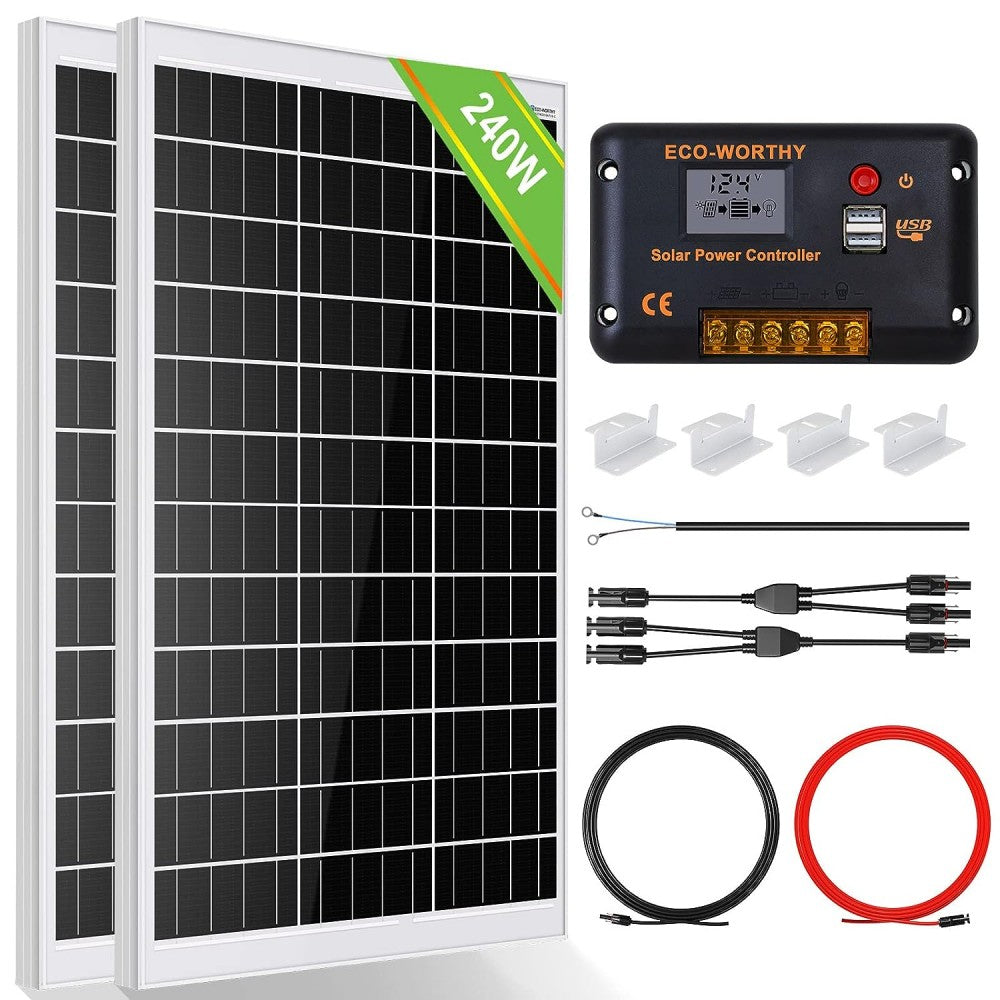

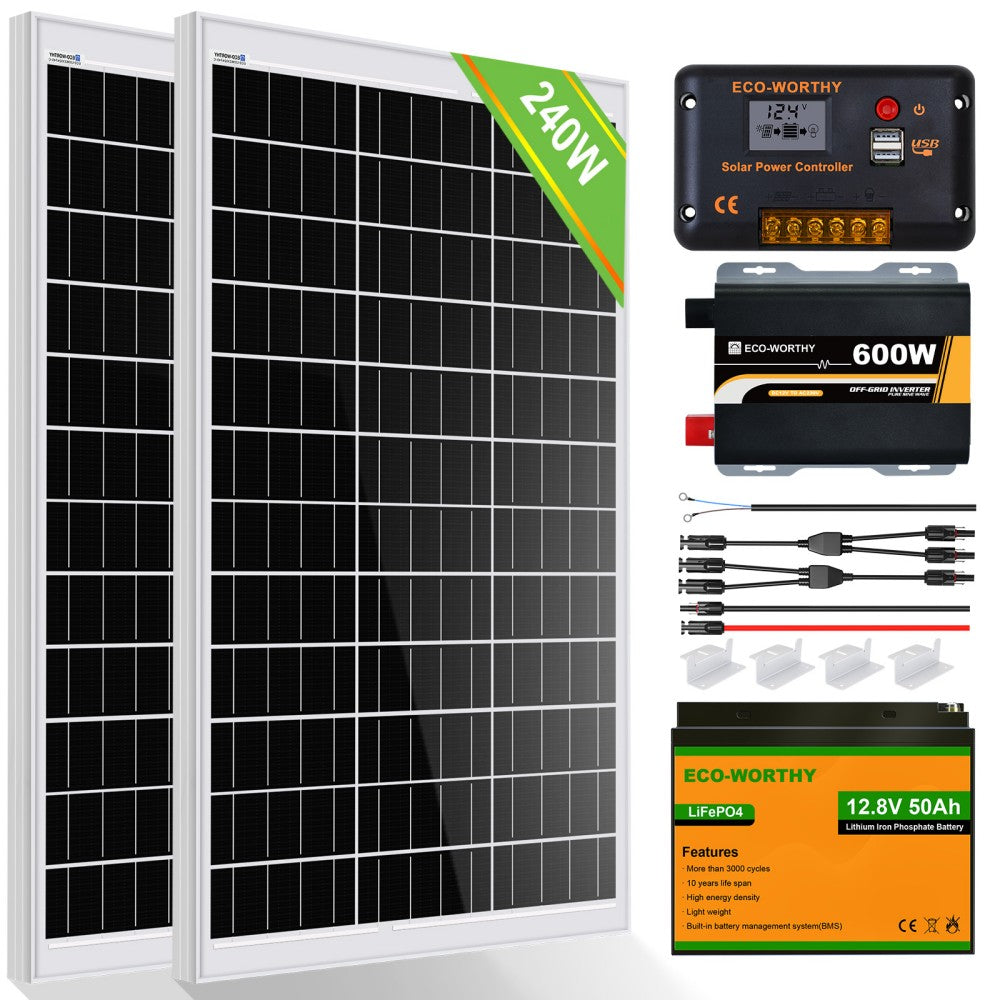

240W (2-Panel) 12V Kit Solar
2x Panel solar mono de 120W
1x Regulador solar 30A PWM
1x Cable de extensión de 5M 4 mm² con MC4
2x Soporte de montaje Z
1x Conector Y MC4
600W inversor y batería (Opcional)
+
1x Cable de bandeja de 1.5M
1x Inversor de onda sinusoidal pura de 600W 12V-220V
1x Batería de litio LiFePO4 de 12V 50Ah

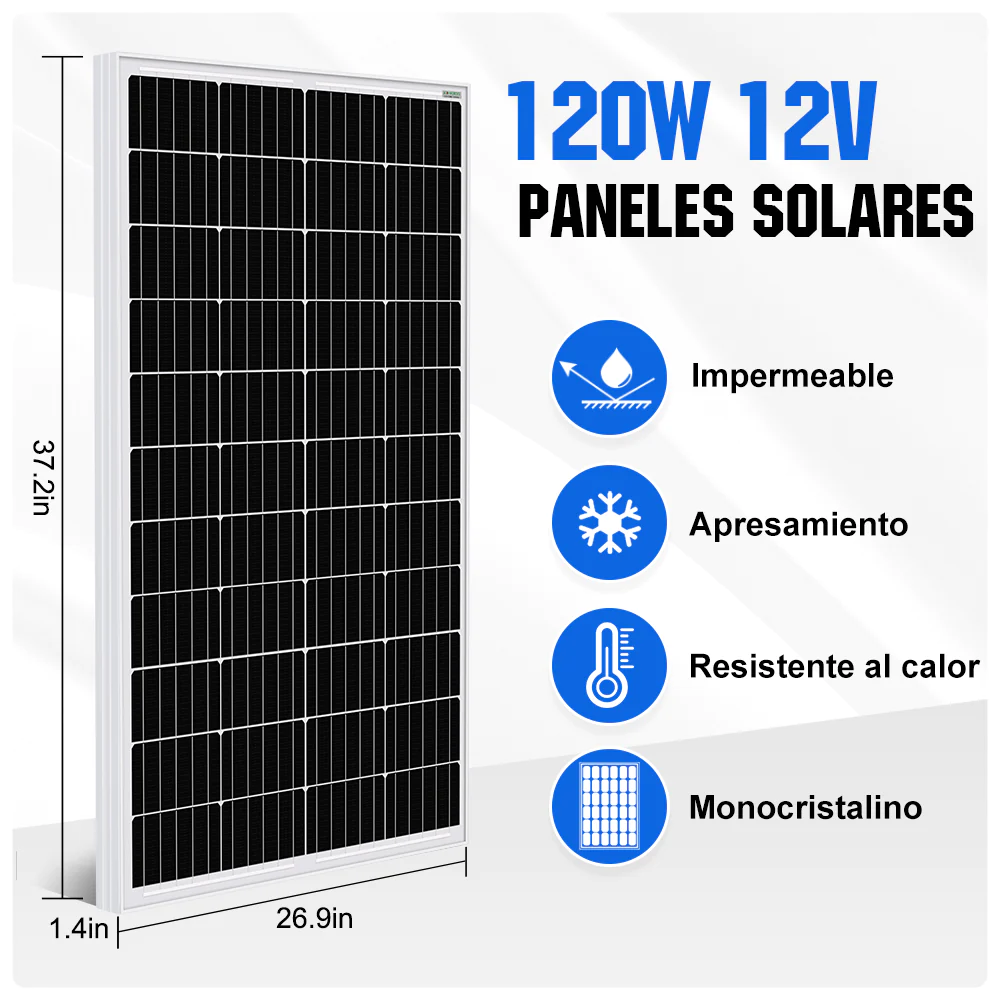

120W Panel solar monocristalino
| Potencia nominal: 120W |
Célula solar: monocristalina |
| Voltaje máximo / pico (Vmp): 20.2V |
Voltaje de circuito abierto (Voc): 24.5V |
| Corriente de cortocircuito: 6.24A |
Corriente máxima: 5.94A |
| Tolerancia de salida: ±3% |
Coeficiente templado de Isc: (010+/-0.01)%/℃ |
| Coeficiente templado de Voc: -(0.38+/-0.01)%/℃ |
Rango de temperatura: －40℃～ +85℃ |
| Marco: Marco de aleación de aluminio |
Longitud del cable de extensión: 90cm (2.95ft) |
Tamaño del cable de extensión: conector 4mm² (11AWG) / MC4
|
Tamaño: 960*670*35mm |
| Peso: 7.0 kg |
|

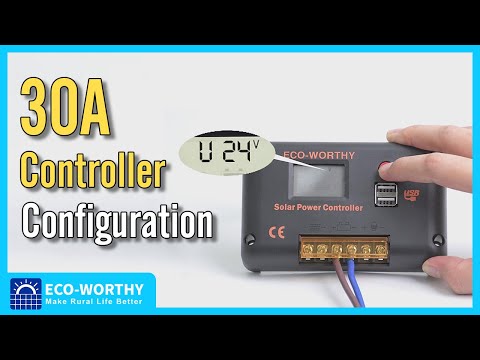

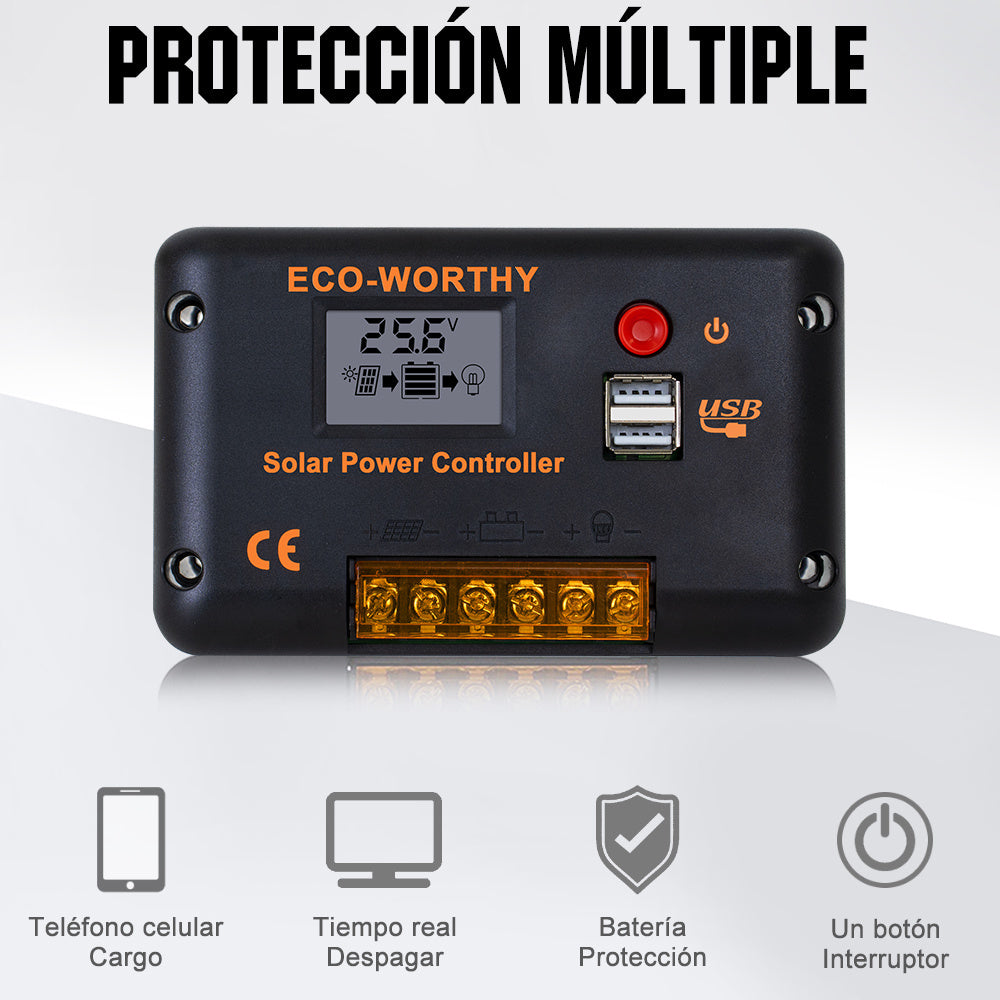

Regulador de Carga PWM 30A
| Voltaje de la batería: 12V/24V |
Modo de carga: PWM |
| Corriente de carga máxima: 30A |
Corriente de descarga: 30A |
| Voltaje de circuito abierto Max.PV: <50V |
Salida USB: 5V/2A |
| Temperatura de trabajo: -20 ℃ ~ 60 ℃ |
Peso: 150g |
| Tamaño: 138*82*30mm |
|

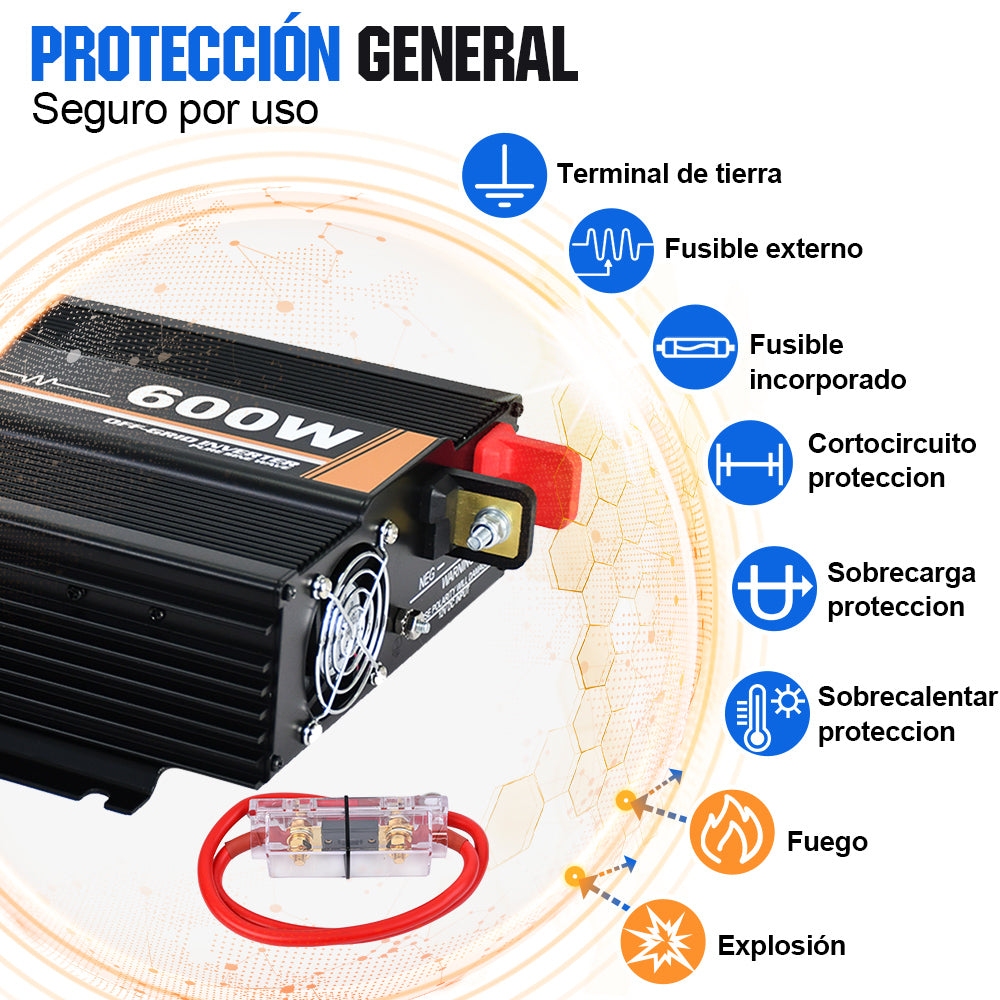

600W 12V a 220V Inversor
| Voltaje de entrada de la batería: 12V |
Potencia nominal: 600W |
| Potencia máxima: 1200W |
Forma de onda de salida: onda sinusoidal pura |
| Voltaje de salida: 220Vac |
Salida USB: 5V 1.2A |
| Cable de extensión: 6 mm², 9 AWG, 1 metro |
Frecuencia de salida: 50 HZ ± 0.3 HZ |
| Zócalos de salida de CA: 1 |
Temperatura: -20 ℃ -40 ℃ |

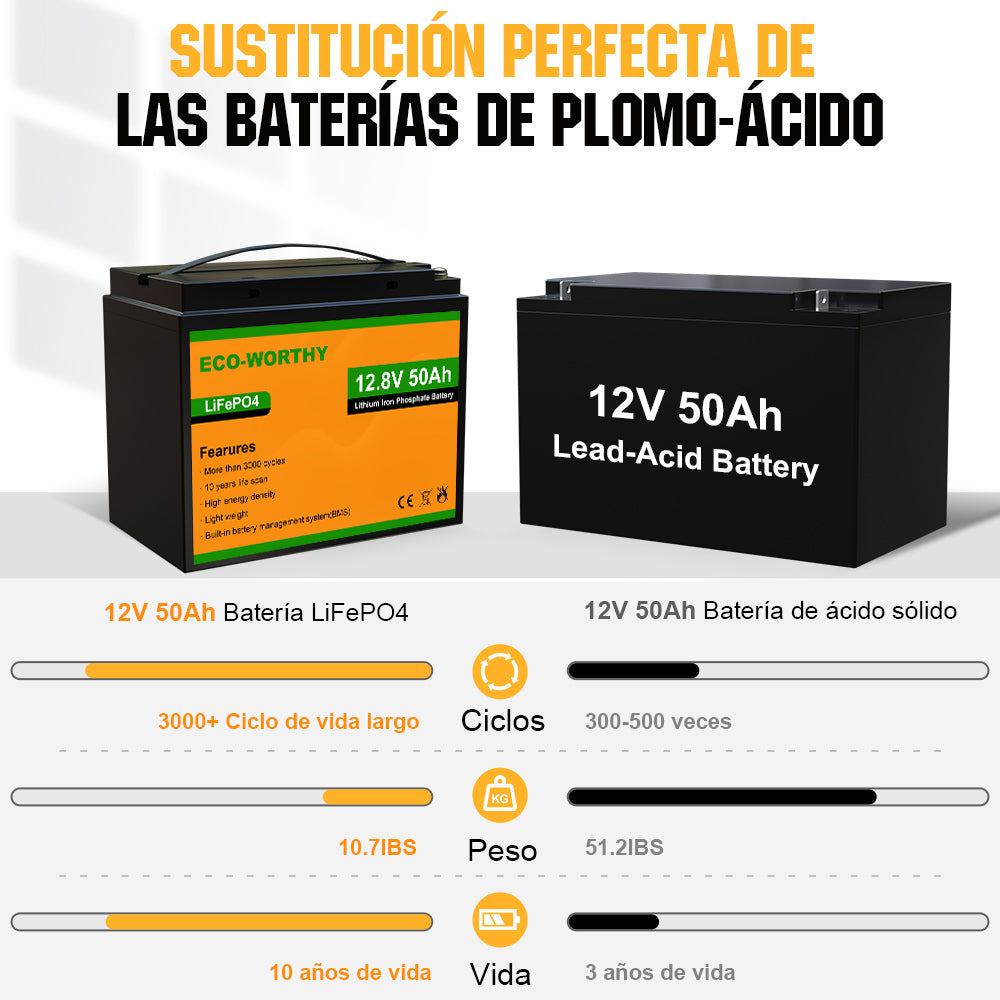

Batería de hierro de litio 50Ah LiFePO4
| Capacidad de la batería: 50Ah |
Energía de la batería: 640Wh |
| Voltaje de la batería: 12.8V |
Corriente máxima de carga/descarga: 50A / 50A |
| Rango de temperatura de carga: 0-55 ℃ |
Rango de temperatura de descarga: ﹣20－55℃ |
| Voltaje máximo de carga: 14.5V |
Voltaje de corte de descarga: 10V |
| Tamaño del tornillo: M6 |
Tamaño de la batería: 232*135*181mm |
| Peso de la batería: 5.74 kg |
|
Cables de extensión 5M 4 mm²
| Tipo de cable: Conexión de paneles solares a controladores de carga |
Tensión nominal: 600/1000V |
| Longitud: 5 metros (16 pies) |
Conductor: Alambre de cobre estañado |
| AWG: 12 |
Área transversal normal del conductor (mm2): 4 |
| Impermeable: Protección IP 65 |
Temperatura: -40 °F a +185 °F |
| Conector: MC4 |
|

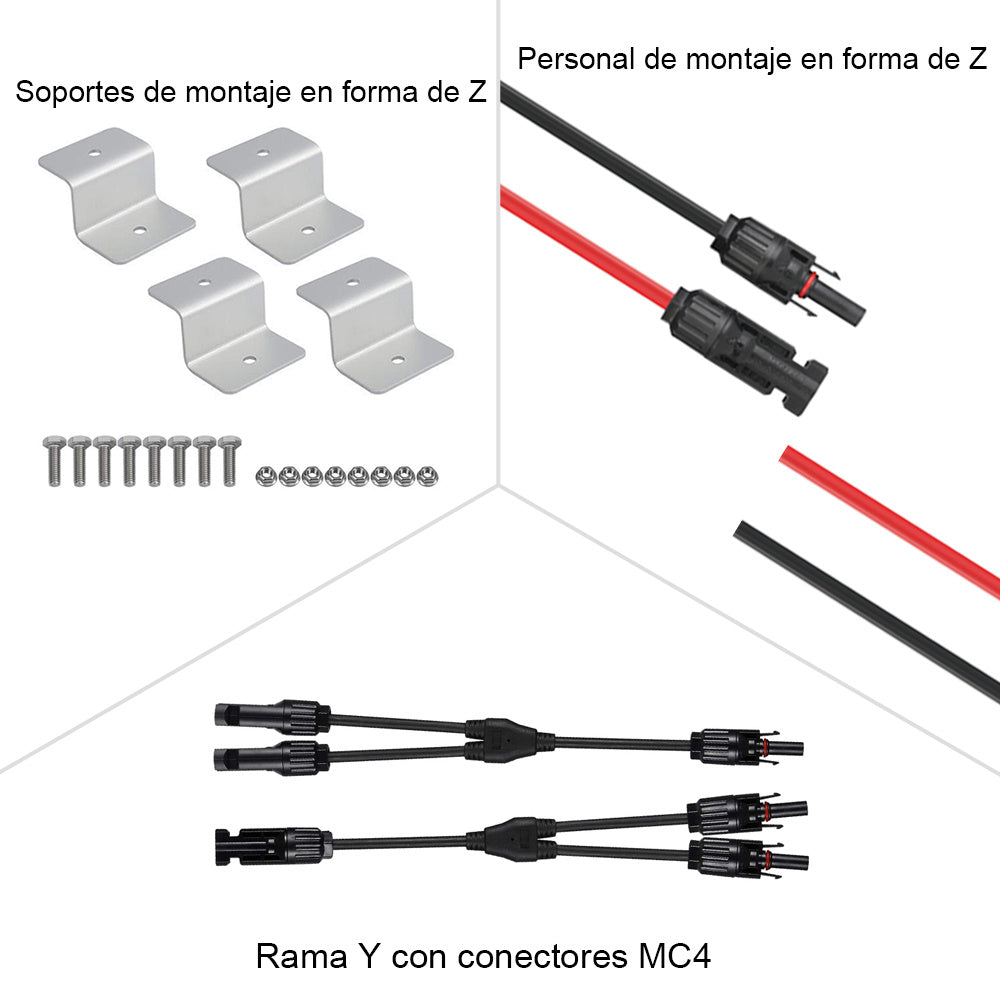

Soporte de montaje Z
| 4 piezas de soportes para paneles solares en forma de Z |
8 piezas de tuercas y pernos de acero inoxidable |
Conectores MC4 del cable derivado en Yctors
| Compatible con conector solar MC4. |
Fácil instalación para 2 paneles solares conectados en paralelo. |
