Diseñado con componentes de alta calidad y primeras marcas, el ECO-WORTHY Kit Solar Aislada de 130W 260W 390W 520W te proporciona energía suficiente para cubrir tus necesidades de consumo.
Este kit completo incluye Panel solar flexible 130W 12V alto rendimiento, Regulador solar 30A/60A y todos los elementos fotovoltaicos necesarios.

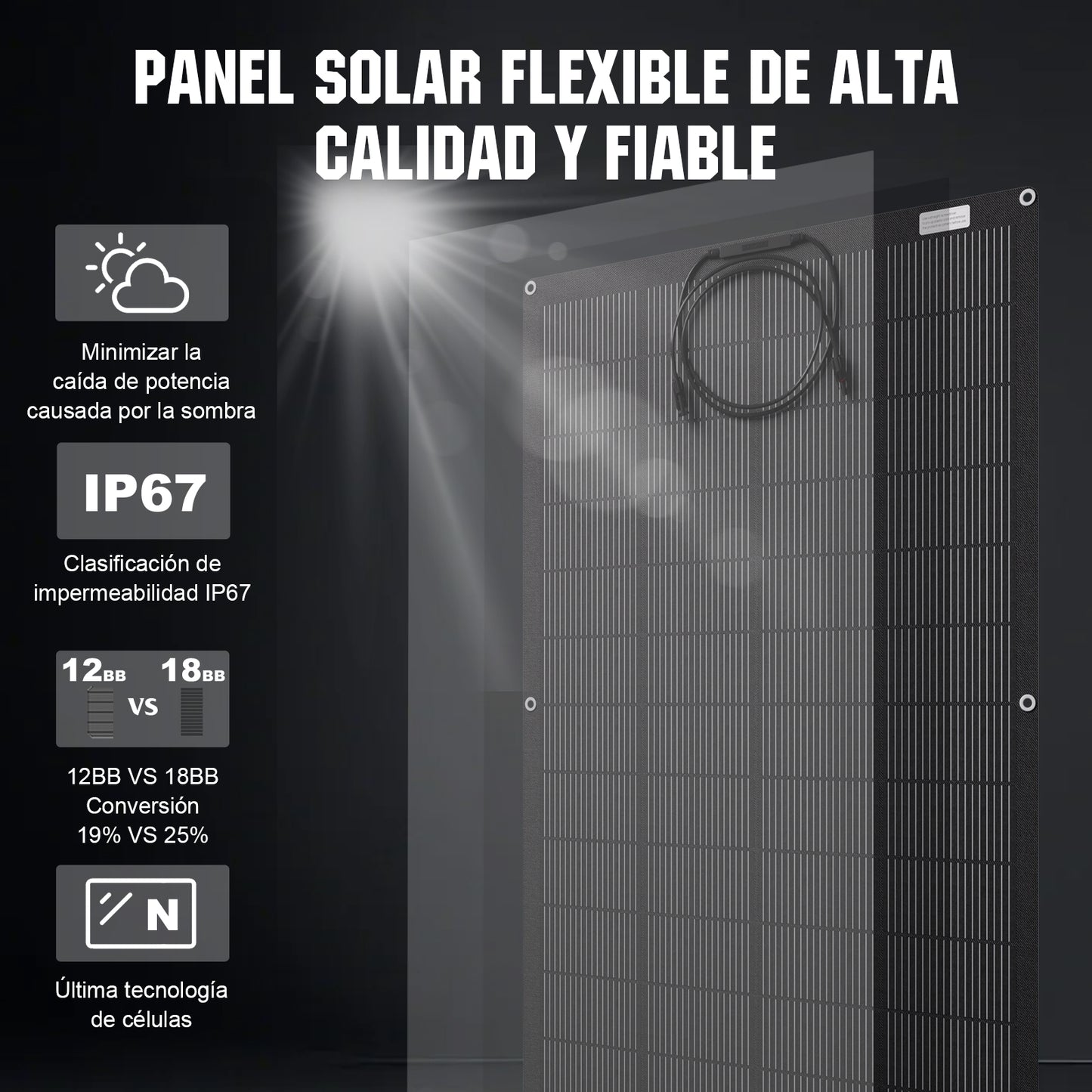

El revestimiento de ETFE estructurado, especialmente translúcido, de los módulos solares garantiza un nivel muy alto de resistencia a los arañazos y a la intemperie y, por lo tanto, una larga vida útil. Paneles solares con garantía de 25 años.
Este kit es ideal tanto como módulo solar para casas móviles como especialmente para uso marino en yates de vela, yates a motor y otros tipos de embarcaciones.

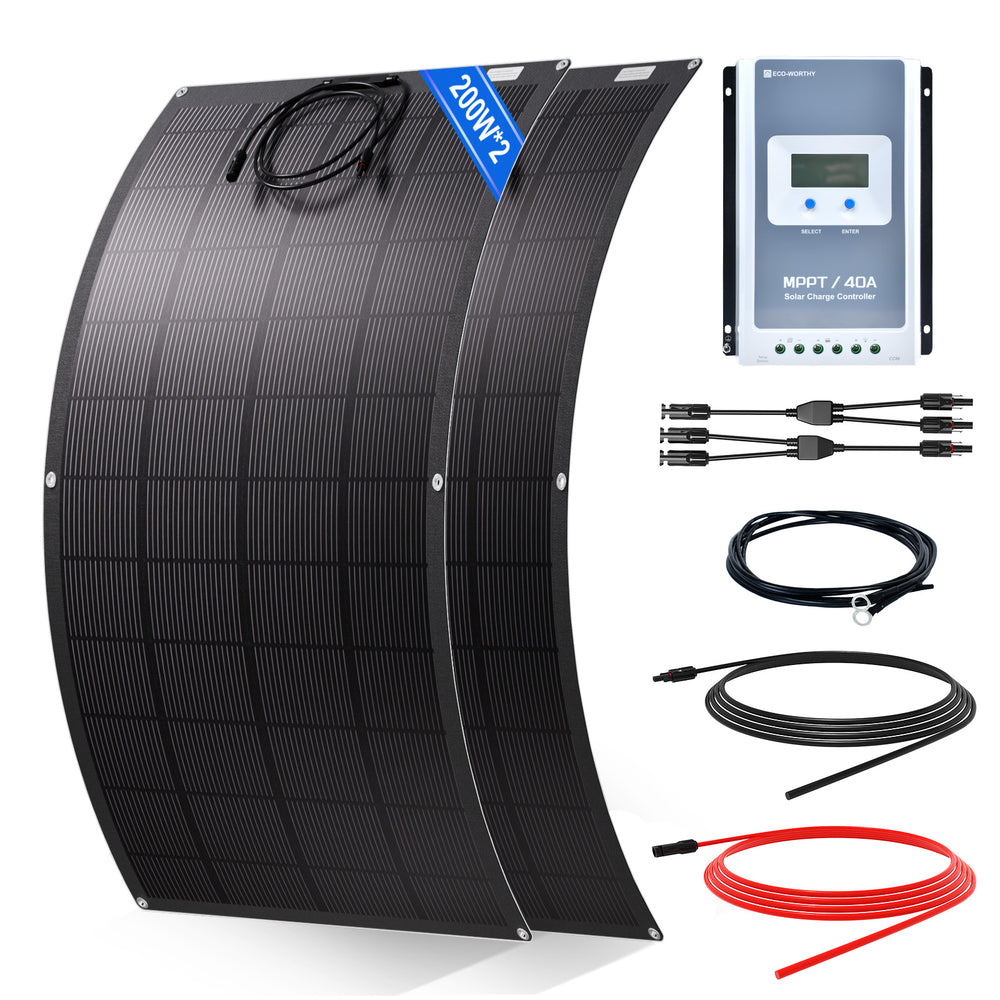

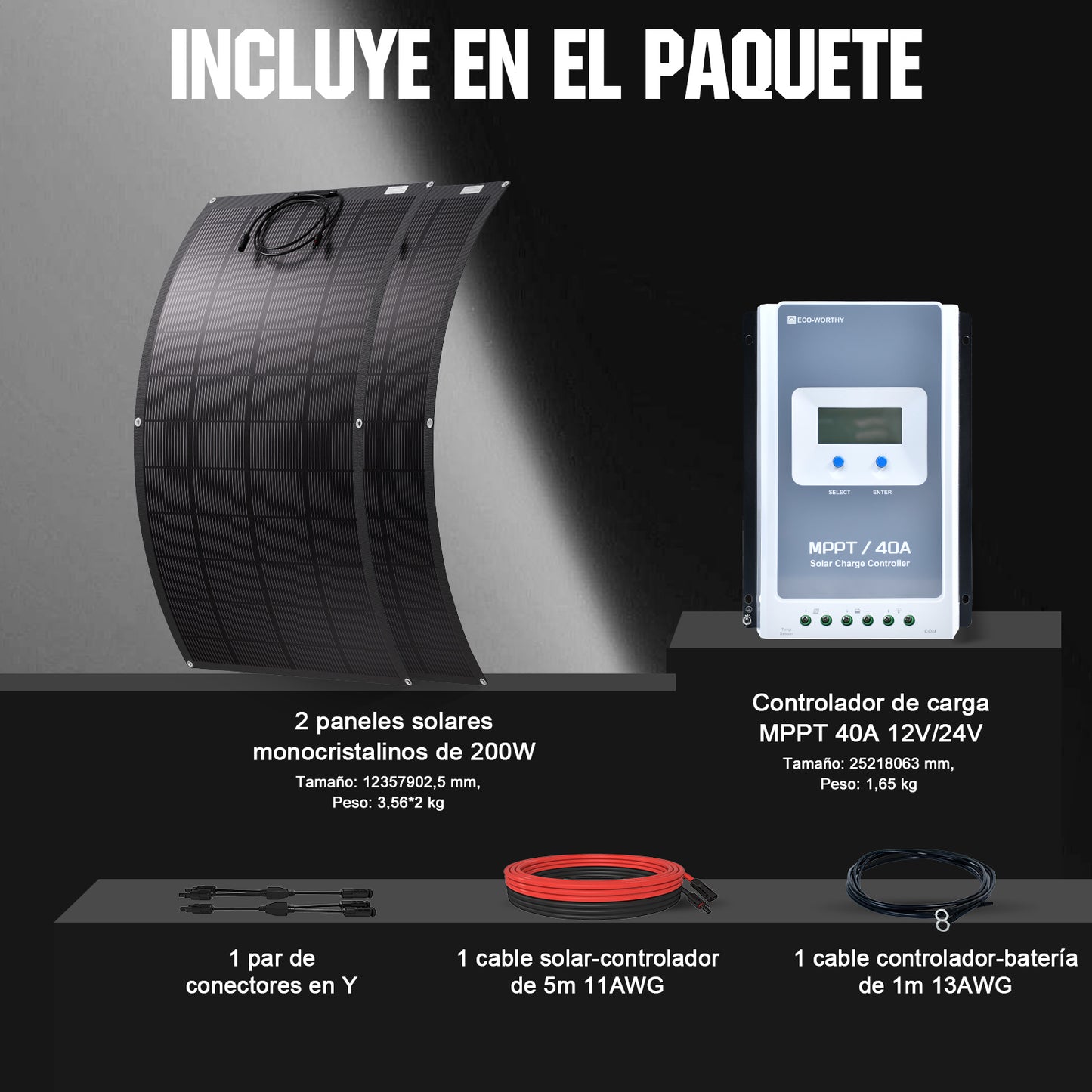

Paquete incluye
400W (2-Panel) 24V Kit Solar
2x Panel solar mono flexible de 200W
1x Regulador solar 40A MPPT
1x Cable de extensión de 5M 4 mm² con MC4
1x Conector Y MC4
1x Cable de bandeja de 1.5M

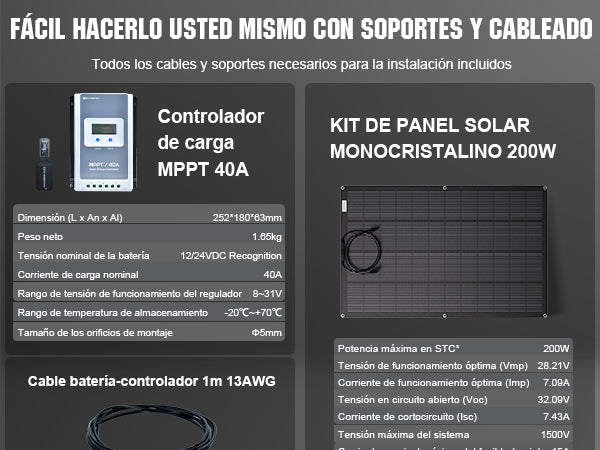

Panel solar mono flexible de 200W
| Potencia máxima (STC*): 200 W |
Voltaje de funcionamiento óptimo (Vmp): 28,21 V |
| Corriente de funcionamiento óptima (Imp): 7,09 A |
Voltaje de circuito abierto (Voc): 32,09 V |
| Corriente de cortocircuito (Isc): 7,43 A |
Voltaje máximo del sistema: 1500 V |
| Máxima protección mediante fusibles en serie: 15 A |
Peso: 3,56 kg |
| Dimensiones: 1235 × 790 × 2,5 mm |
Cremalleras de acero inoxidable: 395 mm × 6 |

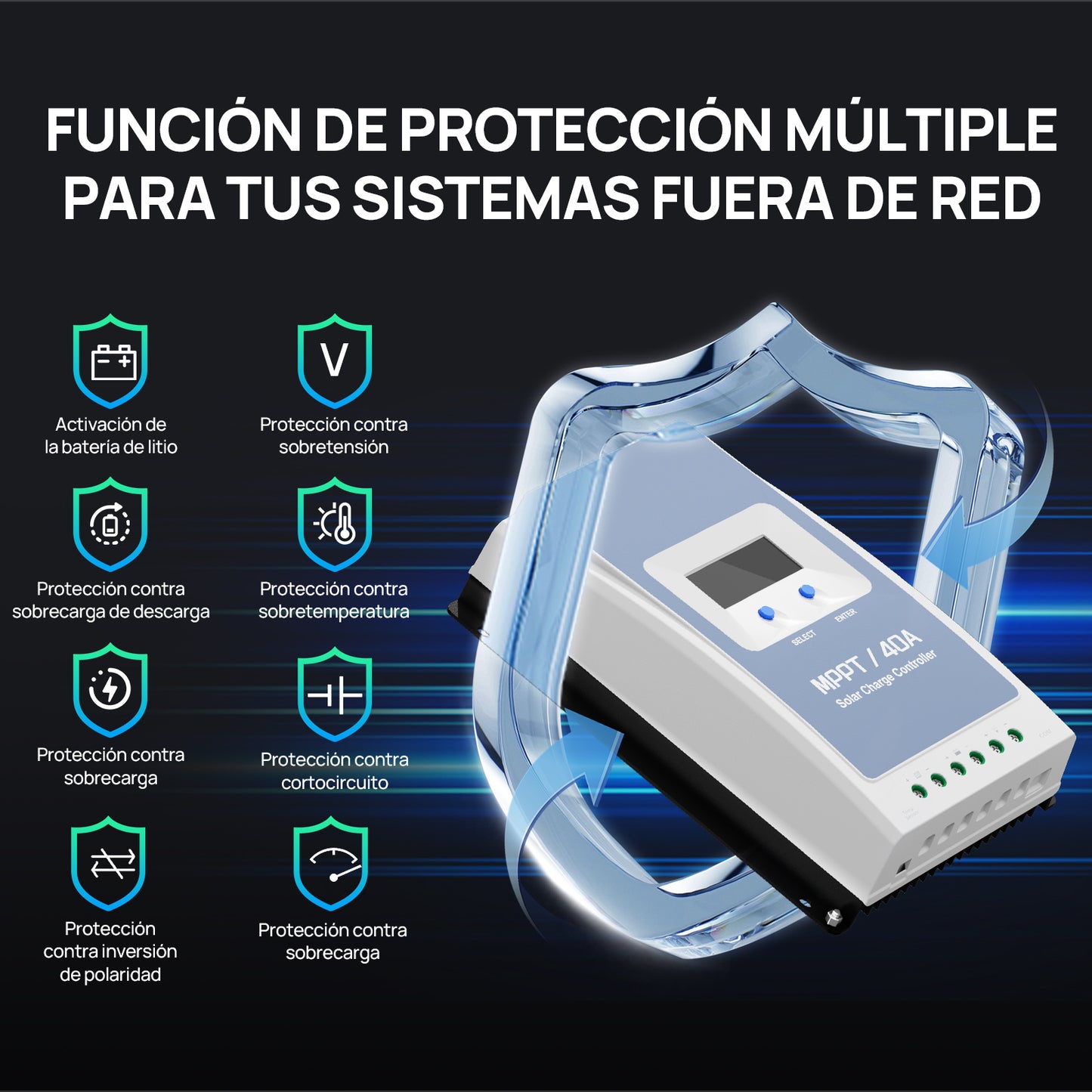

Regulador de Carga MPPT 40A
| Voltaje de la batería: 12V/24V |
Potencia de entrada solar máxima: 560/1120W |
| Modo de carga: MPPT |
Corriente de carga nominal: 20A |
| Eficiencia de carga (pico): 97% |
Autoconsumo: 1~2W |

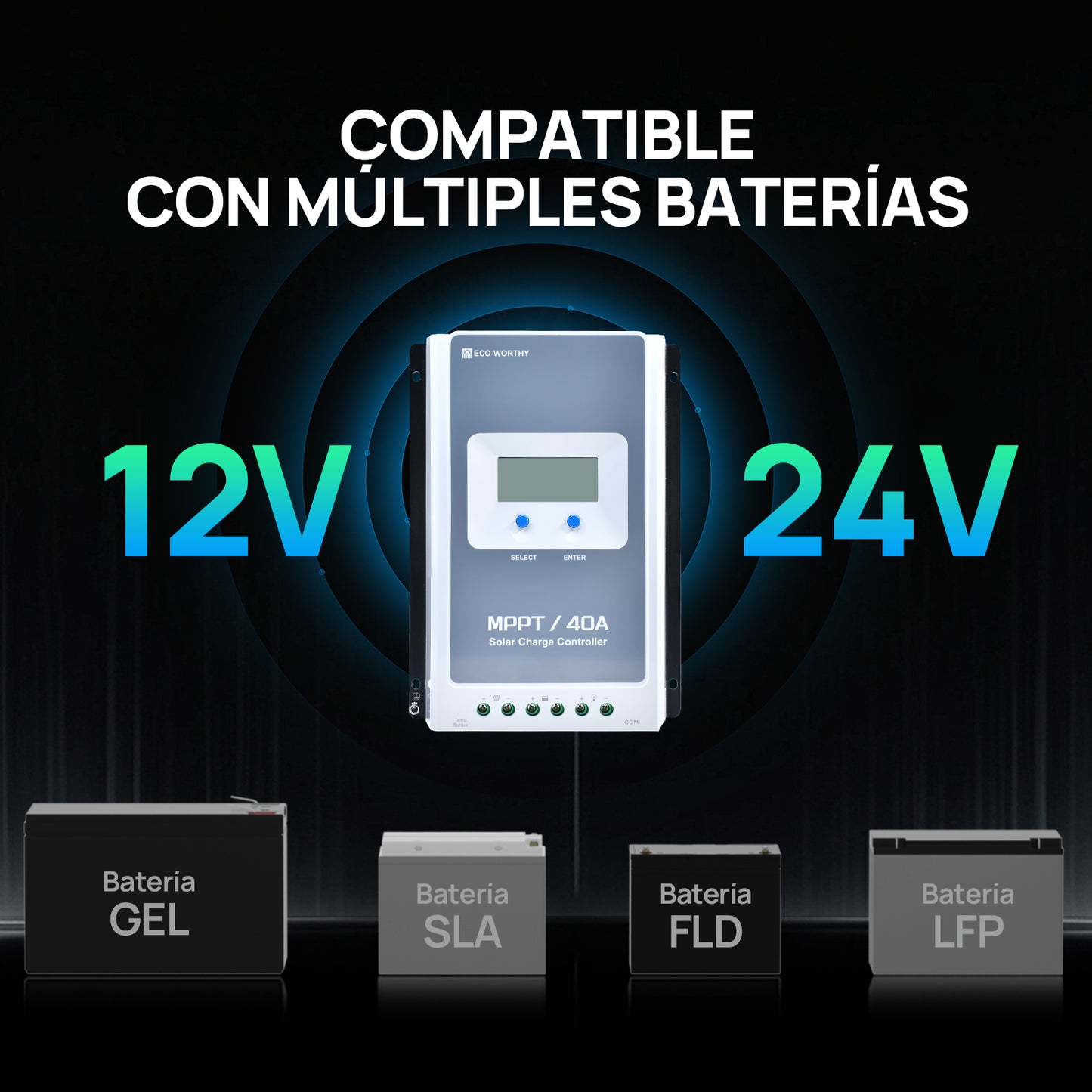

| Tipo de batería: LiFePO4, AGM, Sellado, Gel, Inundado |
Tamaño: 220*148*64mm |
| Corriente de carga máxima: 40A |
Peso: 1.5 KG |
| Voltaje máximo de circuito abierto de PV: <100V |
|

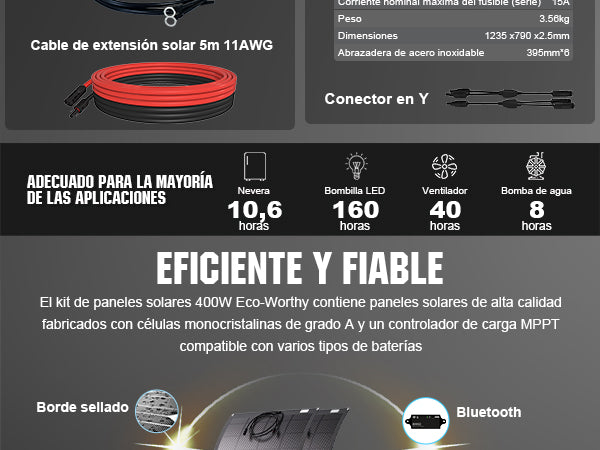

Cables de extensión 5M 4 mm²
| Tipo de cable: Conexión de paneles solares a controladores de carga |
Tensión nominal: 600/1000V |
| Longitud: 5 metros (16 pies) |
Conductor: Alambre de cobre estañado |
| AWG: 12 |
Área transversal normal del conductor (mm2): 4 |
| Impermeable: Protección IP 65 |
Temperatura: -40 °F a +185 °F |
| Conector: MC4 |
|
Conectores MC4 del cable derivado en Yctors
| Compatible con conector solar MC4. |

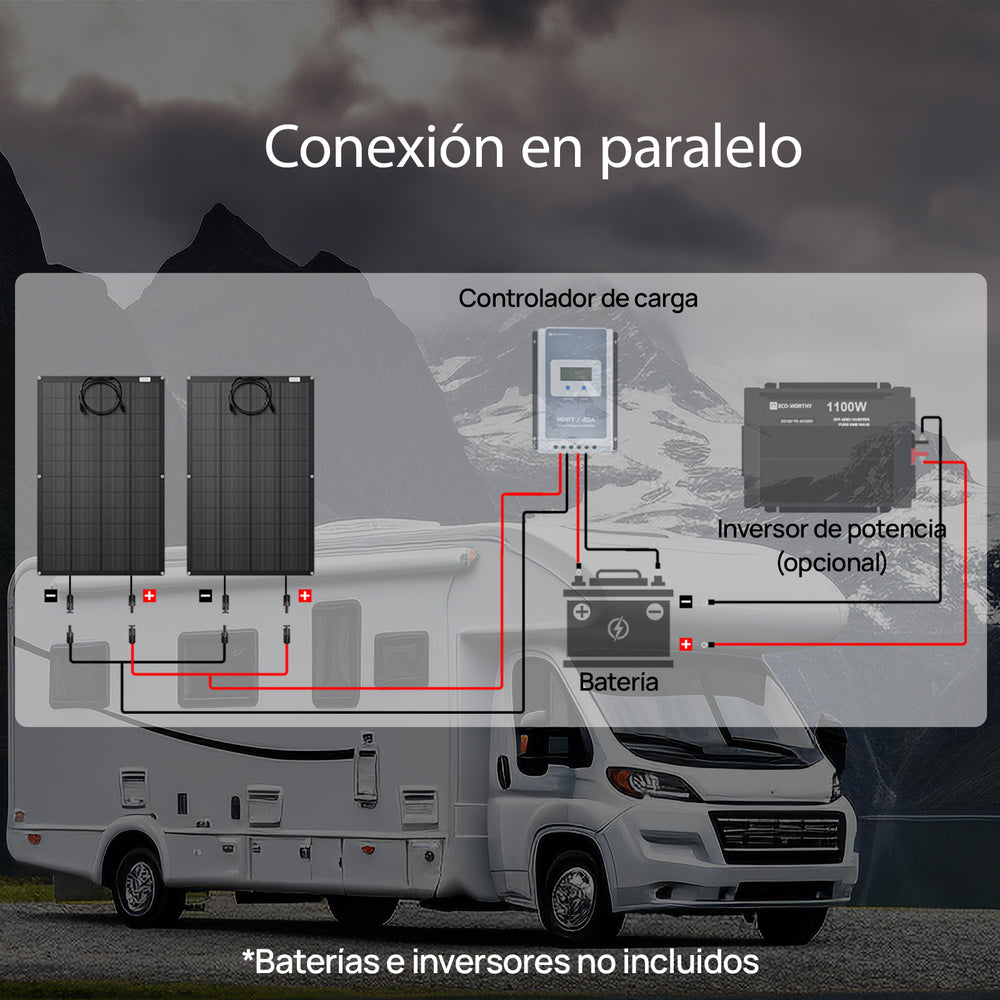

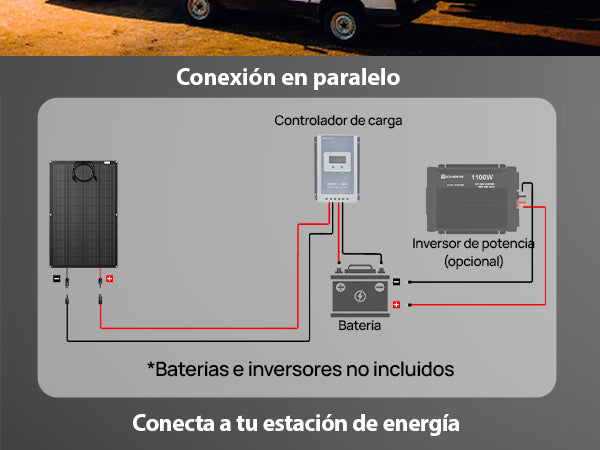

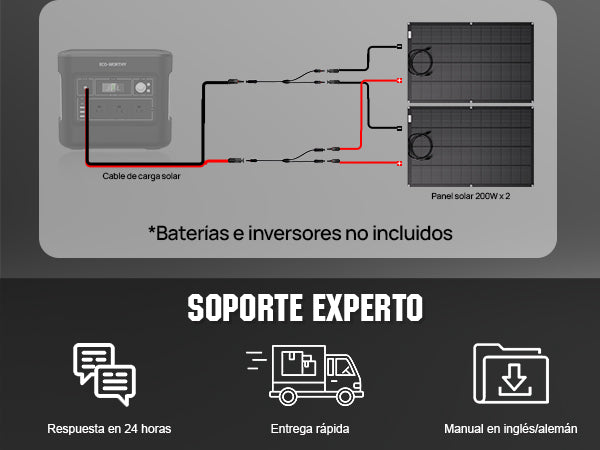

Fácil instalación para 2 paneles solares conectados en paralelo. |
