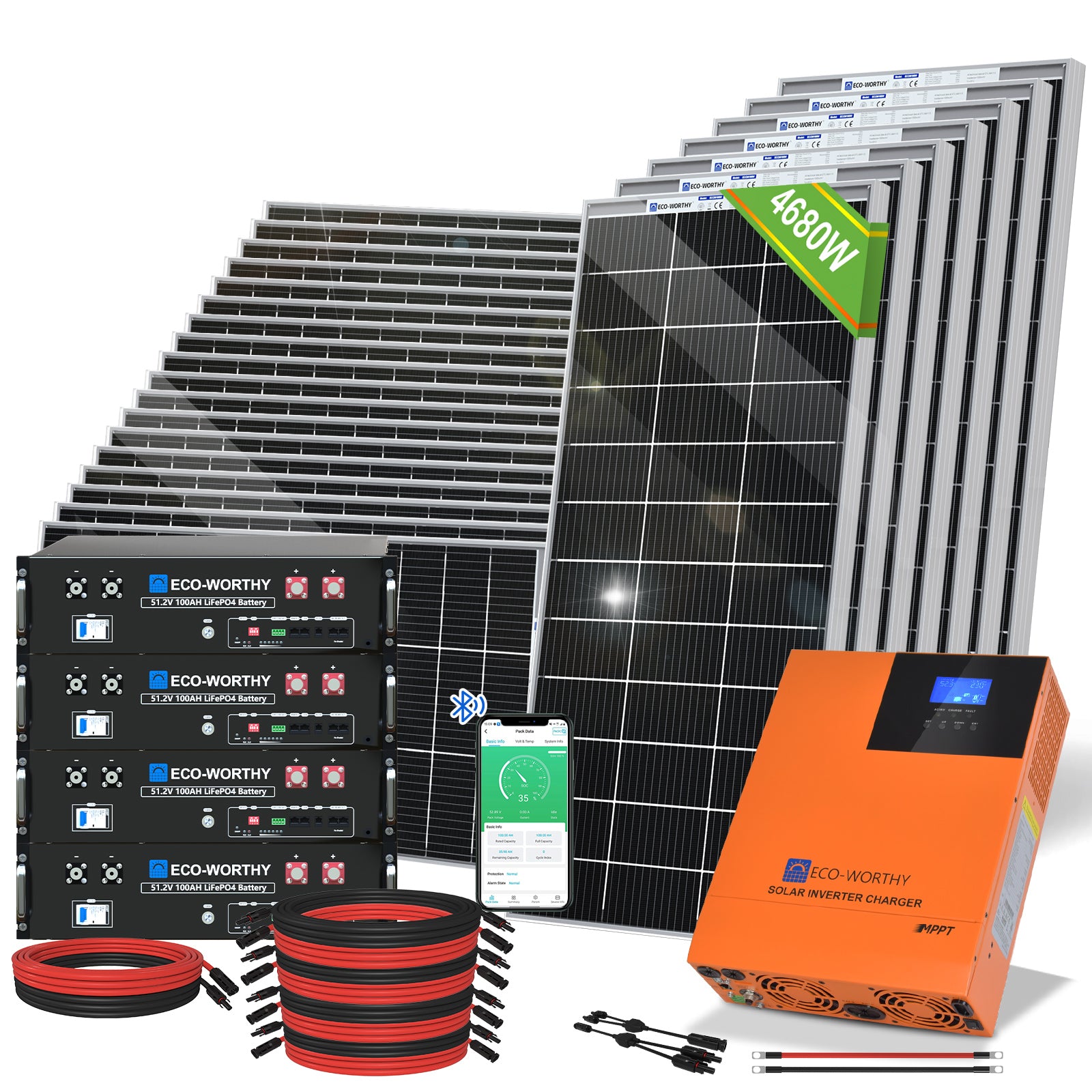

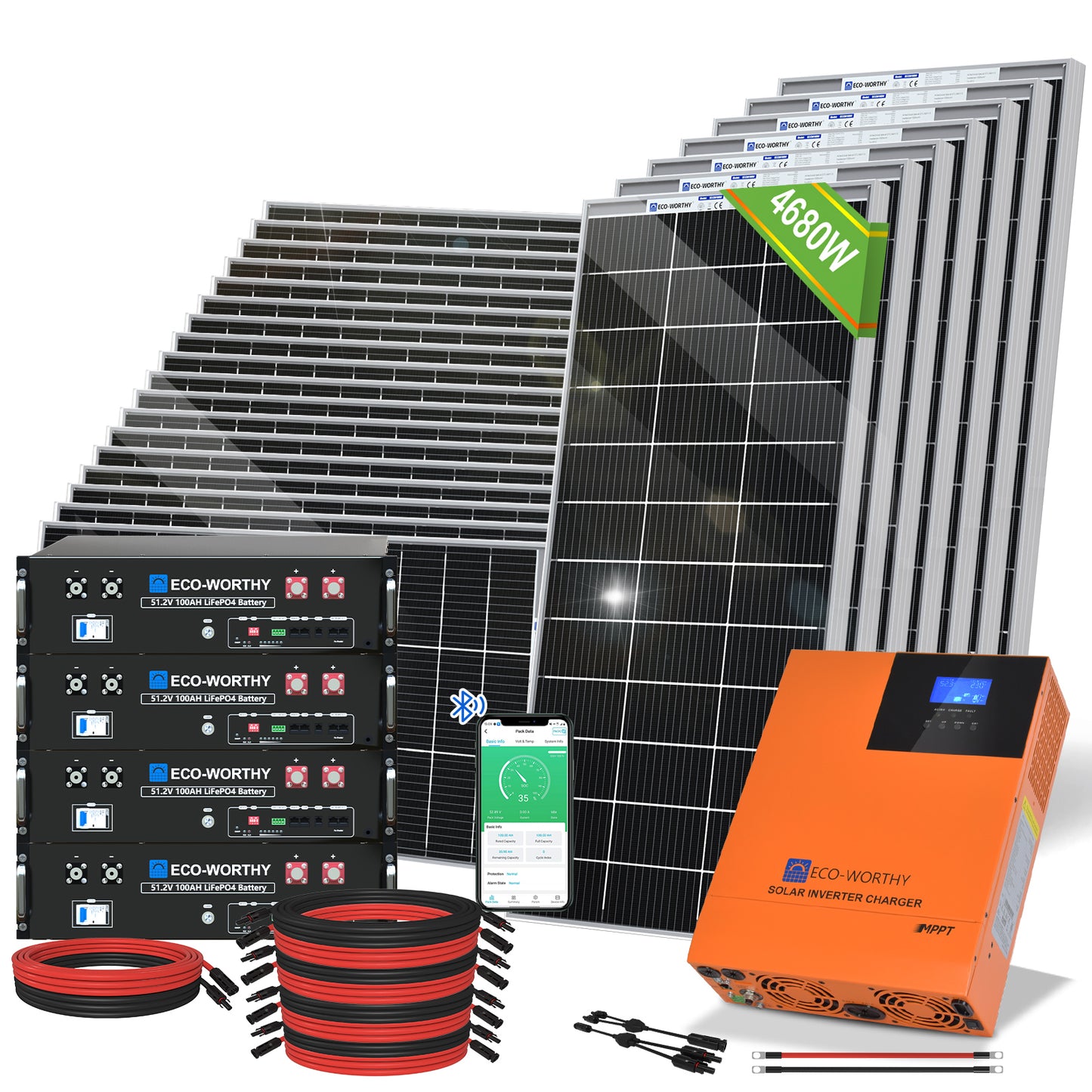

Kit solar MPPT completo para autoconsumo fuera de la red 48V 4680W (24x 195W bifaciales)

Si la eficiencia, la fiabilidad y la asequibilidad son sus prioridades, el kit solar MPPT expandible ECO-WORTHY de 4680 W y 48 V es la opción ideal. El panel solar monocristalino ECO-WORTHY de 195 W y 12 V es totalmente resistente a la intemperie y está fabricado profesionalmente con componentes de alta calidad. 25 años de garantía de potencia lineal. La batería de fosfato de hierro y litio LiFePO4 de ECO-WORTHY ofrece el doble de potencia, la mitad de peso y una duración 8 veces superior a la de una batería sellada de plomo-ácido. Inversor todo en uno: Integrado con un controlador de carga solar MPPT de 80 A/48 V, el inversor de onda sinusoidal pura de 5000 W en una unidad compacta le permite disfrutar de la energía estable del sol y de la red eléctrica para mantener su suministro eléctrico en cualquier circunstancia. El kit solar MPPT ECO-WORTHY de 4680 W y 48 V se puede utilizar para diversos fines, como viviendas, cabañas, etc. Sea cual sea el uso que le dé, puede tener la seguridad de que está adquiriendo un sistema de calidad. Si tiene alguna pregunta sobre este producto, contáctenos en info@eco-worthy.com.

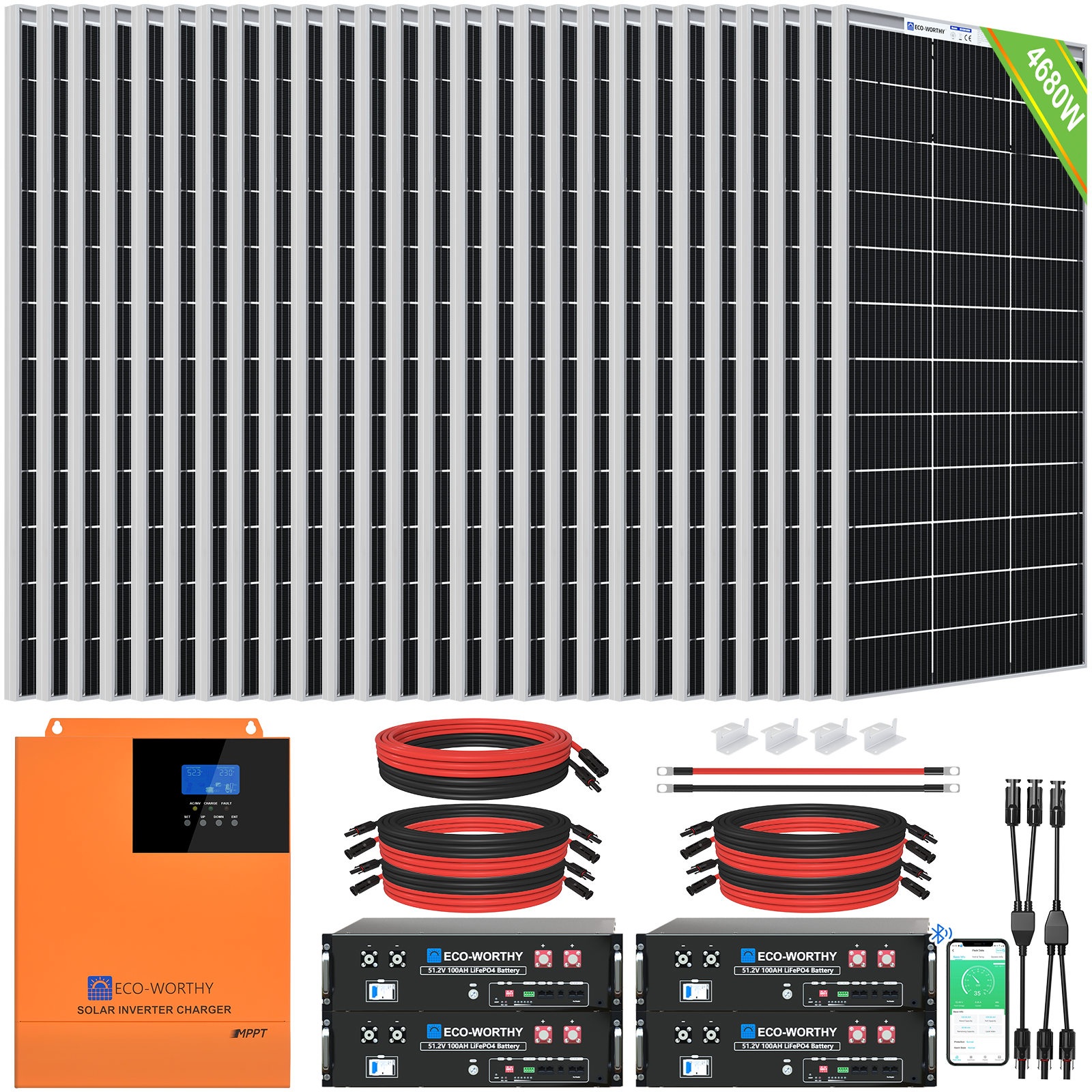

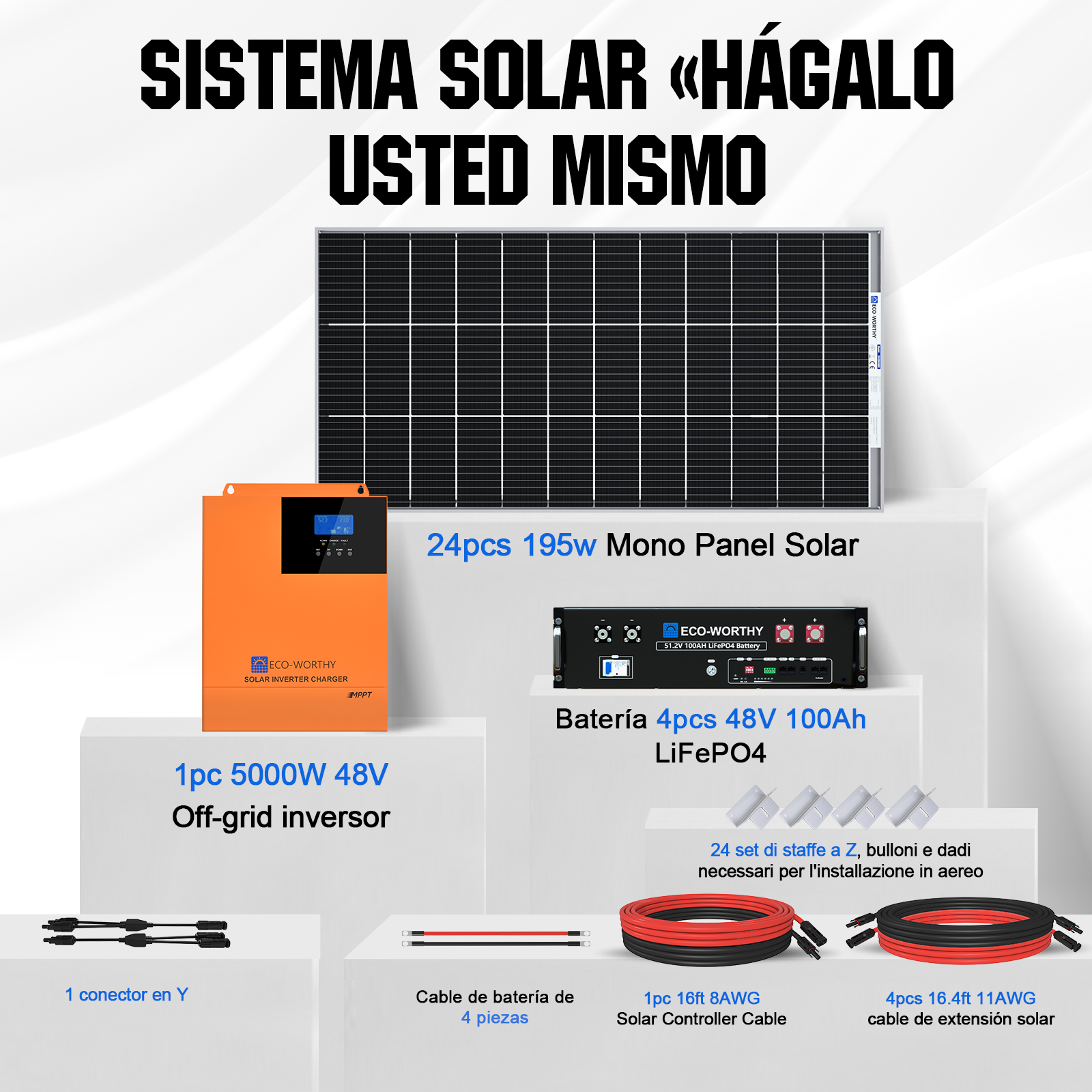

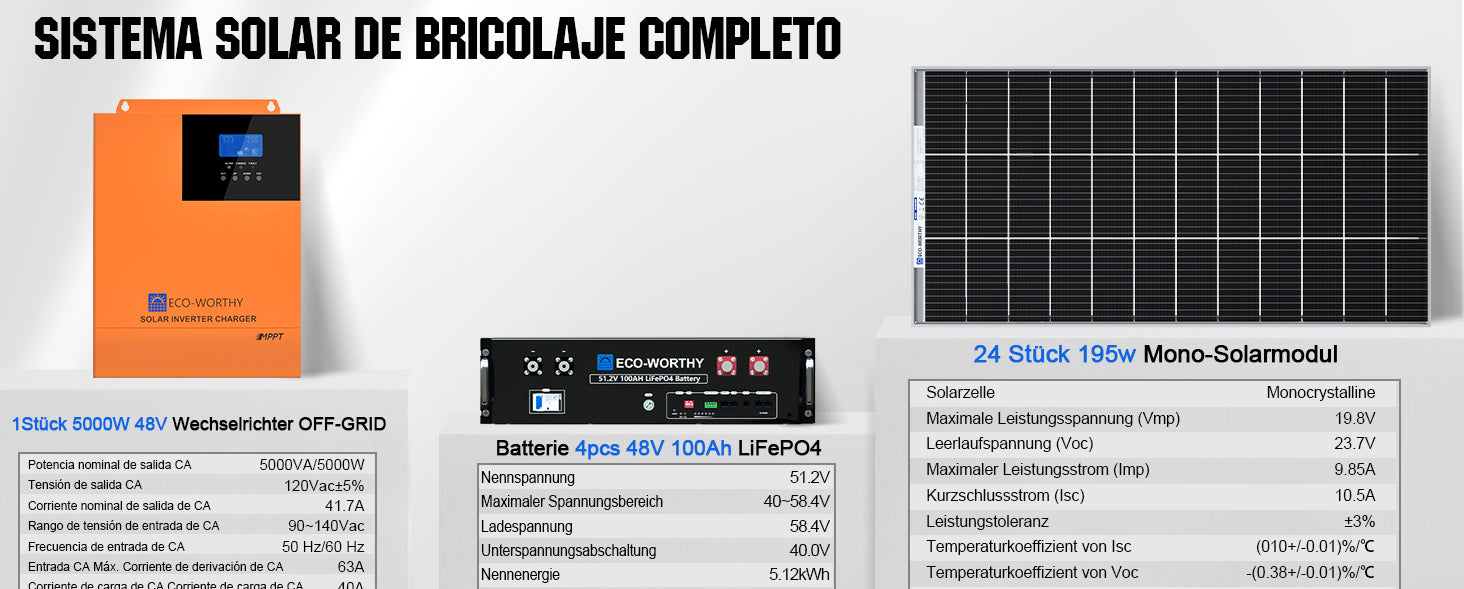

Paquete incluye
24 x paneles solares monocristalinos bifaciales de 195W

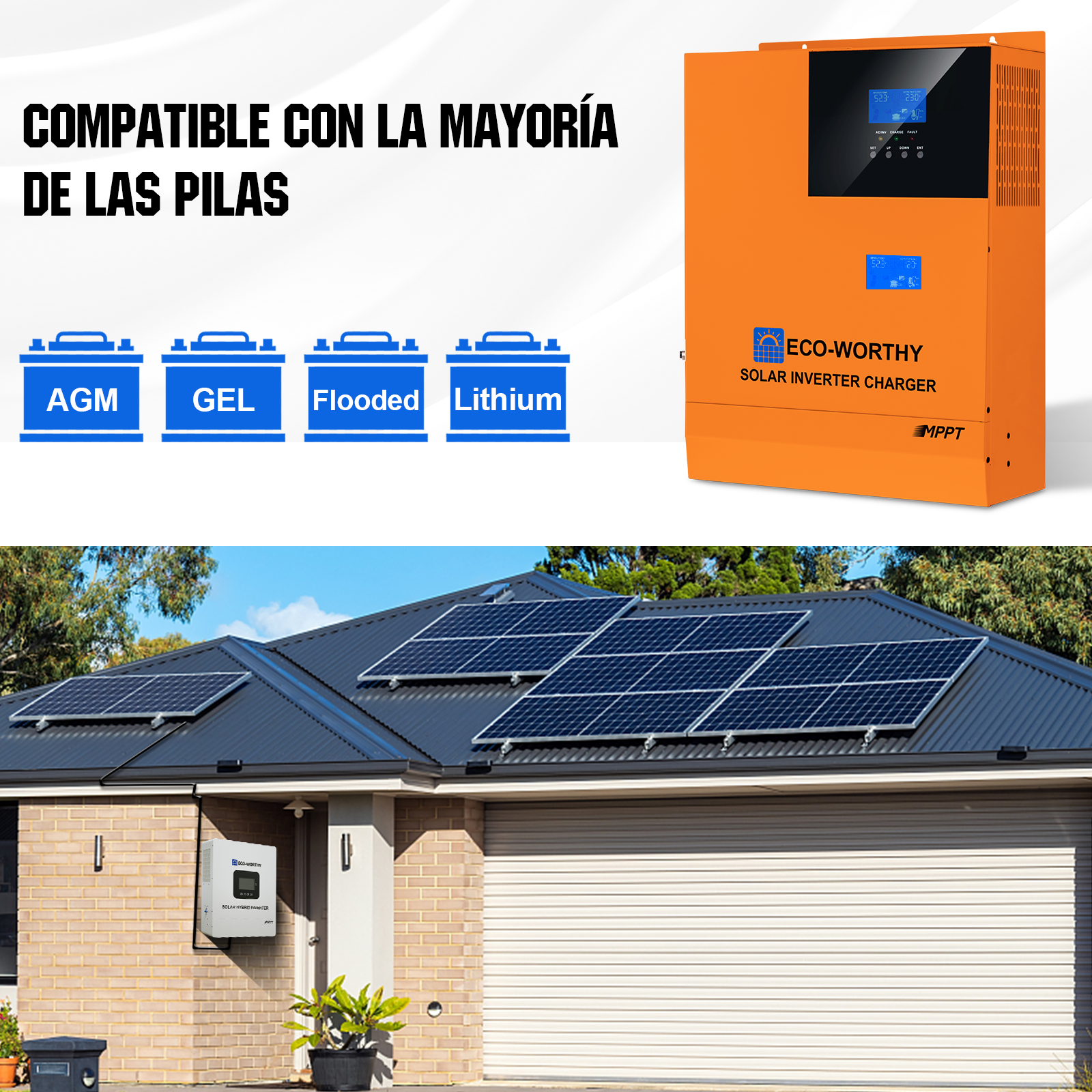

1x Inversor Cargador 5000W 48V MPPT 80A
1x Cable de extensión de 5M 12AWG con MC4
4x Cable de extensión de 5M 12AWG con MC4-MC4
1x 12AWG 1 par Solar MC4 Y Conectores de rama paralela Par MFF y FMM

Banco de baterías de litio de 20,48 kWh (opcional)：
4 baterías para rack de servidores de 48 V (51,2 V) y 100 Ah

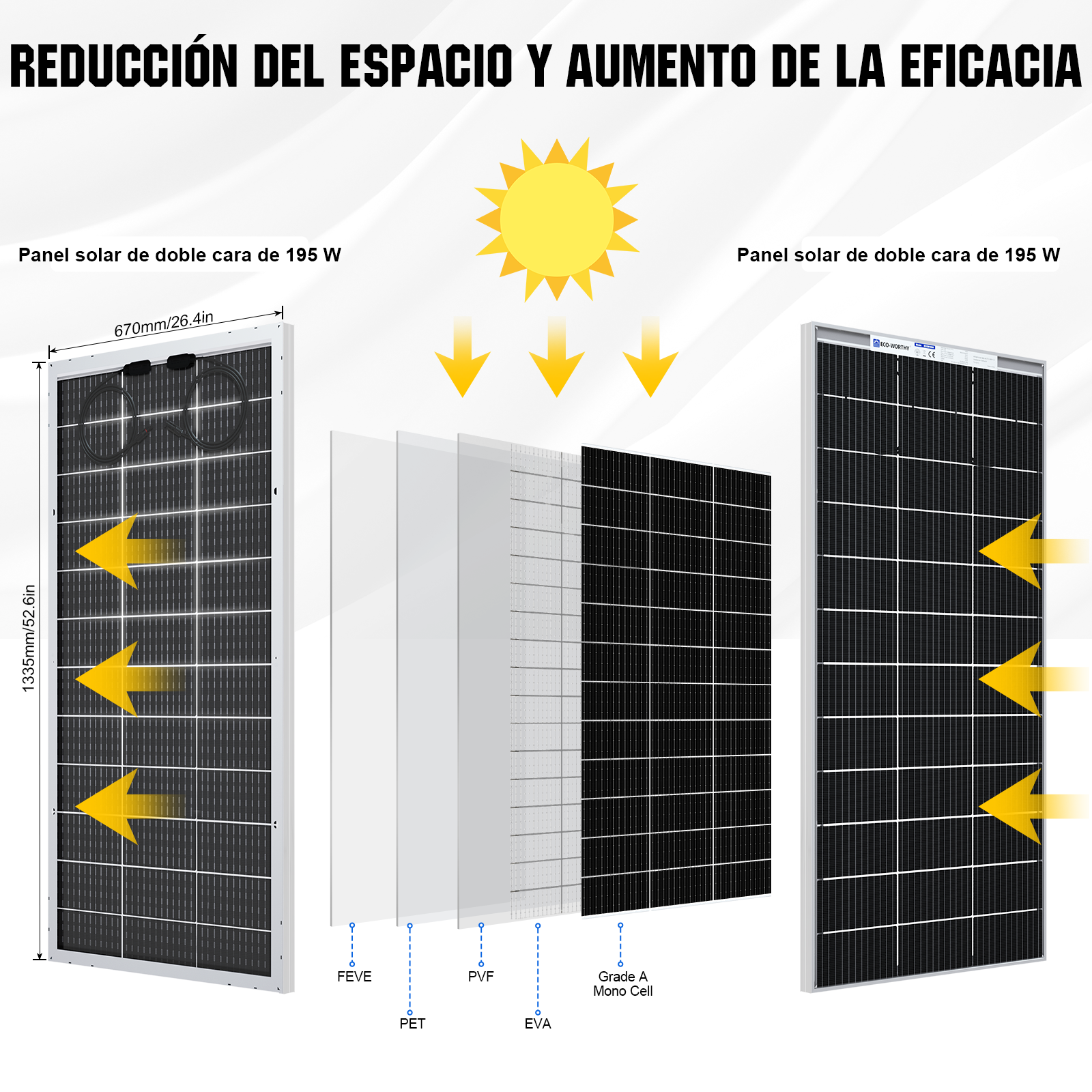

Bifacial 195W 12V Panel Solar Monocristalino

Potencia nominal: 195W	Célula solar: monocristalina
Voltaje máximo / pico (Vmp): 19.8V	Voltaje de circuito abierto (Voc): 23.7V
Corriente de cortocircuito: 10.5A	Corriente máxima: 9.85A
Tolerancia de salida: ±3%	Coeficiente templado de Isc: (010+/-0.01)%/℃
Coeficiente templado de Voc: -(0.38+/-0.01)%/℃	Rango de temperatura: －40℃～ +85℃
Marco: Marco de aleación de aluminio	Peso: 20,48 libras (9,29 kg)
Tamaño: 1335 x 670 x 35 mm (52,6 x 26,38 x 1,38 pulgadas) / MC4

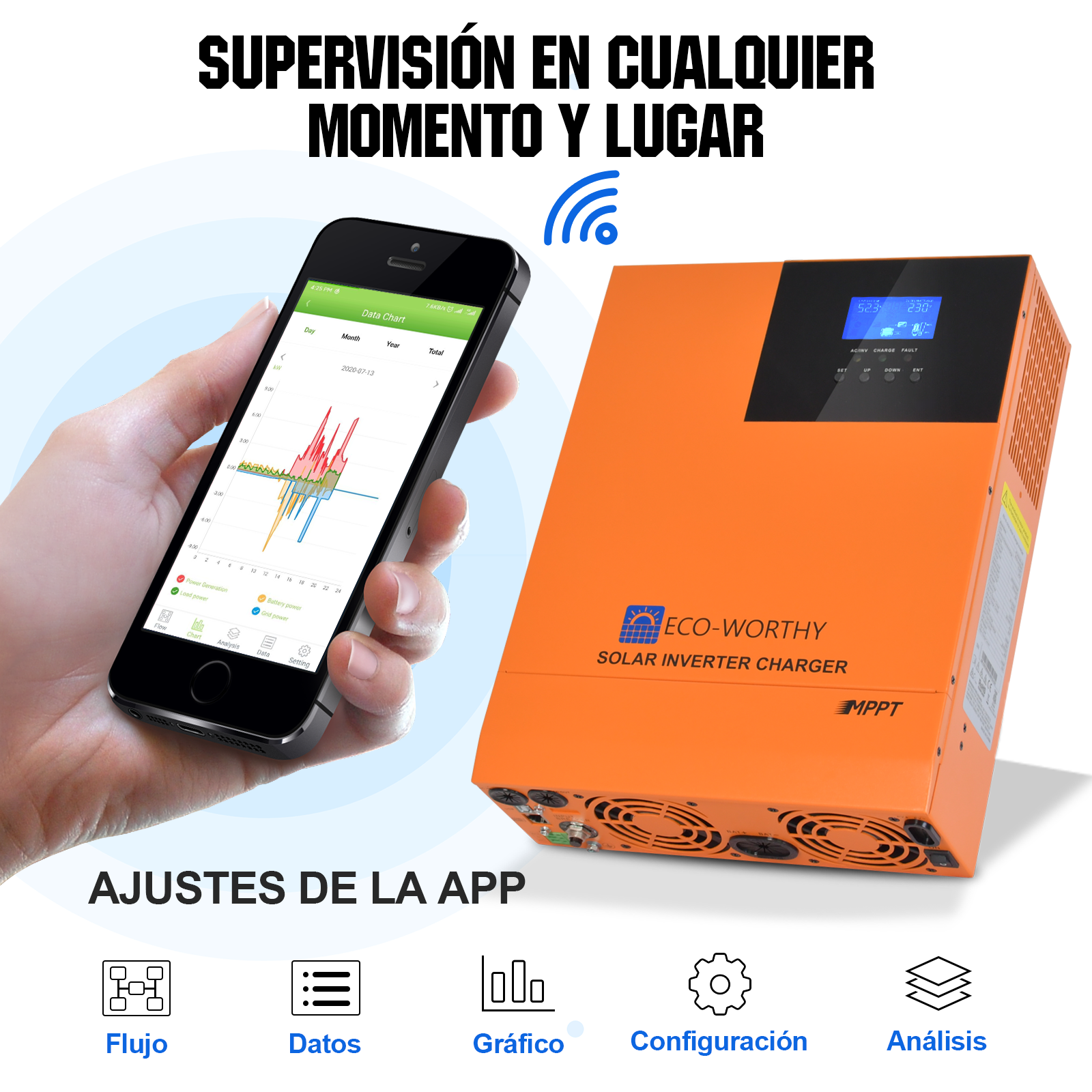

Inversor Cargador 5000W 48V MPPT 80A

Modo de carga solar
Rango de corriente de carga fotovoltaica: 0-80A	Rango de voltaje MPPT: 120-450 VDC
Potencia máxima de entrada: 4400W	Rango de voltaje de la batería: 40-60 VDC
Modo Invertir
Forma de onda de salida: onda sinusoidal pura	Potencia nominal de salida: 5000W
Salida nominal: 220VAC 50Hz/60Hz	Voltaje nominal de entrada de la batería: 48V
Potencia máxima: 6000W
Modo de carga de CA/red
Entrada nominal: (170VAC-280VAC)±2% 50Hz/60Hz(detección automática)

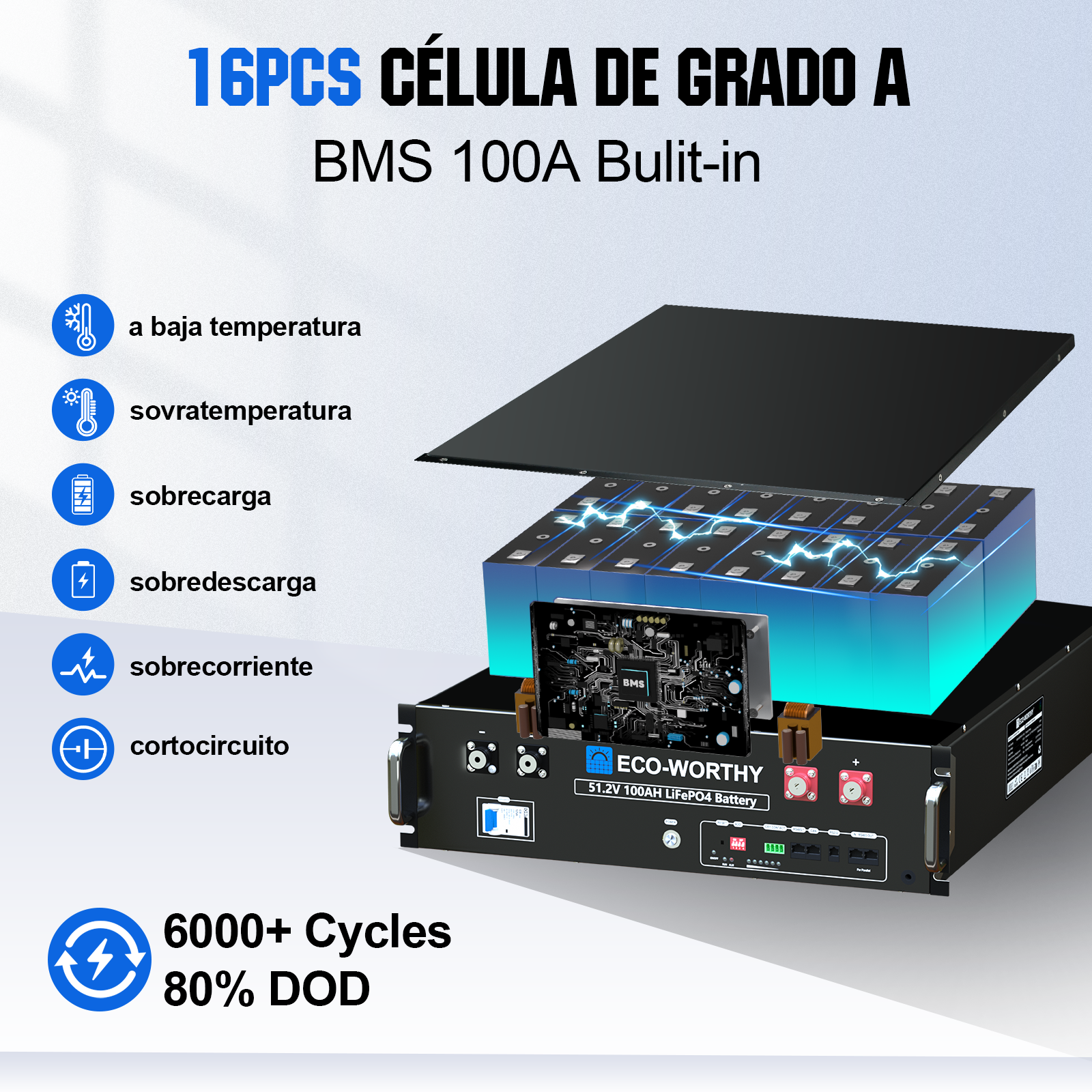

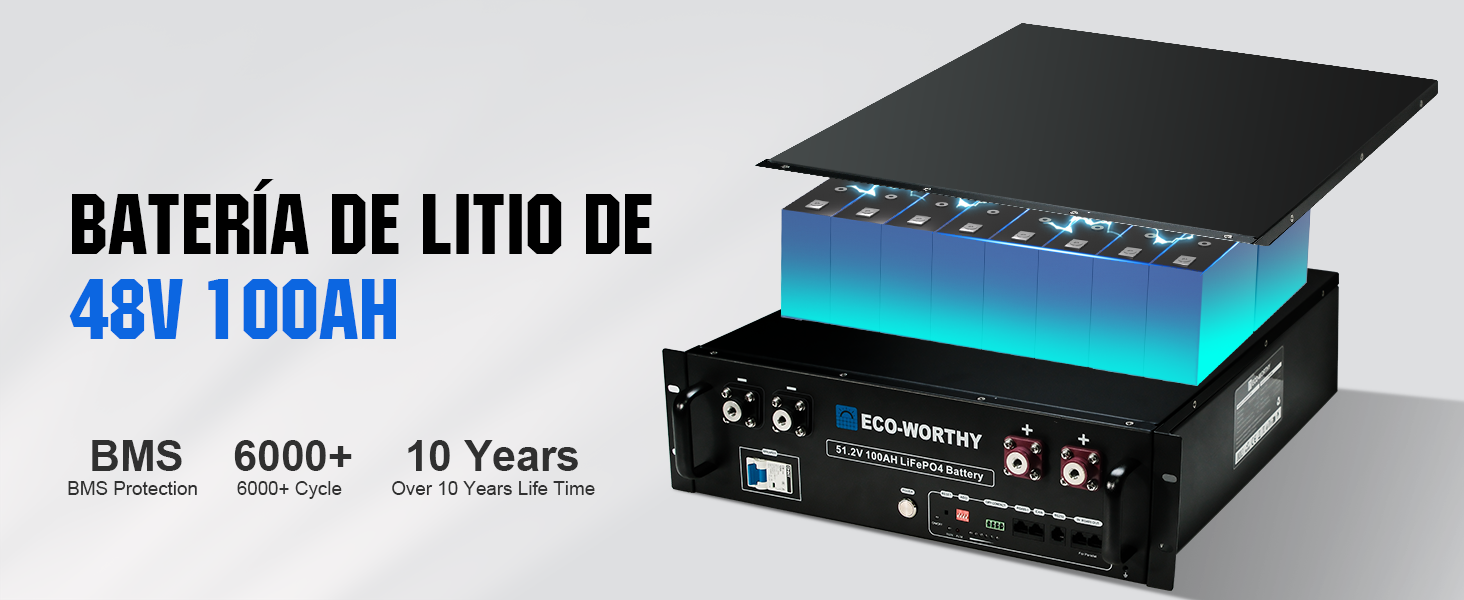

Batería para rack de servidor de 48V (51,2 V) y 100Ah

Capacidad de la batería: 100Ah	Energía de la batería: 5120Wh
Voltaje de la batería: 51.2V	Rango de voltaje: 40~58 V
Corriente máxima de carga/descarga: 100 A	Rango de temperatura de carga: 0-55 ℃
Rango de temperatura de descarga: ﹣20-55 ℃	Voltaje máximo de carga: 58,4 V
Tamaño del tornillo: M8	Tamaño de la batería: 56,1 × 48,3 × 13,3 cm
Peso de la batería: 94,8 libras	Cada batería viene con un par de cables paralelos de batería.

Cables de 16,4 pies y calibre 12AWG

Tipo de cable: Conexión de paneles solares a controladores de carga	Tensión nominal: 600/1000V
Longitud: 5 metros (16 pies)	Conductor: Alambre de cobre estañado
AWG: 12	Área transversal normal del conductor (mm2): 4
Impermeable: Protección IP 65	Temperatura: -40 °F a +185 °F
Conector: MC4	Peso: 0,742 kg
