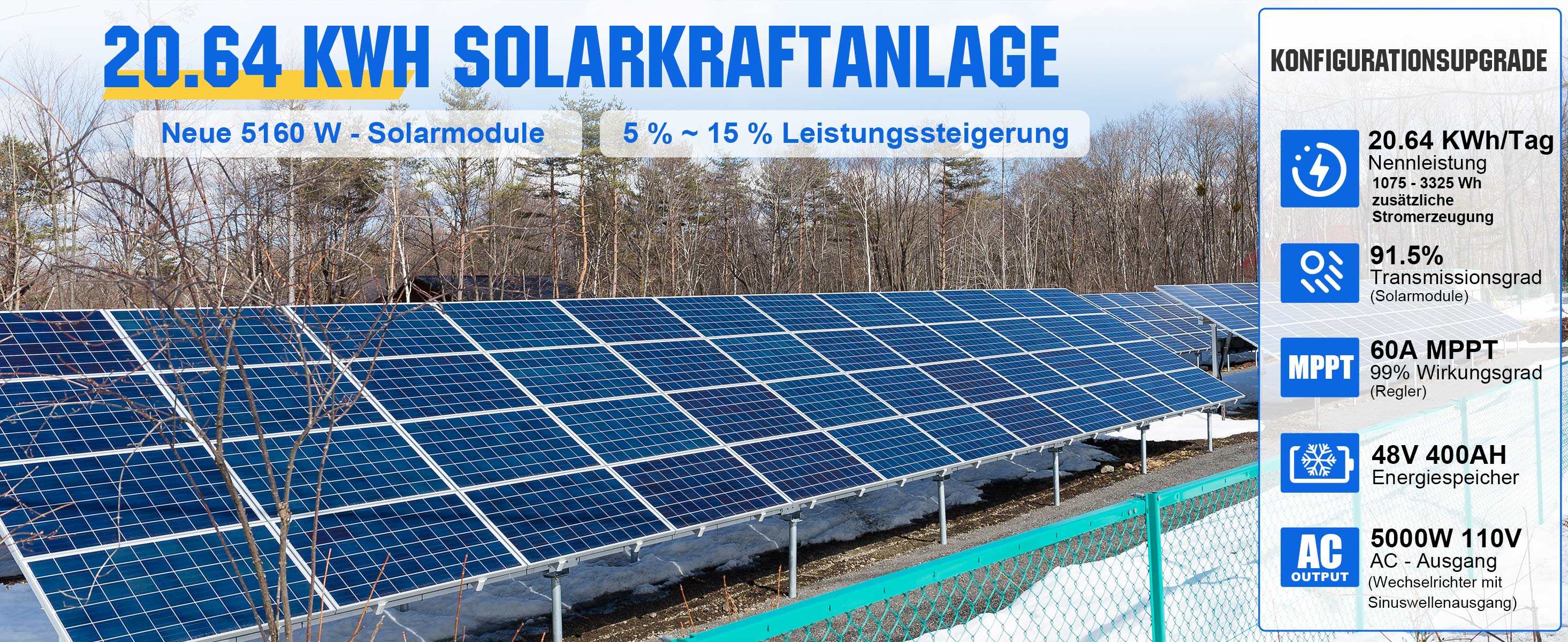

Kit solar MPPT completo para autoconsumo fuera de la red 48V 5160W (12x 430W)

Si prioriza la eficiencia, la fiabilidad y la asequibilidad, el kit solar MPPT expandible ECO-WORTHY de 5160 W y 48 V es la opción ideal. Este módulo solar monocristalino Solarmodul de 430 W, totalmente negro, es totalmente resistente a la intemperie y está fabricado con componentes de alta calidad. La batería de litio-hierro-fosfato de 48 V y 100 Ah ofrece más de 15 000 ciclos, una vida útil de más de 10 años y una garantía de 10 años. Esto garantiza una capacidad de almacenamiento estable y segura, ideal para el uso diario o en caso de un corte de electricidad. Inversor todo en uno: Al combinar un controlador de carga solar MPPT de 80 A/48 V y un inversor de onda sinusoidal pura de 5000 W en una unidad compacta, se beneficia de la energía estable del sol y de la red eléctrica, independientemente de las condiciones. El kit solar MPPT ECO-WORTHY de 4680 W y 48 V es adecuado para una amplia gama de aplicaciones, incluyendo residenciales, de pequeña escala y más. Sea cual sea el uso que le vaya a dar, puede estar seguro de que está adquiriendo un sistema de alta calidad. Si tiene alguna pregunta sobre este producto, contáctenos en Info@eco-worthy.com.

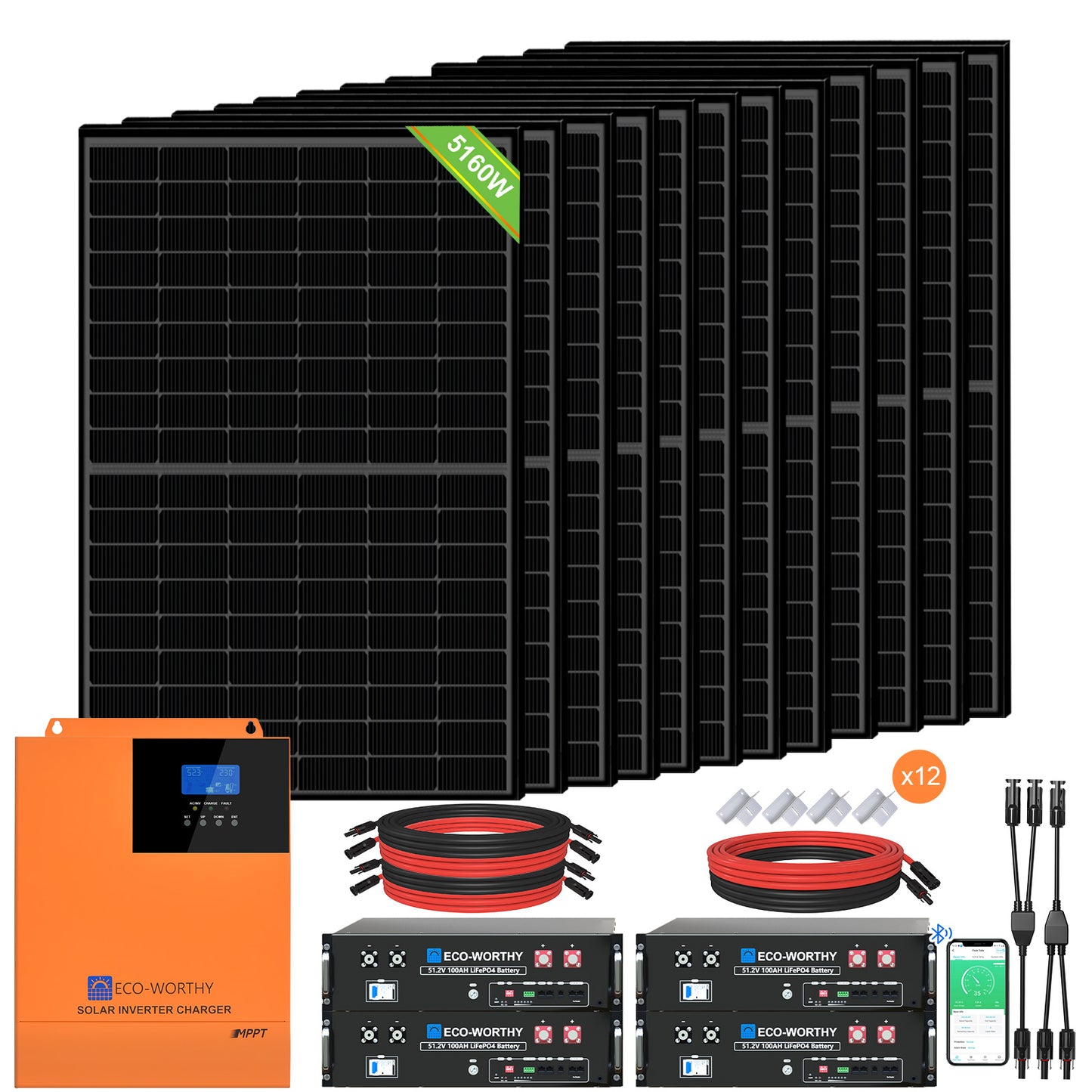

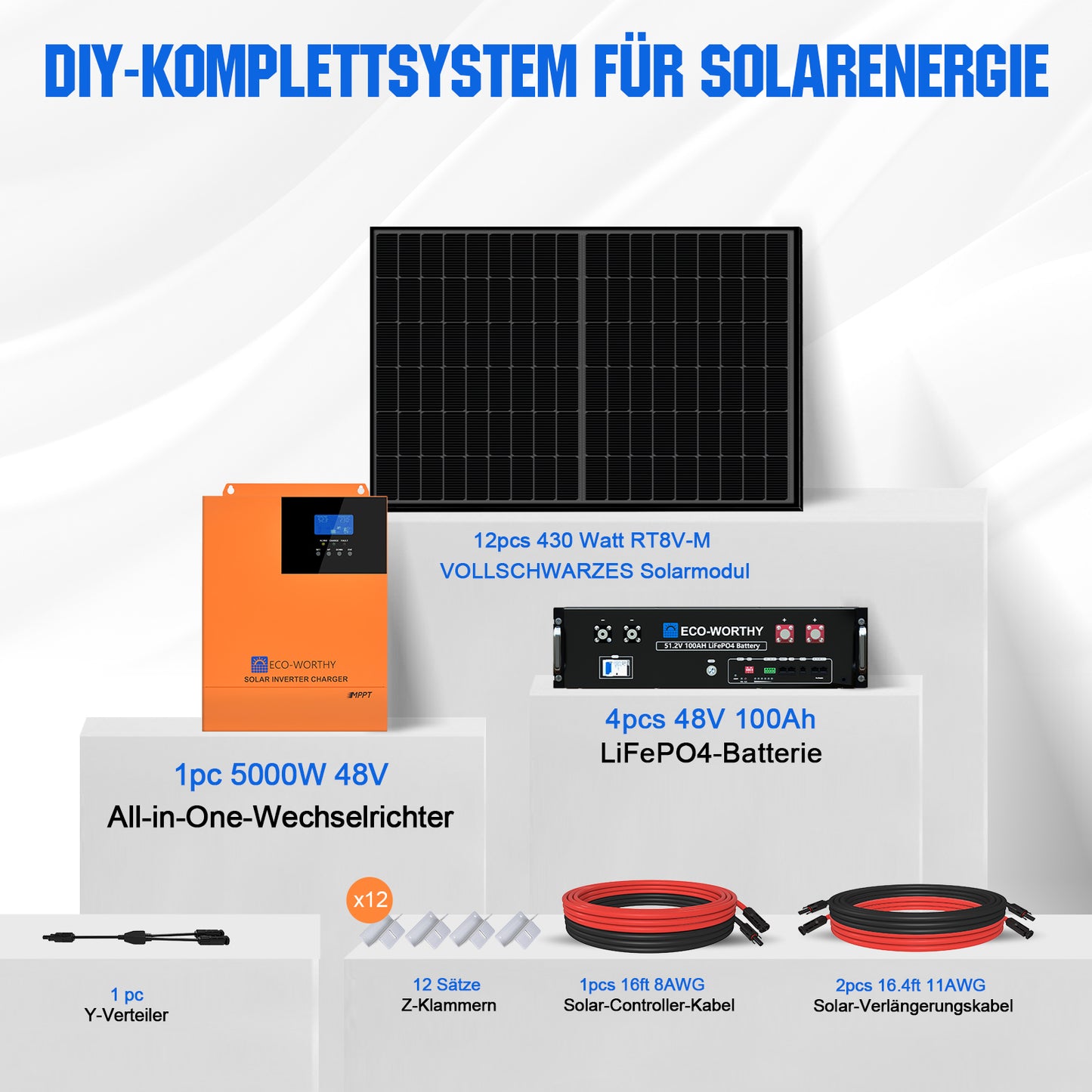

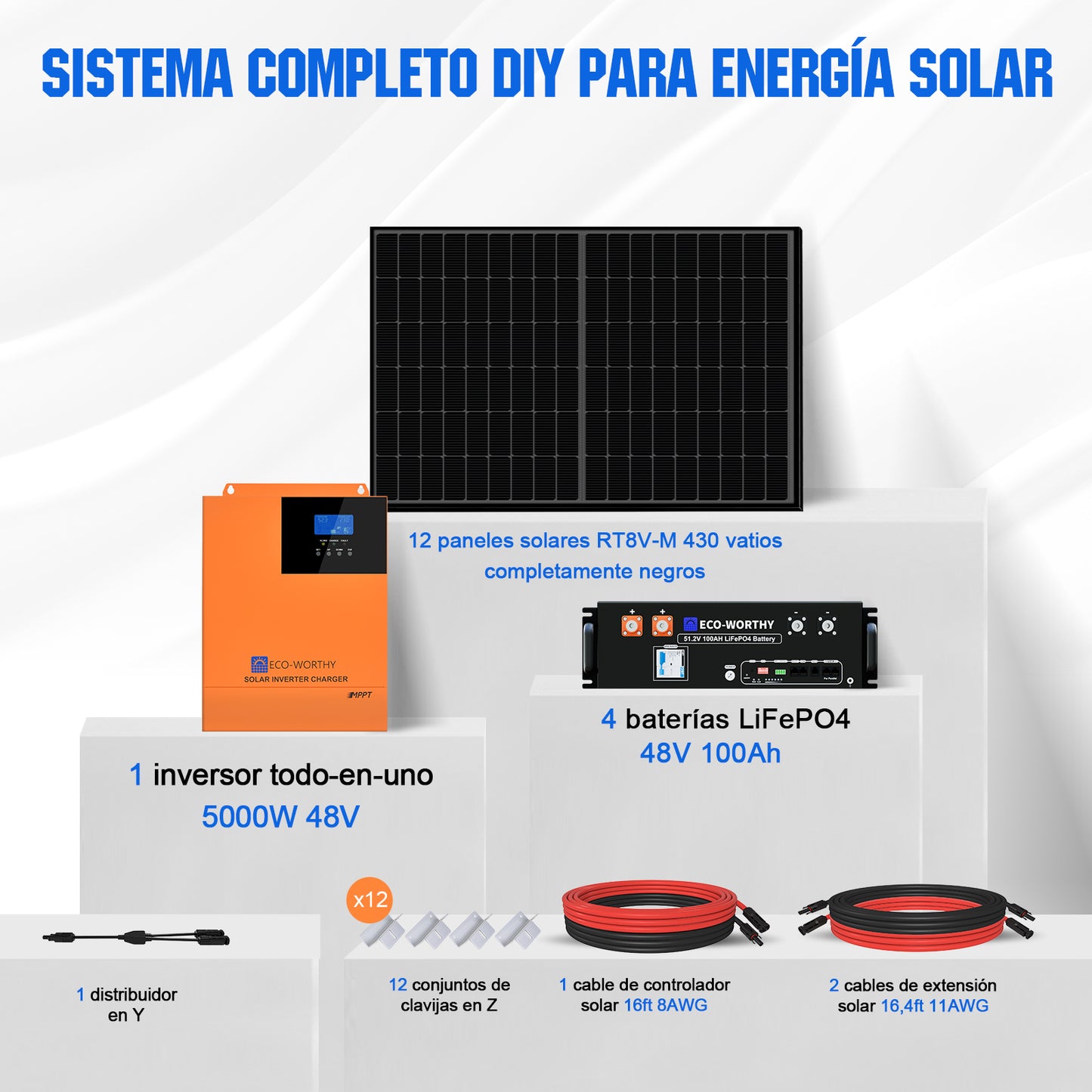

Paquete incluye
12 x Módulo solar monocristalino completamente negro de 430W
1 x Inversor Cargador 5000W 48V MPPT 80A
1 x Cable de extensión de 5M 12AWG con MC4
2 x Cable de extensión de 5M 12AWG con MC4-MC4
12 x juegos de soportes en Z

Banco de baterías de litio de 20,48 kWh：
4 baterías para rack de servidores de 48 V (51,2 V) y 100 Ah

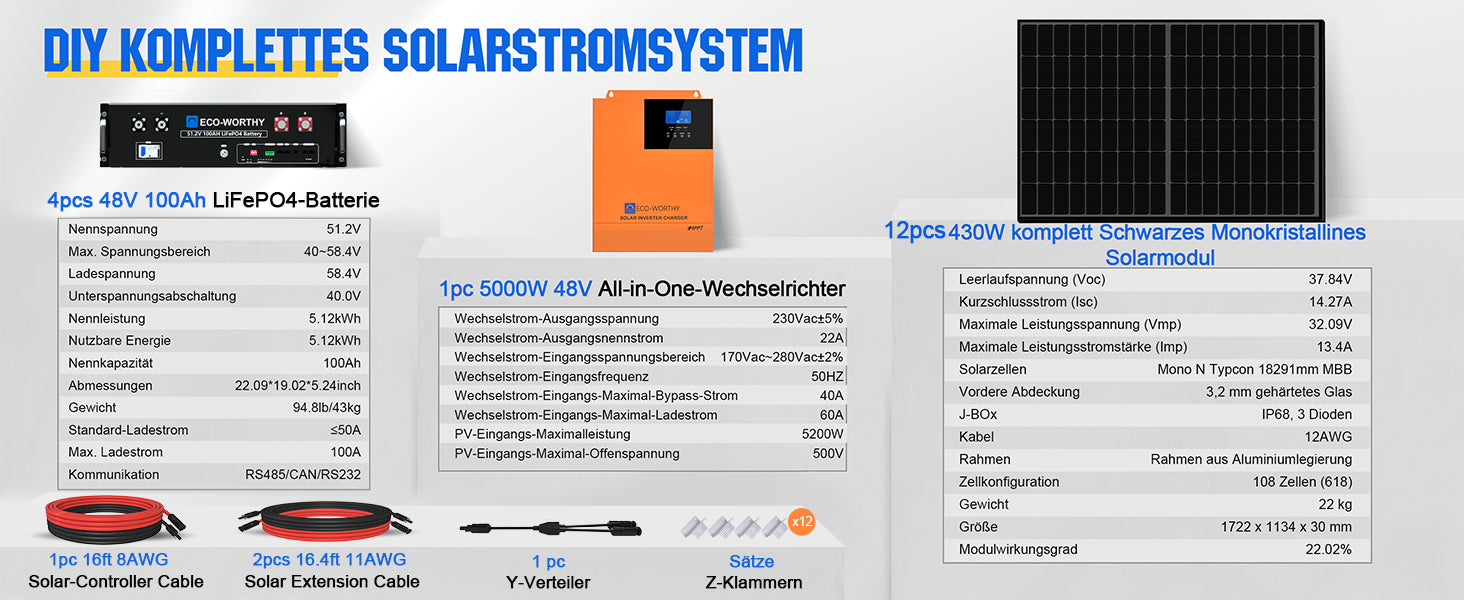

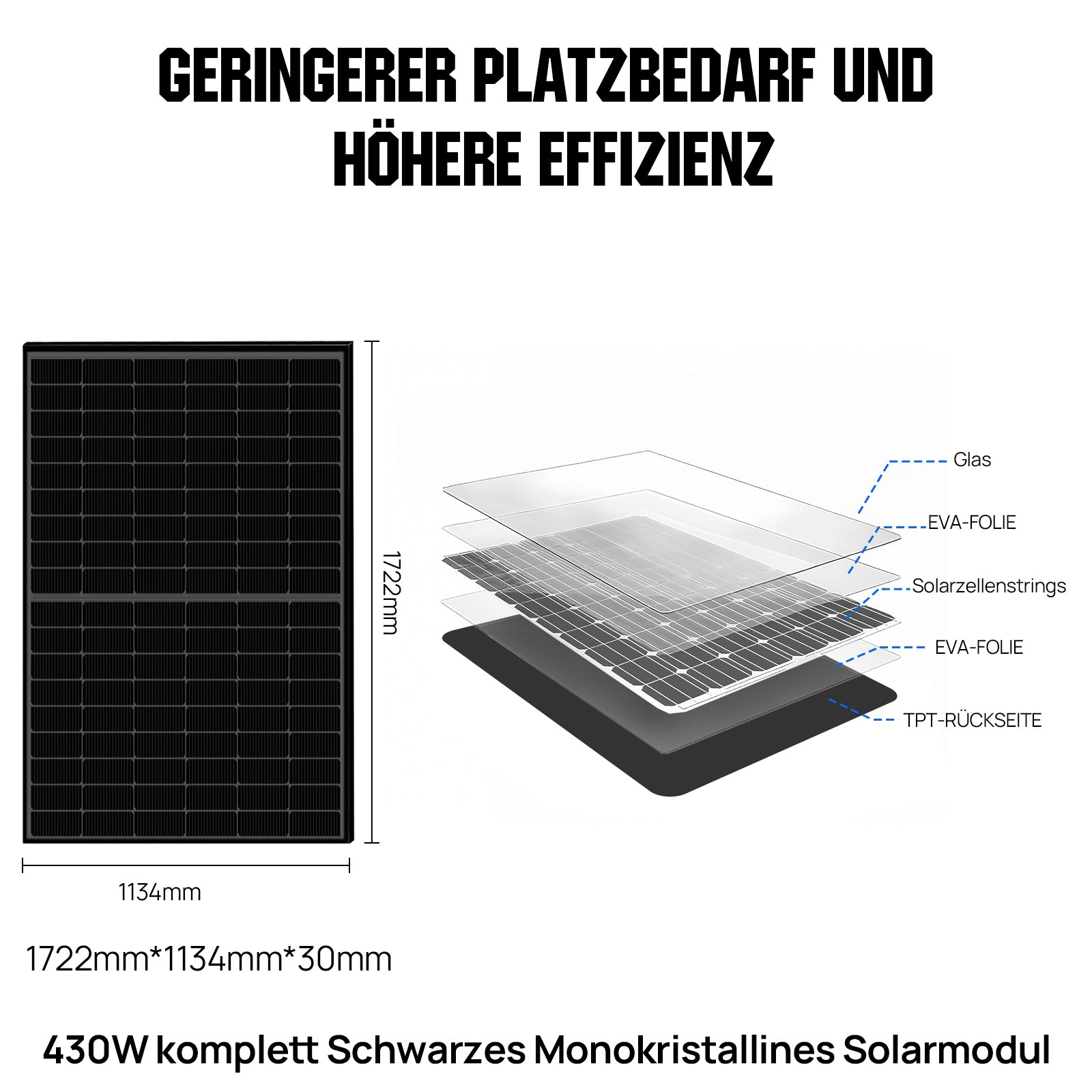

Módulo solar monocristalino totalmente negro de 430W

Potencia nominal: 430W	Voltaje de circuito abierto (Voc): 37.84V
Corriente de cortocircuito (Isc): 14.27A	Voltaje máximo / pico (Vmp): 32.09V
Corriente máxima de potencia (Imp): 13.4 A	Células solares: Mono N Typcon 182*91mm MBB
Cubierta frontal: vidrio templado de 3,2 mm	Caja de conexiones: IP68, 3 diodos
Cable: 12AWG	Marco: aleación de aluminio
Configuración de celda: 108 celdas (6*18)	Peso: 22kg
Tamaño: 1722 x 1134 x 30 mm	Eficiencia del módulo: 22,02%

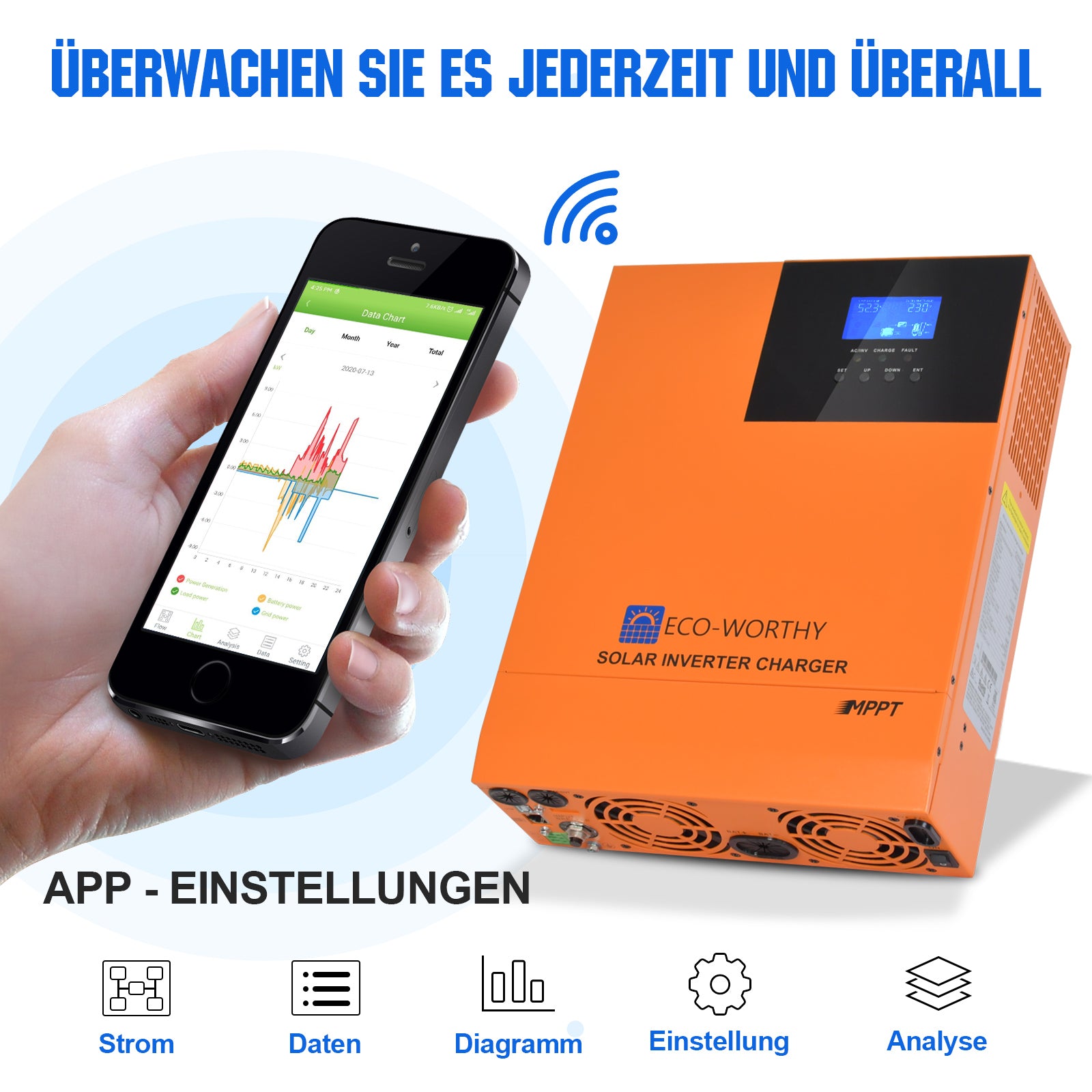

Inversor Cargador 5000W 48V MPPT 80A

Modo de carga solar
Rango de corriente de carga fotovoltaica: 0-80A	Rango de voltaje MPPT: 120-450 VDC
Potencia máxima de entrada: 4400W	Rango de voltaje de la batería: 40-60 VDC
Modo Invertir
Forma de onda de salida: onda sinusoidal pura	Potencia nominal de salida: 5000W
Salida nominal: 220VAC 50Hz/60Hz	Voltaje nominal de entrada de la batería: 48V
Potencia máxima: 6000W
Modo de carga de CA/red
Entrada nominal: (170VAC-280VAC)±2% 50Hz/60Hz(detección automática)

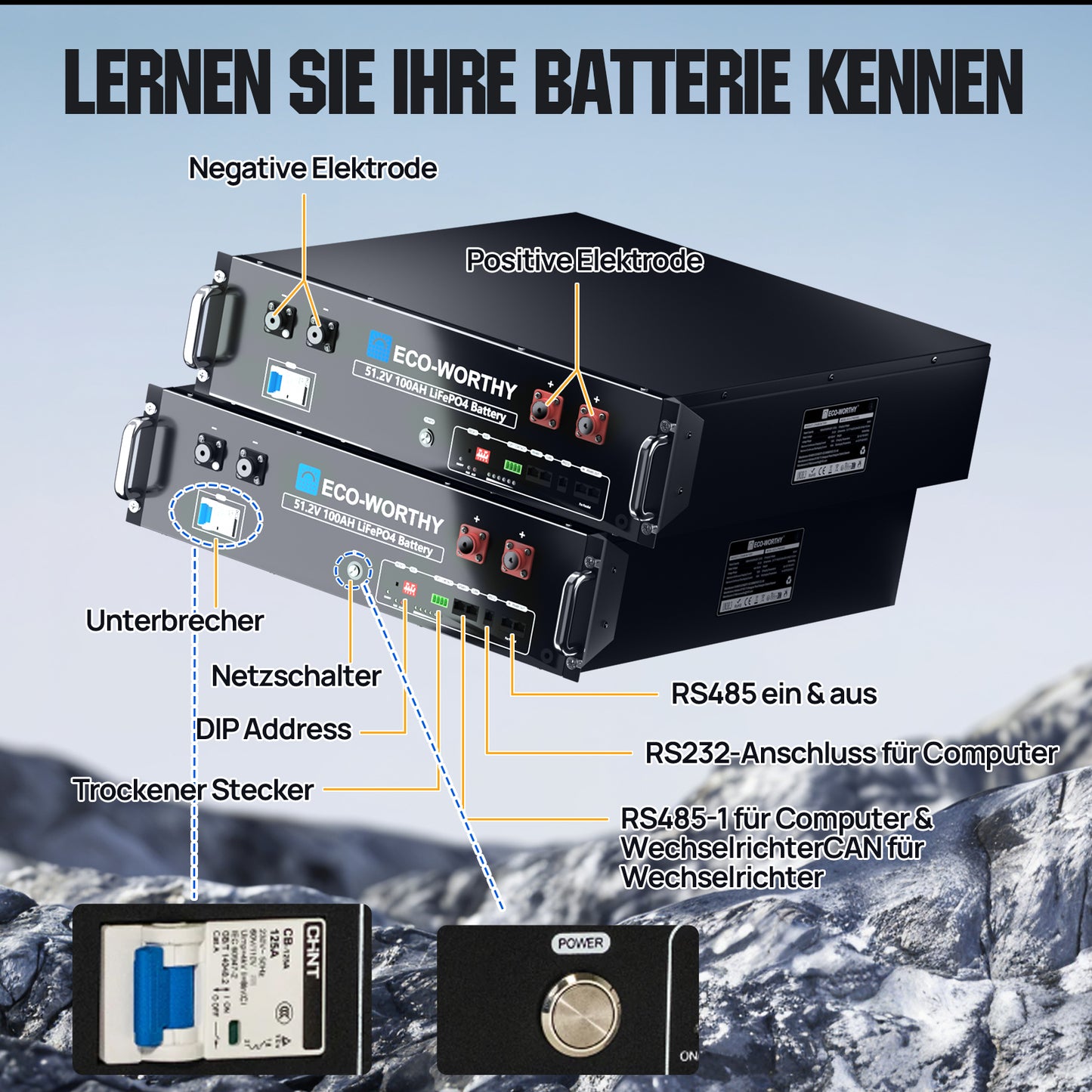

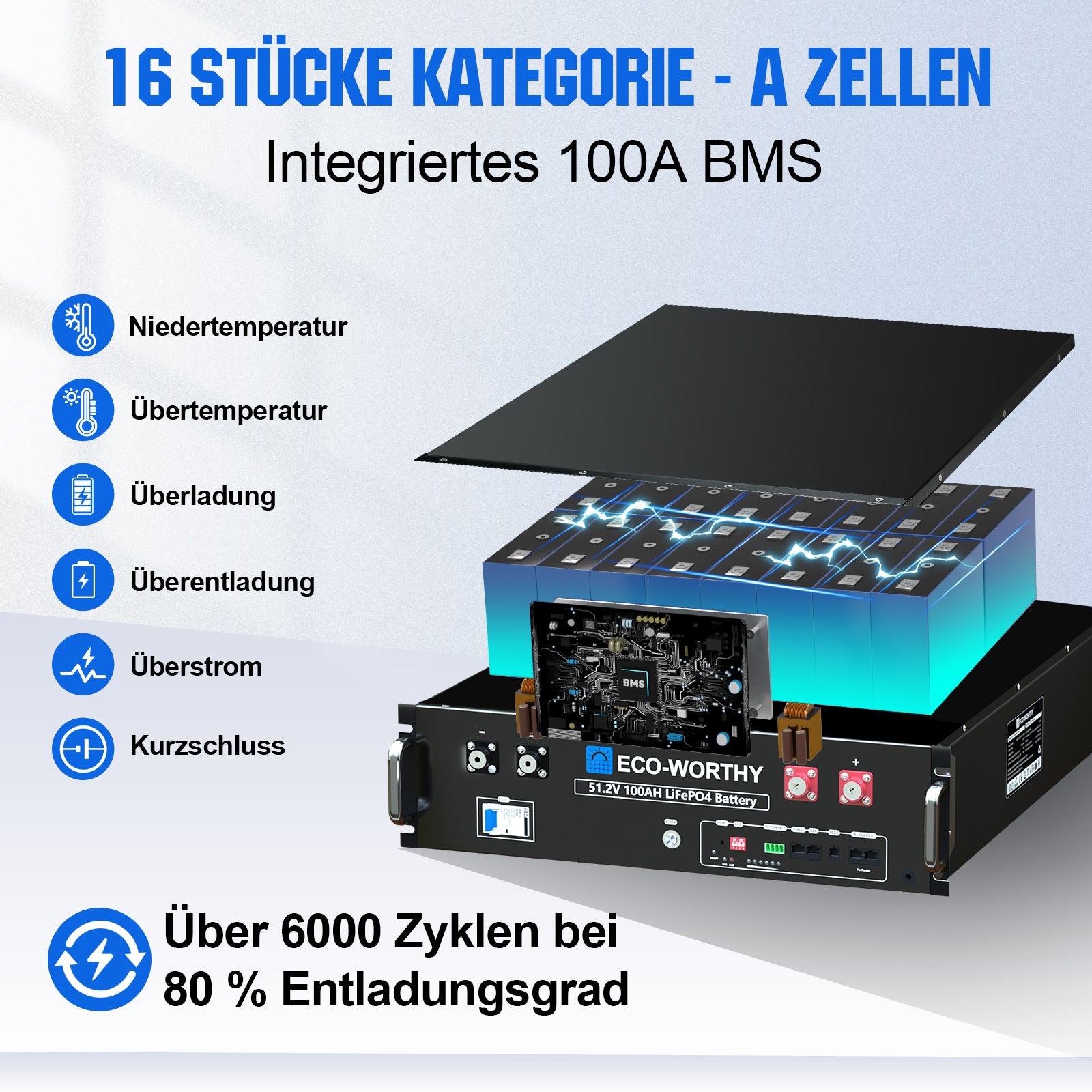

Batería para rack de servidor de 48V (51,2 V) y 100Ah

Capacidad de la batería: 100Ah	Energía de la batería: 5120Wh
Voltaje de la batería: 51.2V	Rango de voltaje: 40~58 V
Corriente máxima de carga/descarga: 100 A	Rango de temperatura de carga: 0-55 ℃
Rango de temperatura de descarga: ﹣20-55 ℃	Voltaje máximo de carga: 58,4 V
Tamaño del tornillo: M8	Tamaño de la batería: 56,1 × 48,3 × 13,3 cm
Peso de la batería: 94,8 libras	Cada batería viene con un par de cables paralelos de batería.

Cables de 16,4 pies y calibre 12AWG

Tipo de cable: Conexión de paneles solares a controladores de carga	Tensión nominal: 600/1000V
Longitud: 5 metros (16 pies)	Conductor: Alambre de cobre estañado
AWG: 12	Área transversal normal del conductor (mm2): 4
Impermeable: Protección IP 65	Temperatura: -40 °F a +185 °F
Conector: MC4	Peso: 0,742 kg
