Diseñado con componentes de alta calidad y primeras marcas, el ECO-WORTHY Kit Solar Aislada de 130W 260W 390W 520W te proporciona energía suficiente para cubrir tus necesidades de consumo.
Este kit completo incluye Panel solar flexible 130W 12V alto rendimiento, Regulador solar 30A/60A, Inversor de onda sinusoidal pura, Batería Litio y todos los elementos fotovoltaicos necesarios.
Con Batería Litio LiFePO4 de ECO-WORTHY con más de 3000 ciclos con profundidades de descarga del 95%, paneles solares con garantía de 25 años.
Este kit es ideal tanto como módulo solar para casas móviles como especialmente para uso marino en yates de vela, yates a motor y otros tipos de embarcaciones.
Paquete incluye

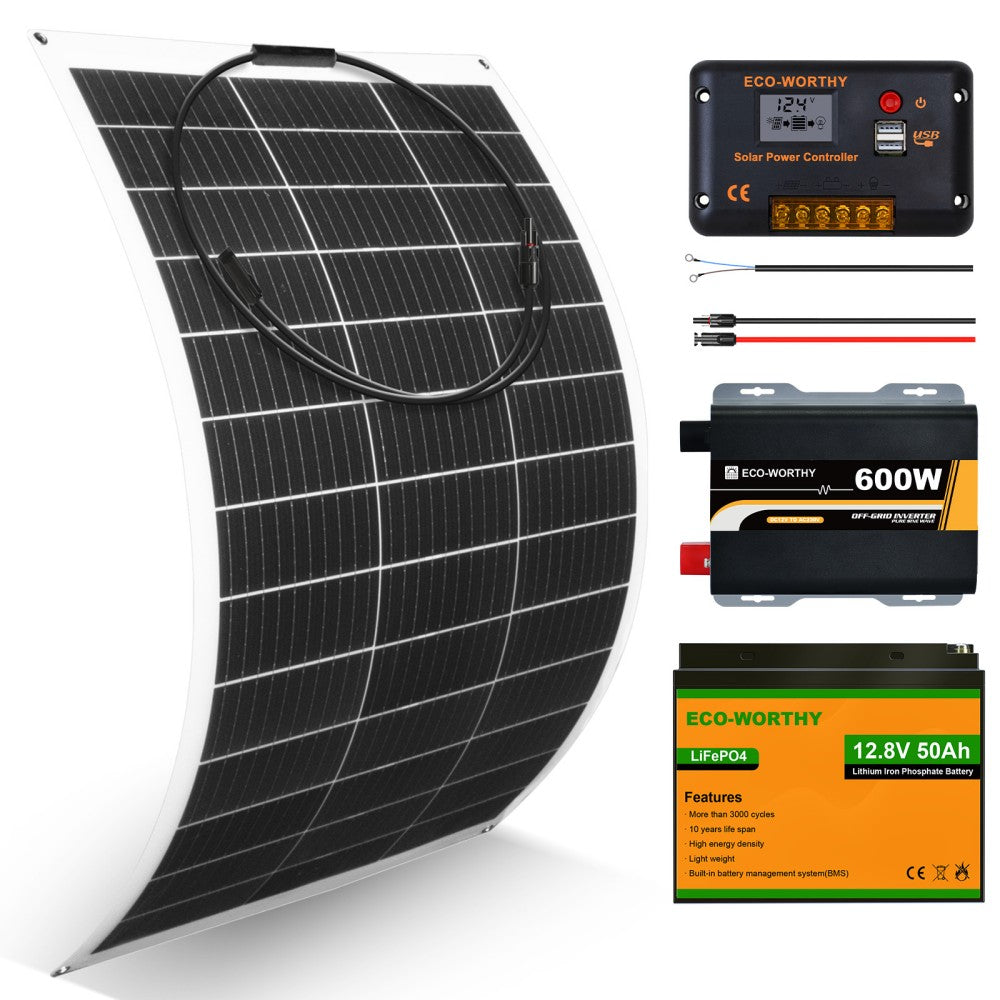

130W (1-Panel) 12V Kit Solar Completo
1x Panel solar mono flexible de 130W
1x Regulador solar 30A PWM
1x Cable de extensión de 5M 4 mm² con MC4
1x Cable de bandeja de 1.5M
1x Inversor de onda sinusoidal pura de 600W 12V-220V
1x Batería de litio LiFePO4 de 12V 50Ah

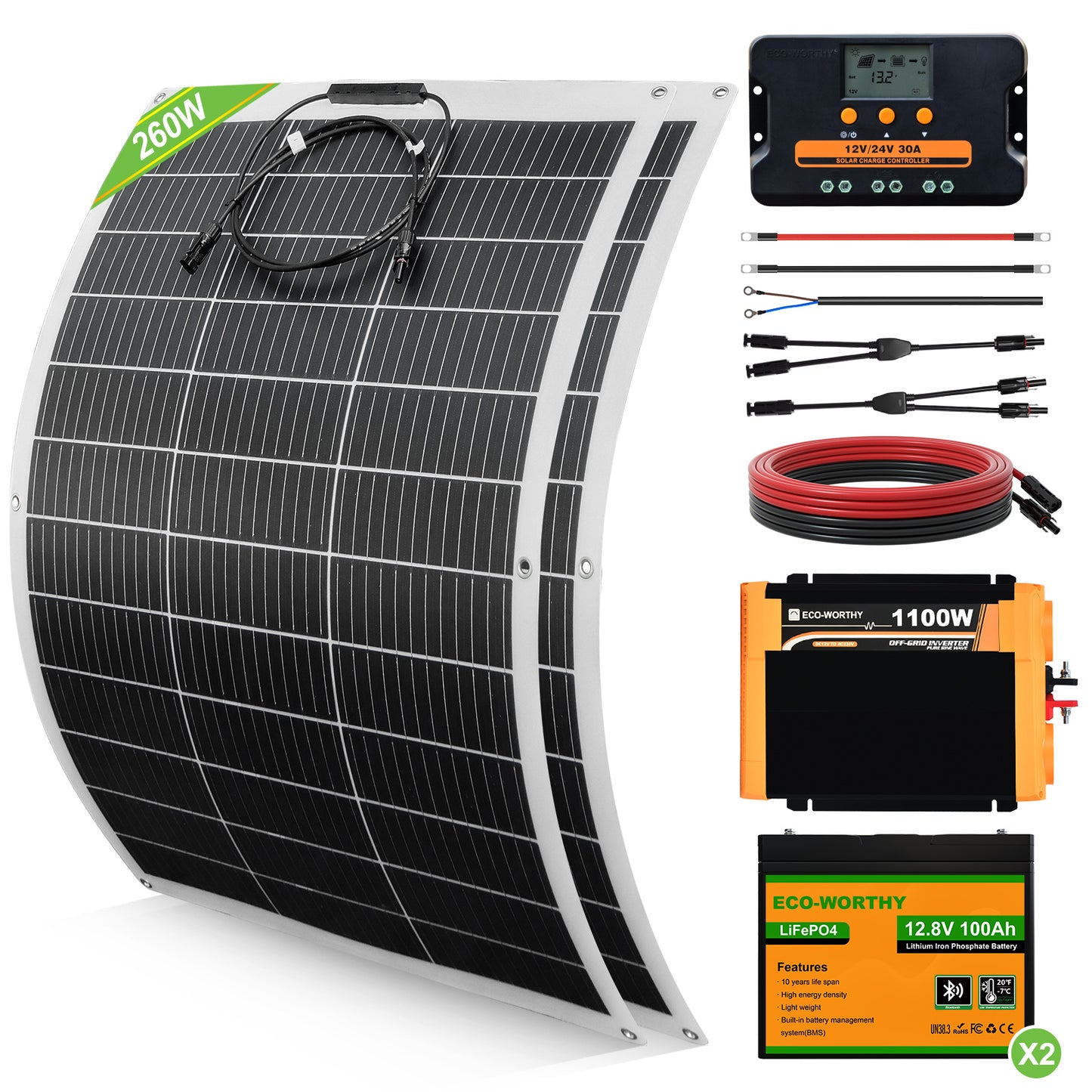

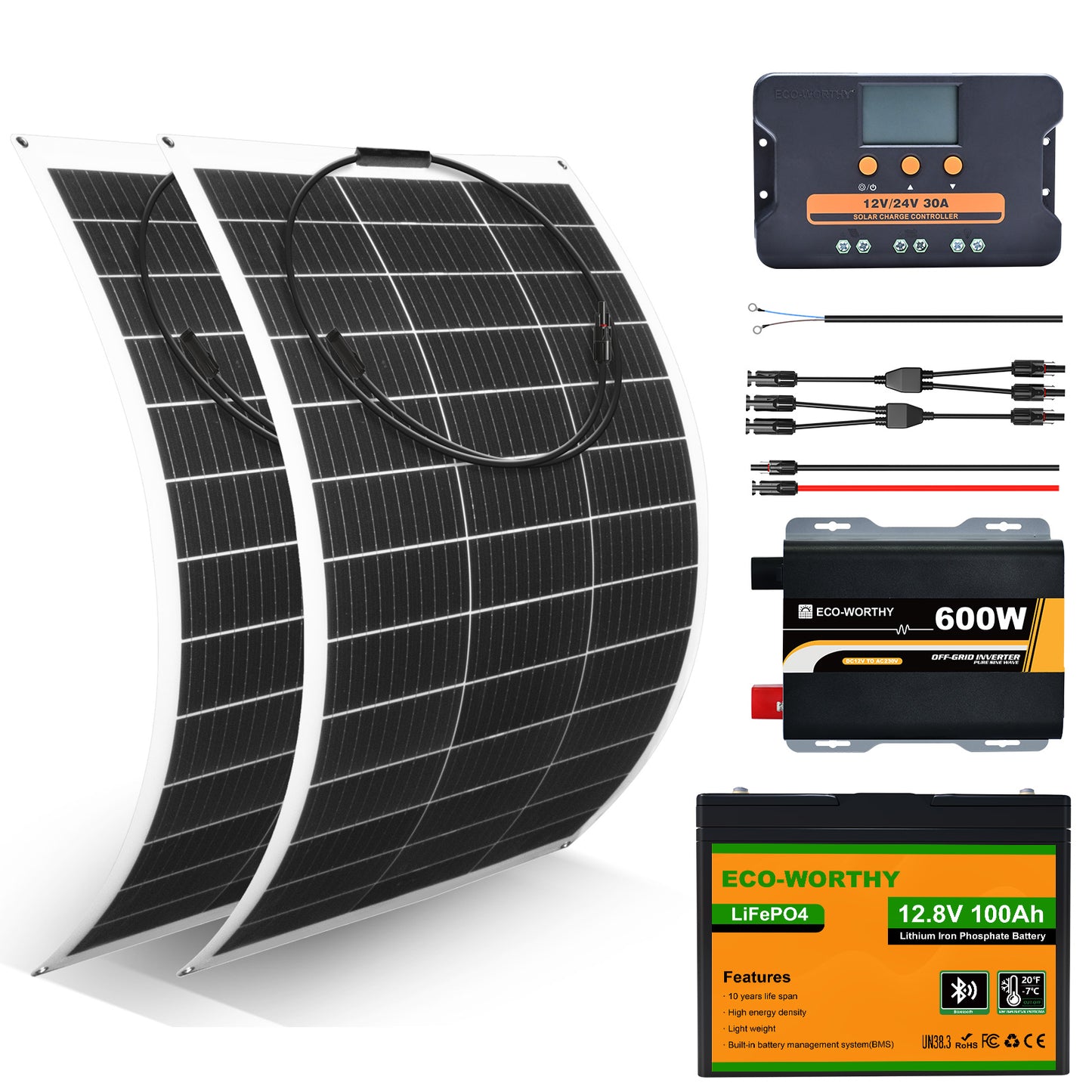

260W (2-Panel) 12V Kit Solar Completo
2x Panel solar mono flexible de 130W
1x Regulador solar 30A PWM 2.0
1x Cable de extensión de 5M 4 mm² con MC4
1x Conector Y MC4
1x Cable de bandeja de 1.5M
1x Inversor de onda sinusoidal pura de 600W 12V-220V
1x Batería de litio LiFePO4 de 12V 100Ah con bluetooth
390W (3-Panel) 12V Kit Solar Completo
3x Panel solar mono flexible de 130W
1x Regulador solar 40A MPPT
1x Cable de extensión de 5M 4 mm² con MC4
2x Conector Y MC4
1x Cable de bandeja de 1.5M
1x Inversor de onda sinusoidal pura de 1100W 12V-220V
1x Batería de litio LiFePO4 de 12V 100Ah

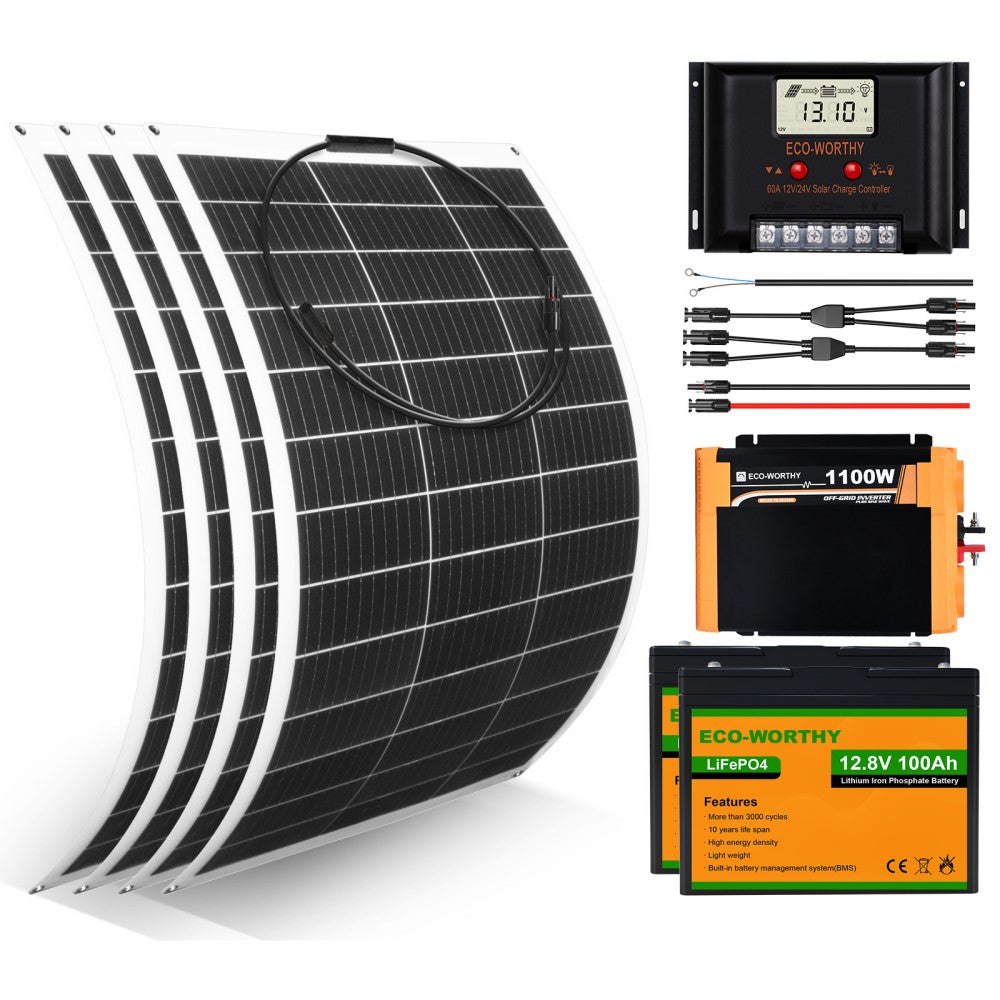

520W (4-Panel) 12V Kit Solar Completo
4x Panel solar mono flexible de 130W
1x Regulador solar 60A PWM
1x Cable de extensión de 5M 4 mm² con MC4
3x Conector Y MC4
1x Cable de bandeja de 1.5M
1x Inversor de onda sinusoidal pura de 1100W 12V-220V
2x Batería de litio LiFePO4 de 12V 100Ah

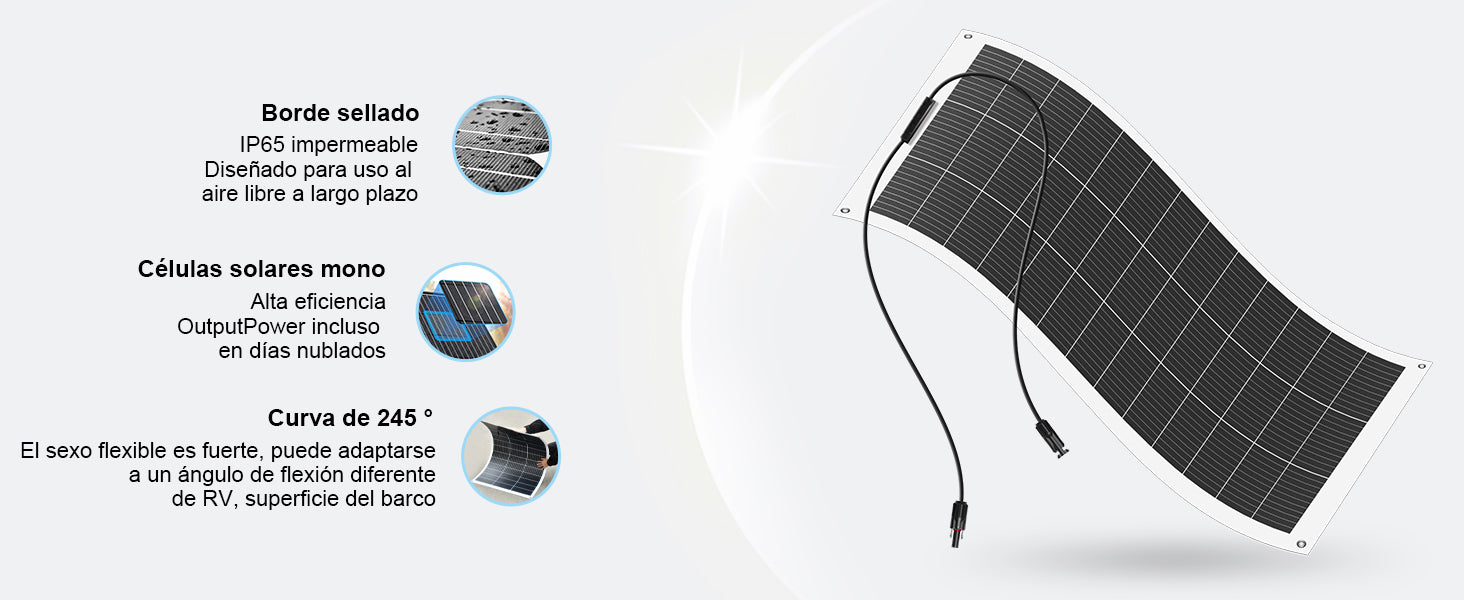

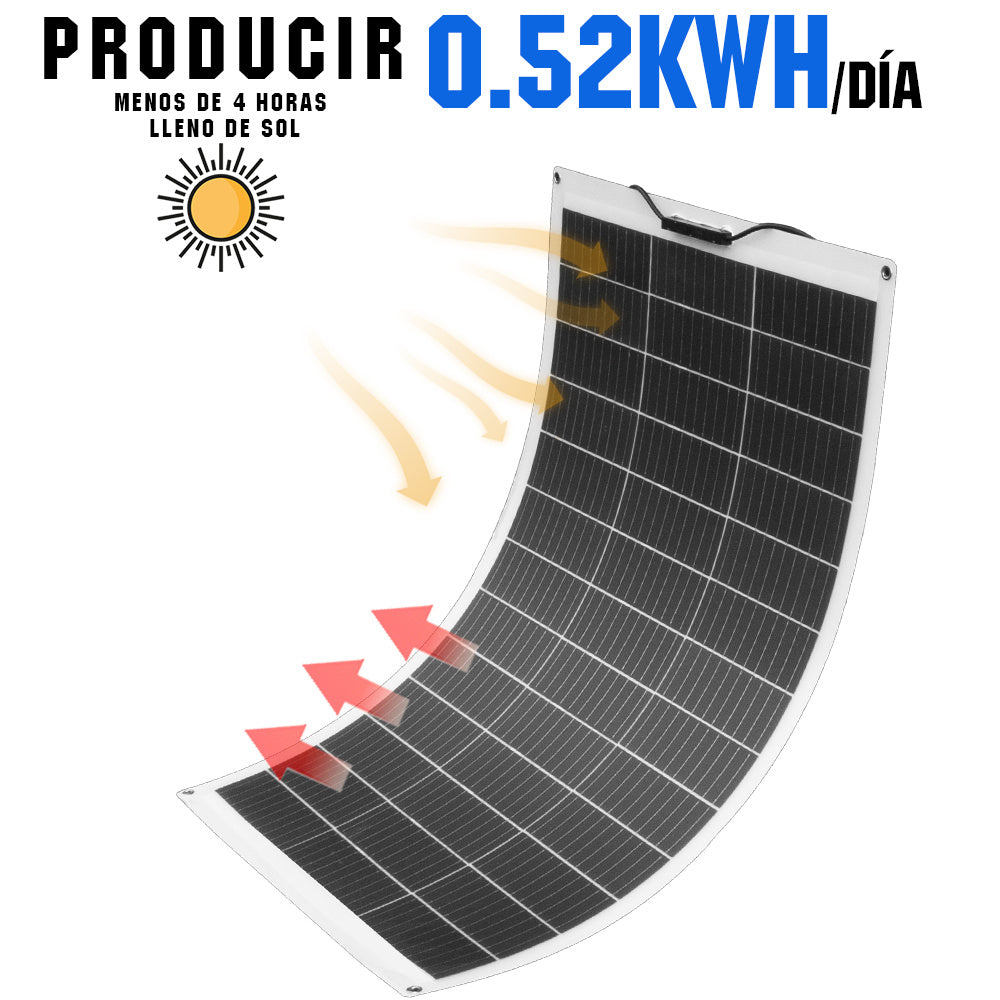

130W 12V Panel solar mono flexible
| Potencia nominal: 130W |
Célula solar: monocristalina |
| Voltaje máximo / pico (Vmp): 21.10V |
Voltaje de circuito abierto (Voc): 24.50V |
| Corriente de cortocircuito: 6.50A |
Corriente máxima: 6.16A |
| Tolerancia de salida: ±3% |
Coeficiente templado de Isc: (010+/-0.01)%/°C |
| Coeficiente templado de Voc: -(0.38+/-0.01)%/°C |
Rango de temperatura: -40°C~ +85°C |
| Longitud del cable de extensión: 90cm (2.95ft) |
Tamaño del cable de extensión: conector 4mm² (11AWG) / MC4 |
| Peso: 2.0 kg |

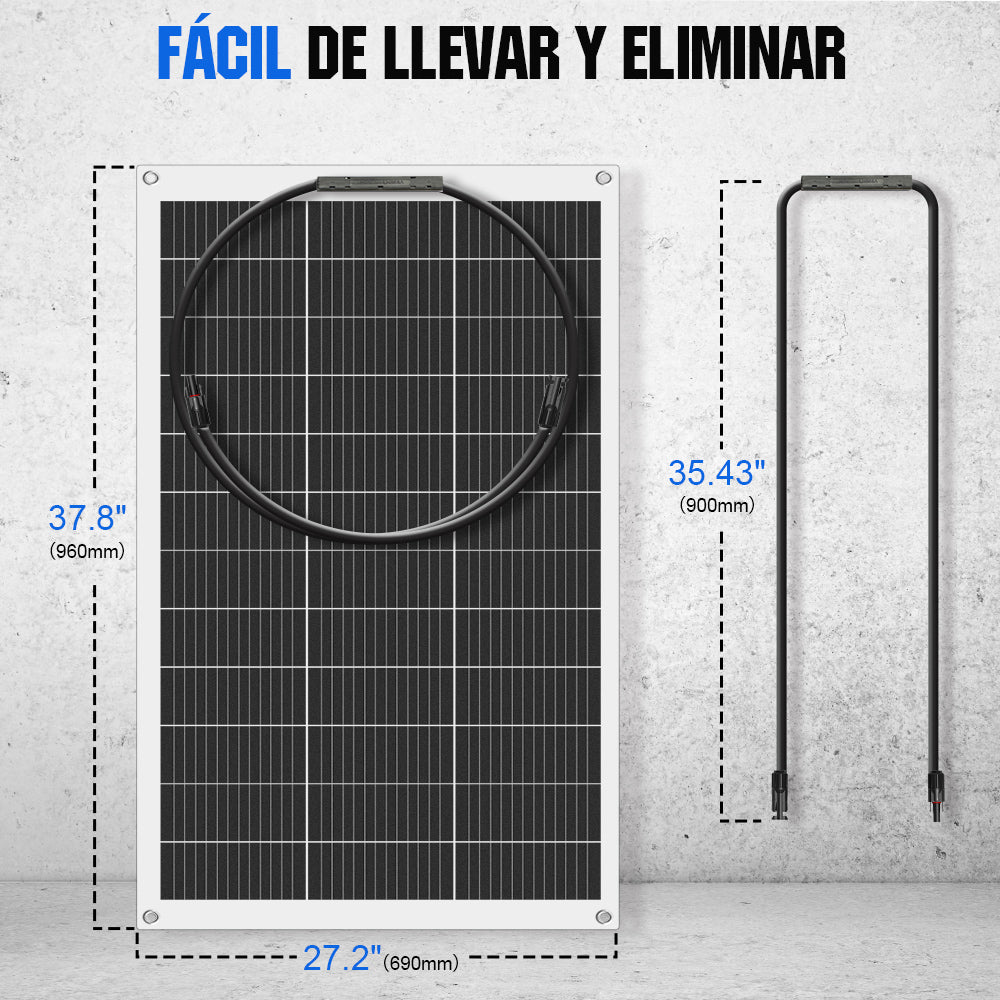

Tamaño: 960x690x2.5 mm |

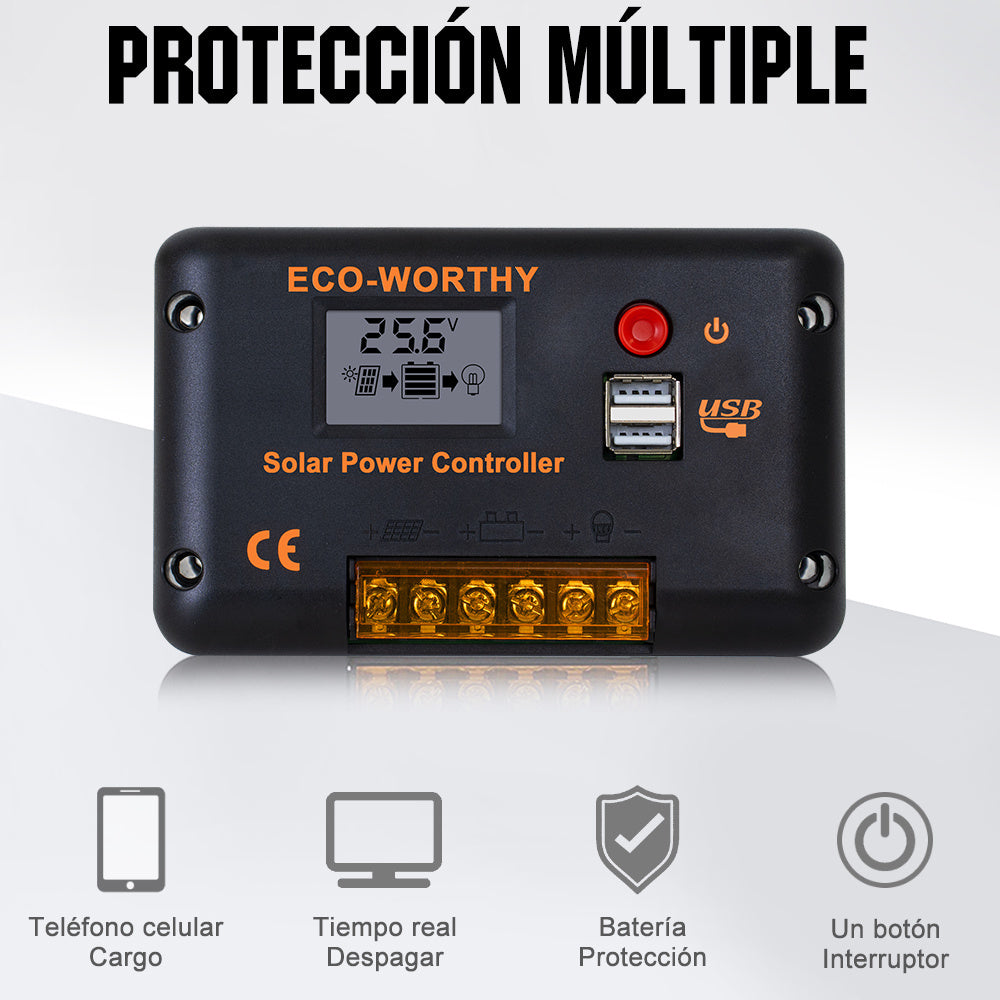

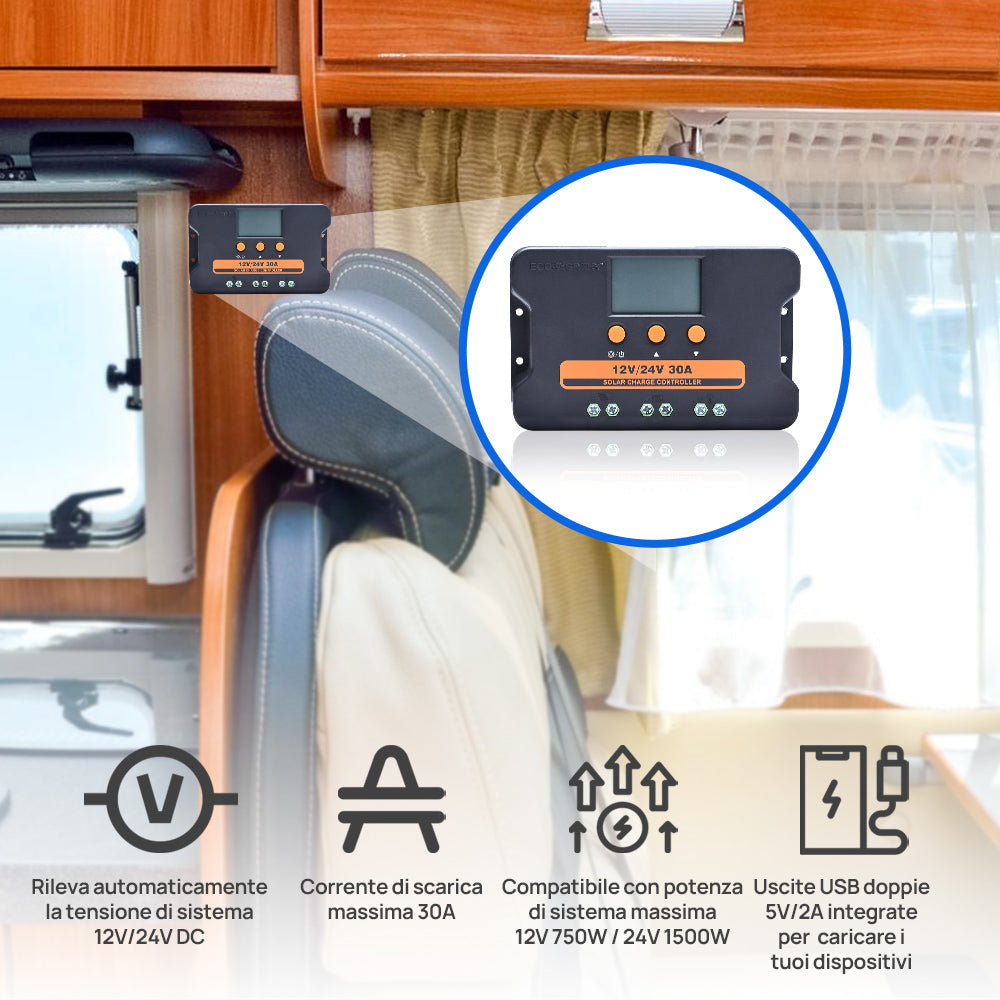

Regulador de Carga PWM 30A
| Voltaje de la batería: 12V/24V |
Modo de carga: PWM |
| Corriente de carga máxima: 30A |
Corriente de descarga: 30A |
| Voltaje de circuito abierto Max.PV: <50V |
Salida USB: 5V/2A |
| Temperatura de trabajo: -20 ℃ ~ 60 ℃ |
Peso: 150g |
| Tamaño: 138*82*30mm |
|

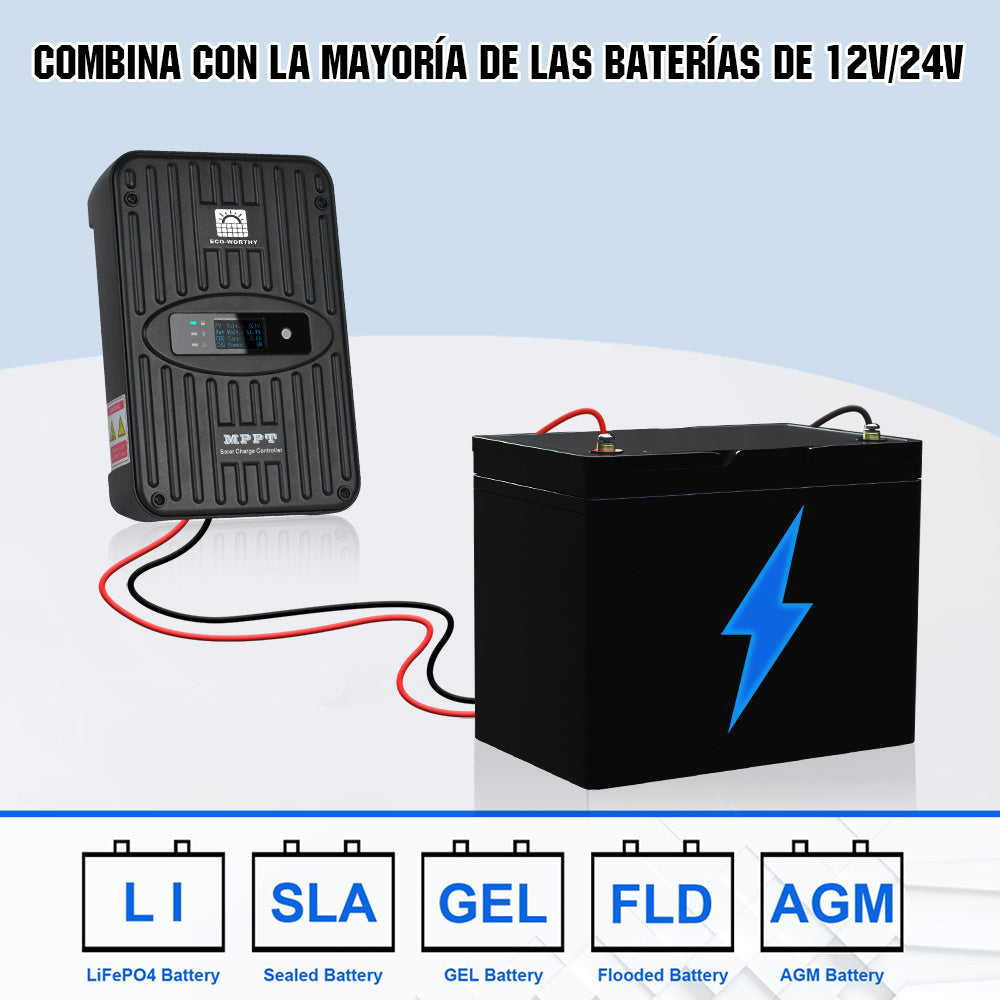

Regulador de Carga MPPT 40A
| Voltaje de la batería: 12V/24V |
Potencia de entrada solar máxima: 560/1120W |
| Modo de carga: MPPT |
Corriente de carga nominal: 20A |
| Eficiencia de carga (pico): 97% |
Autoconsumo: 1~2W |
| Tipo de batería: LiFePO4, AGM, Sellado, Gel, Inundado |
Tamaño: 220*148*64mm |
| Corriente de carga máxima: 40A |
Peso: 1.5 KG |
| Voltaje máximo de circuito abierto de PV: <100V |
|

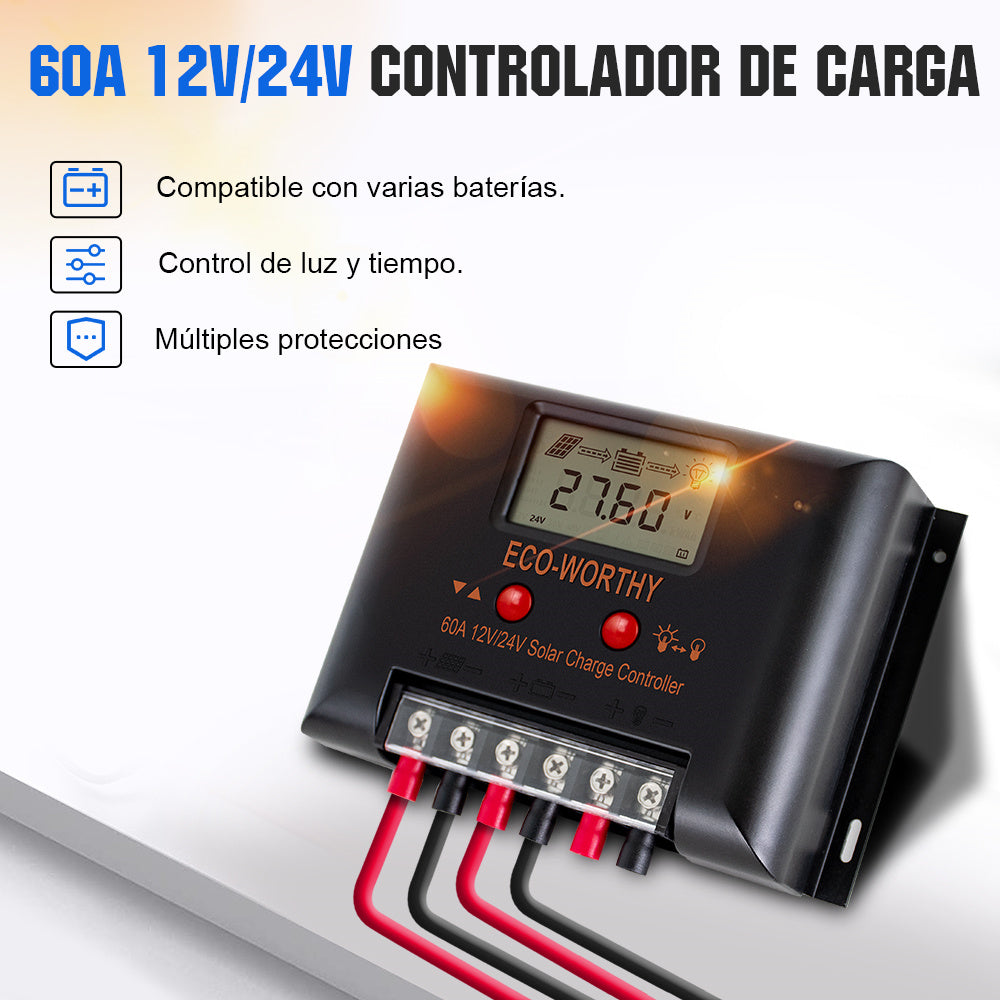

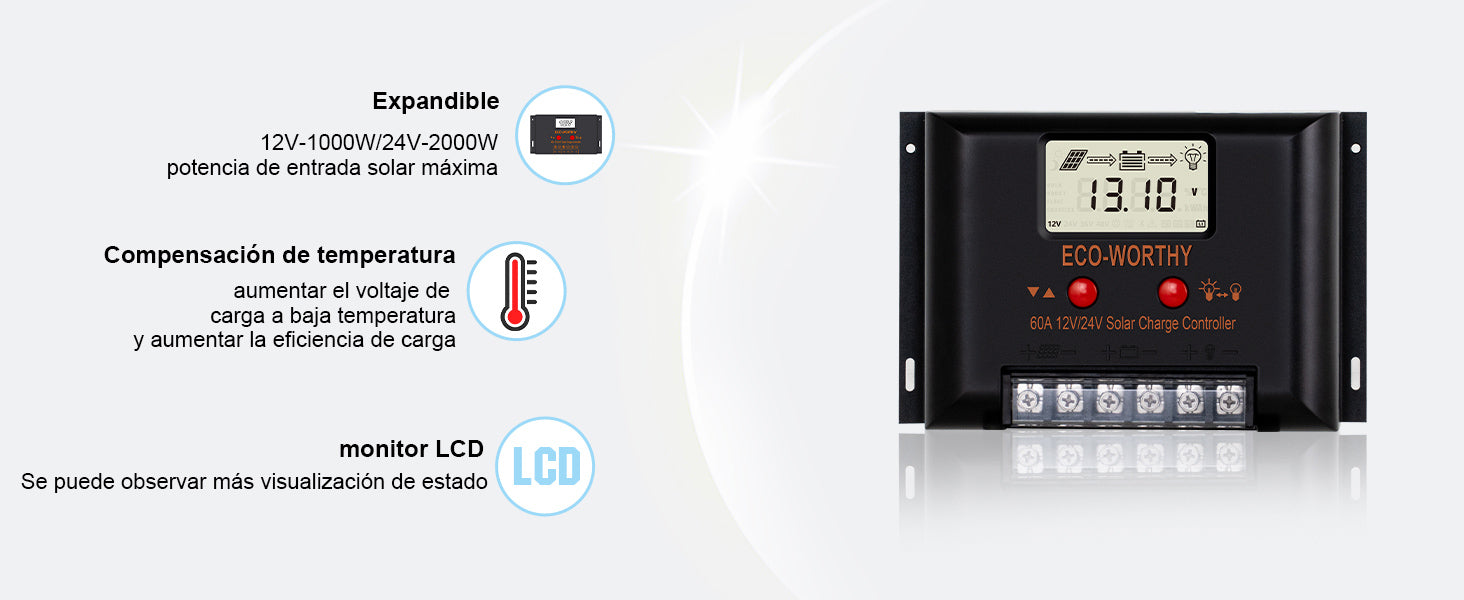

Regulador de Carga PWM 60A
| Voltaje de la batería: 12V/24V |
Modo de carga: PWM |
| Tipo de batería: AGM,SLA,GEL,Li |
Corriente de carga máxima: 60A |
| Corriente de descarga: 60A |
Voltaje máximo de circuito abierto de PV: <55V |
| Voltaje máximo de la batería: <34V |
Tensión de carga de ecualización: 14.6V/29.2V |
| Voltaje de carga flotante: 13.8V/27.6V |
Voltaje de retorno de carga: 13.2V/26.4V |
| Voltaje de retorno de sobredescarga: 12.5V/25V (ajustable) |
Voltaje de sobredescarga: 11.0V/22.0V (ajustable) |
| Tamaño: 189*127*54mm |
Peso: 650g |
600W 12V a 220V Inversor
| Voltaje de entrada de la batería: 12V |
Potencia nominal: 600W |
| Potencia máxima: 1200W |
Forma de onda de salida: onda sinusoidal pura |
| Voltaje de salida: 220Vac |
Salida USB: 5V 1.2A |
| Cable de extensión: 6 mm², 9 AWG, 1 metro |
Frecuencia de salida: 50 HZ ± 0.3 HZ |
| Zócalos de salida de CA: 1 |
Temperatura: -20 ℃ -40 ℃ |

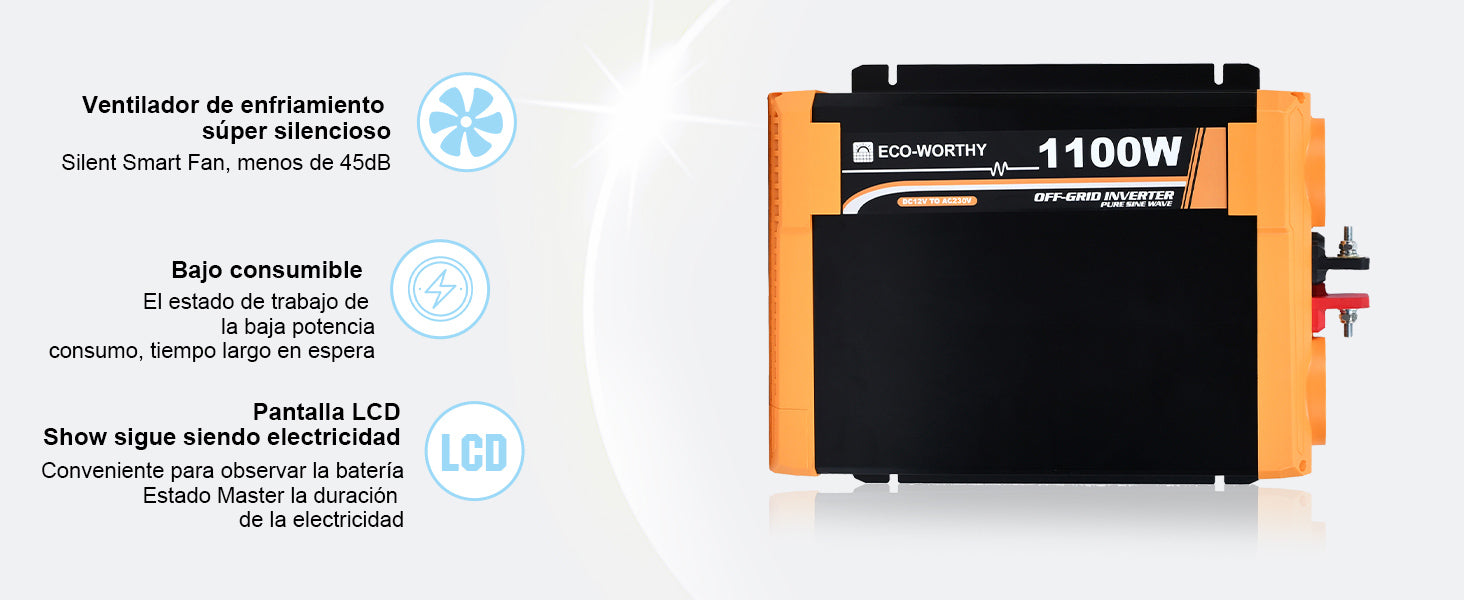

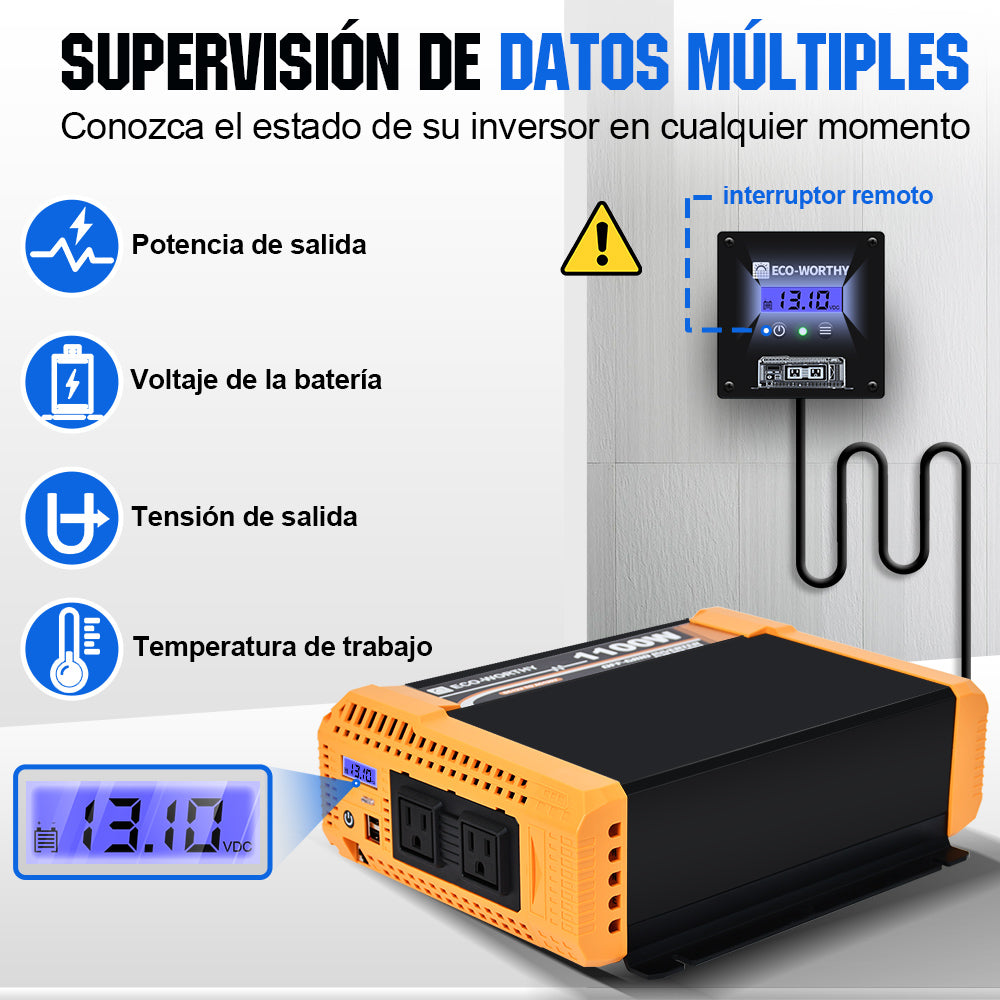

1100W 12V a 220V Inversor
| Vatios continuos de salida (W): 1100W + 18W USB |
Capacidad de sobretensión (PeakPower): 2200W |
| Entrada nominal de CC (V, A): Batería de 12V, 100A |
Rango de voltaje de entrada: 10.5-16Vdc±0.3V |
| Frecuencia nominal (Hz): 50Hz±1 |
Salida nominal CA (V,A): 230Vac±10%, 4.8A |
| Salida nominal USB(V,A): 2*QC3.0 Puertos USB (5V/3A, 9V/2A, 18W máx.) |
Corriente sin carga: <1A |
| Eficiencia óptima: 85% min |
Fusible (A): 30A*4 |
| Tipo de fusible: Hoja interna |
Forma de onda de salida: onda sinusoidal pura |
| Temperatura táctil: 65 ℃ (149 ℉) máx. |
Temperatura de funcionamiento: -20 ℃ ~ 40 ℃ (4 ℉ ~ 104 ℉) |
| Humedad de funcionamiento/almacenamiento HR: 5~95 % |
Sistema de refrigeración: termoventilador |
| THD: <4.5% |
Dimensiones (largo x ancho x alto): 13.5 x 9.8 x 4.1 pulgadas |
| Peso ensamblado (kg): 7.67 libras |
|

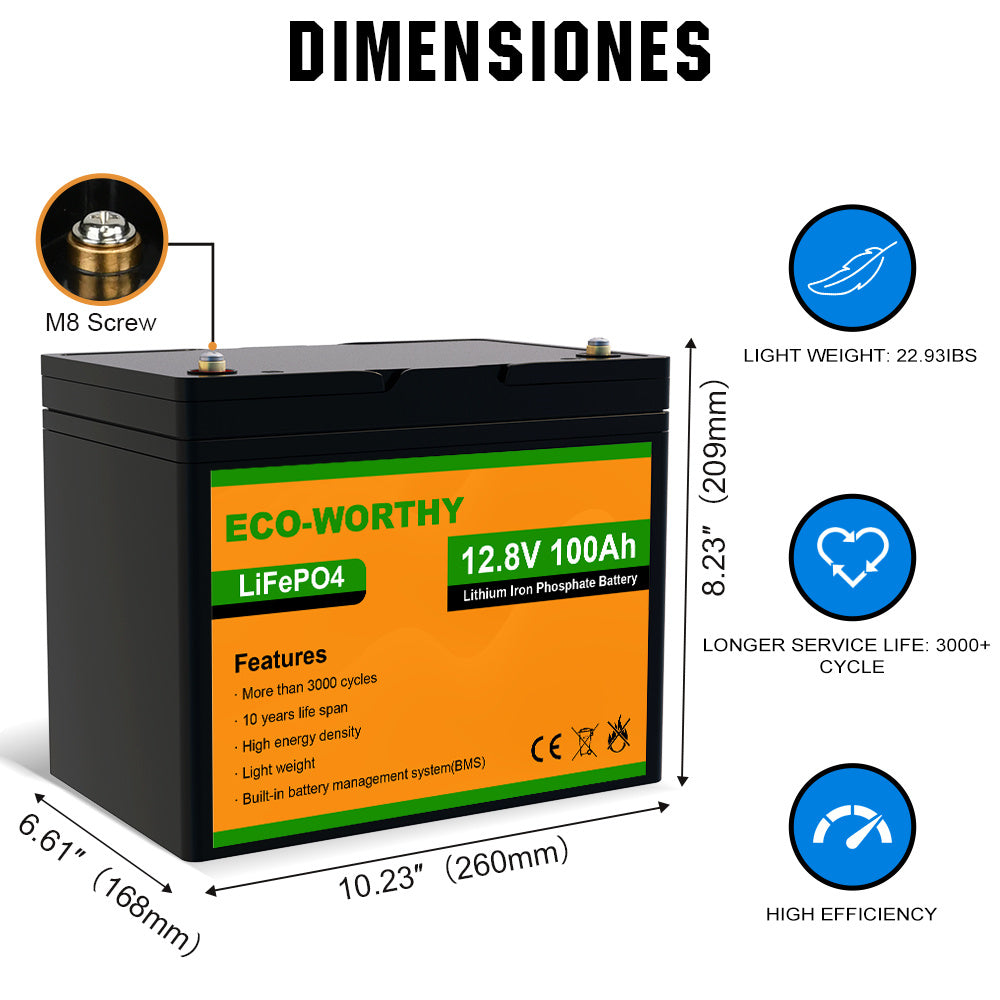

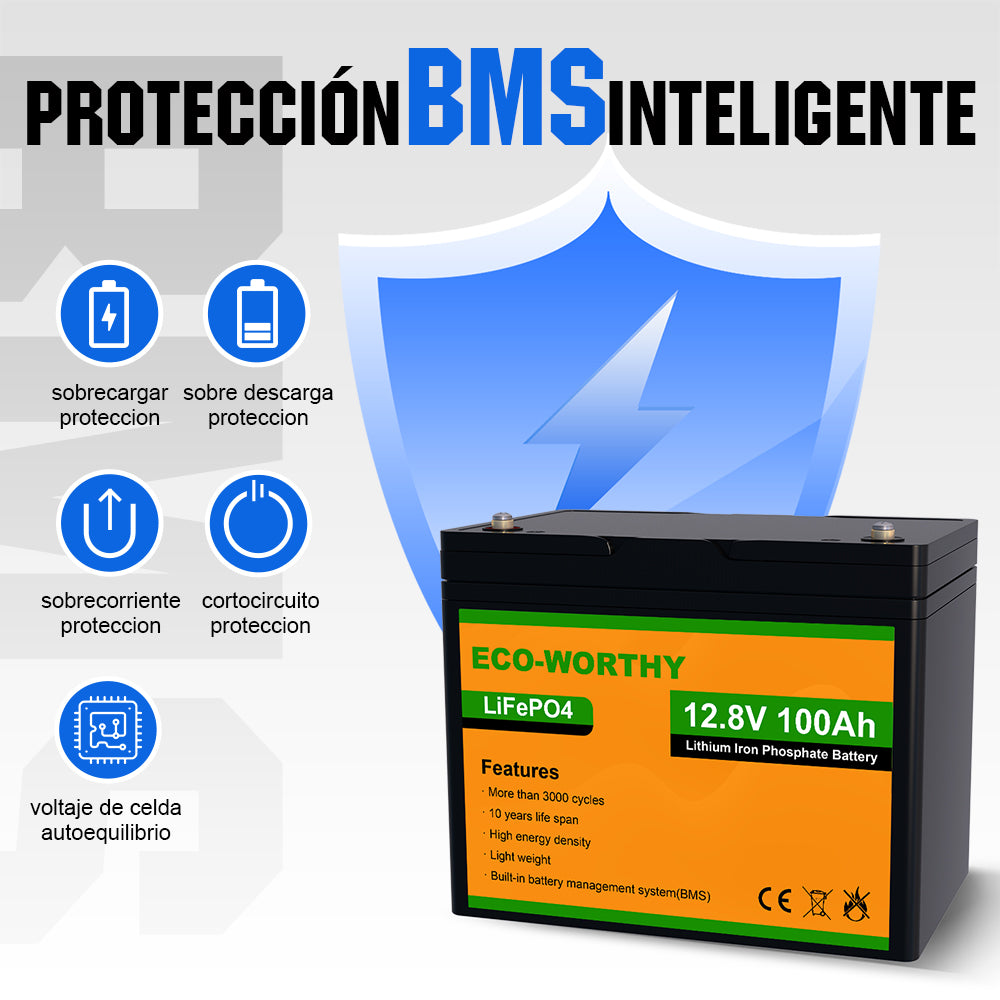

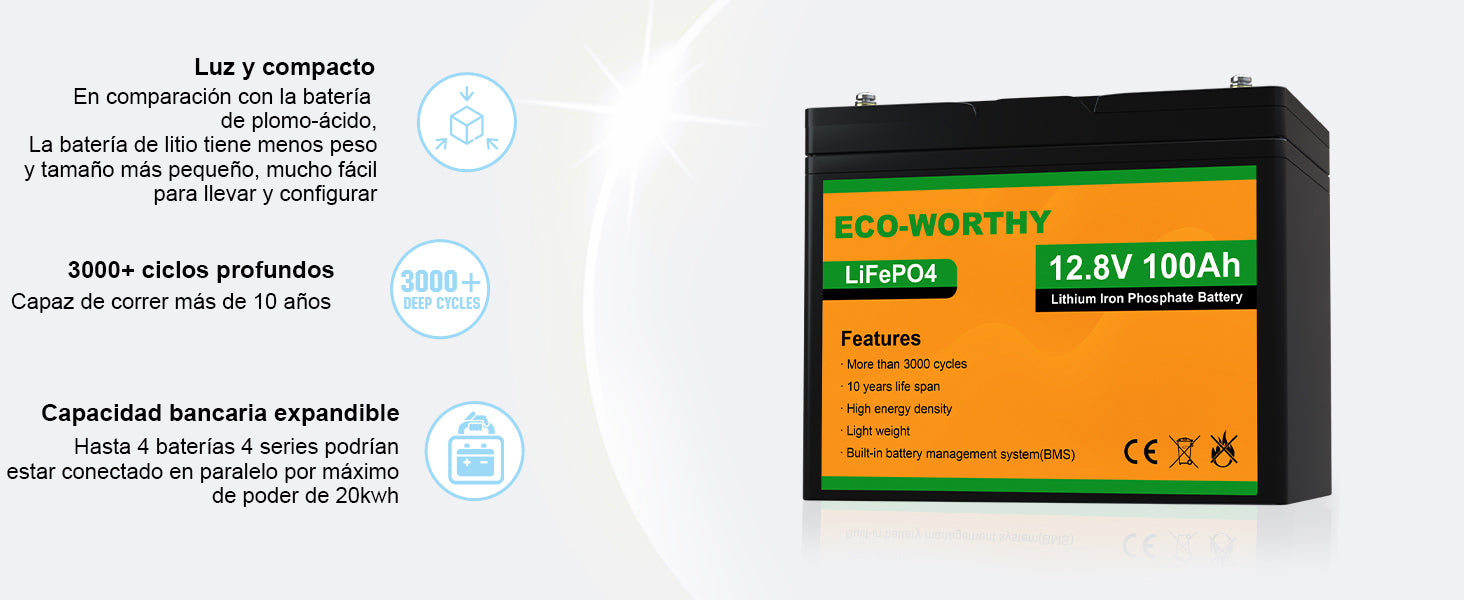

Batería de hierro de litio 100Ah LiFePO4
| Capacidad de la batería: 100Ah |
Energía de la batería: 1280Wh |
| Voltaje de la batería: 12.8V |
Corriente máxima de carga/descarga: 100A / 100A |
| Rango de temperatura de carga: 0-55 ℃ |
Rango de temperatura de descarga: ﹣20－55℃ |
| Voltaje máximo de carga: 14.5V |
Voltaje de corte de descarga: 10V |
| Tamaño del tornillo: M8 |
Tamaño de la batería: 260*168*214mm |
| Peso de la batería: 10 kg |
|
Cables de extensión 5M 4 mm²
| Tipo de cable: Conexión de paneles solares a controladores de carga |
Tensión nominal: 600/1000V |
| Longitud: 5 metros (16 pies) |
Conductor: Alambre de cobre estañado |
| AWG: 12 |
Área transversal normal del conductor (mm2): 4 |
| Impermeable: Protección IP 65 |
Temperatura: -40 °F a +185 °F |
| Conector: MC4 |
|
Conectores MC4 del cable derivado en Yctors
| Compatible con conector solar MC4. |
Fácil instalación para 2 paneles solares conectados en paralelo. |
