Diseñado con componentes de alta calidad y primeras marcas, el ECO-WORTHY Kit Solar Aislada de 130W 260W 390W 520W te proporciona energía suficiente para cubrir tus necesidades de consumo.
Este kit completo incluye Panel solar flexible 130W 12V alto rendimiento, Regulador solar 30A/60A y todos los elementos fotovoltaicos necesarios.
El revestimiento de ETFE estructurado, especialmente translúcido, de los módulos solares garantiza un nivel muy alto de resistencia a los arañazos y a la intemperie y, por lo tanto, una larga vida útil. Paneles solares con garantía de 25 años.

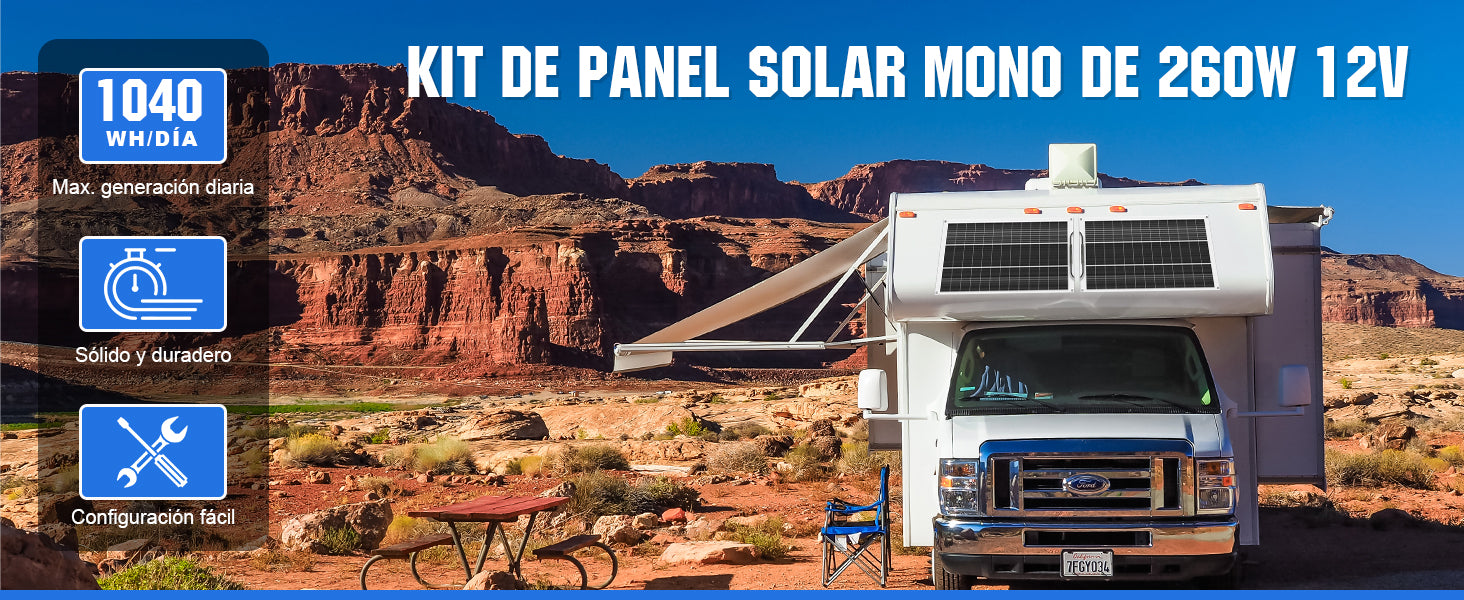

Este kit es ideal tanto como módulo solar para casas móviles como especialmente para uso marino en yates de vela, yates a motor y otros tipos de embarcaciones.
Paquete incluye

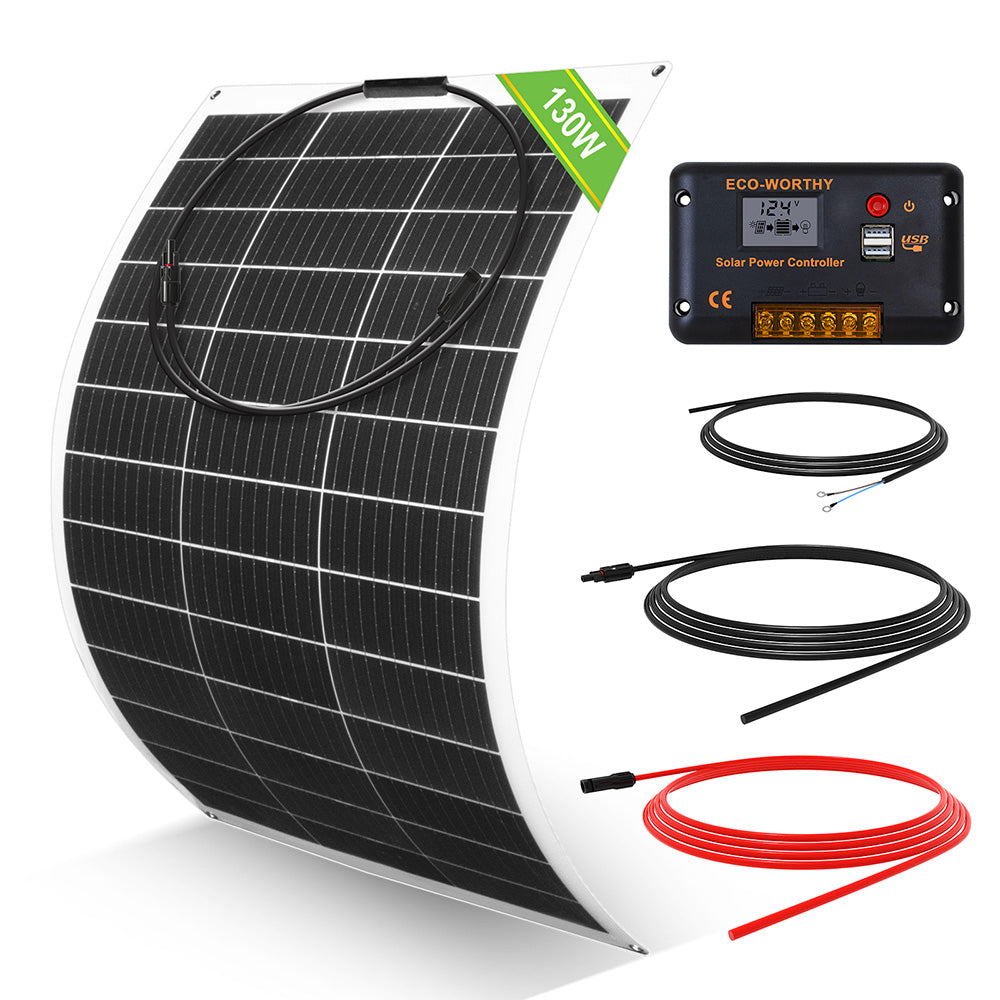

130W (1-Panel) 12V Kit Solar
1x Panel solar mono flexible de 130W
1x Regulador solar 30A PWM
1x Cable de extensión de 5M 4 mm² con MC4
1x Cable de bandeja de 1.5M

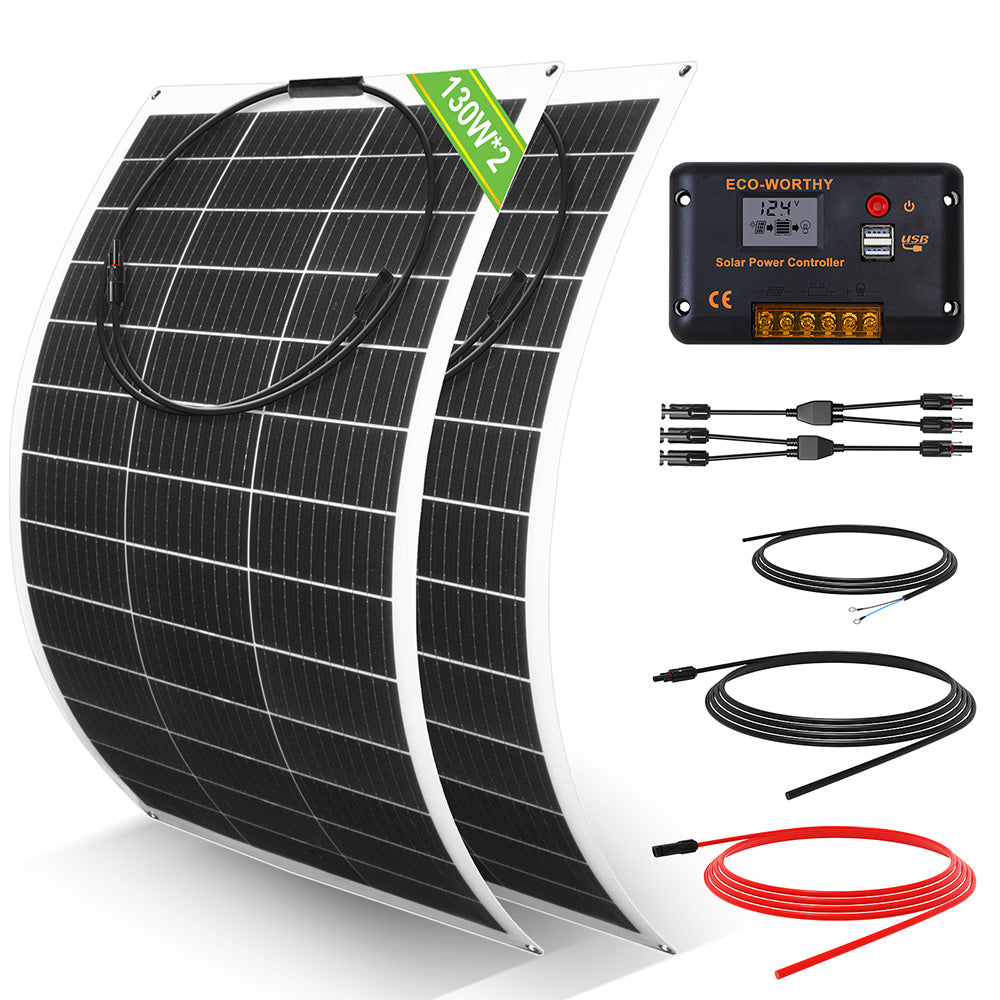

260W (2-Panel) 12V Kit Solar
2x Panel solar mono flexible de 130W
1x Regulador solar 30A PWM
1x Cable de extensión de 5M 4 mm² con MC4
1x Conector Y MC4
1x Cable de bandeja de 1.5M

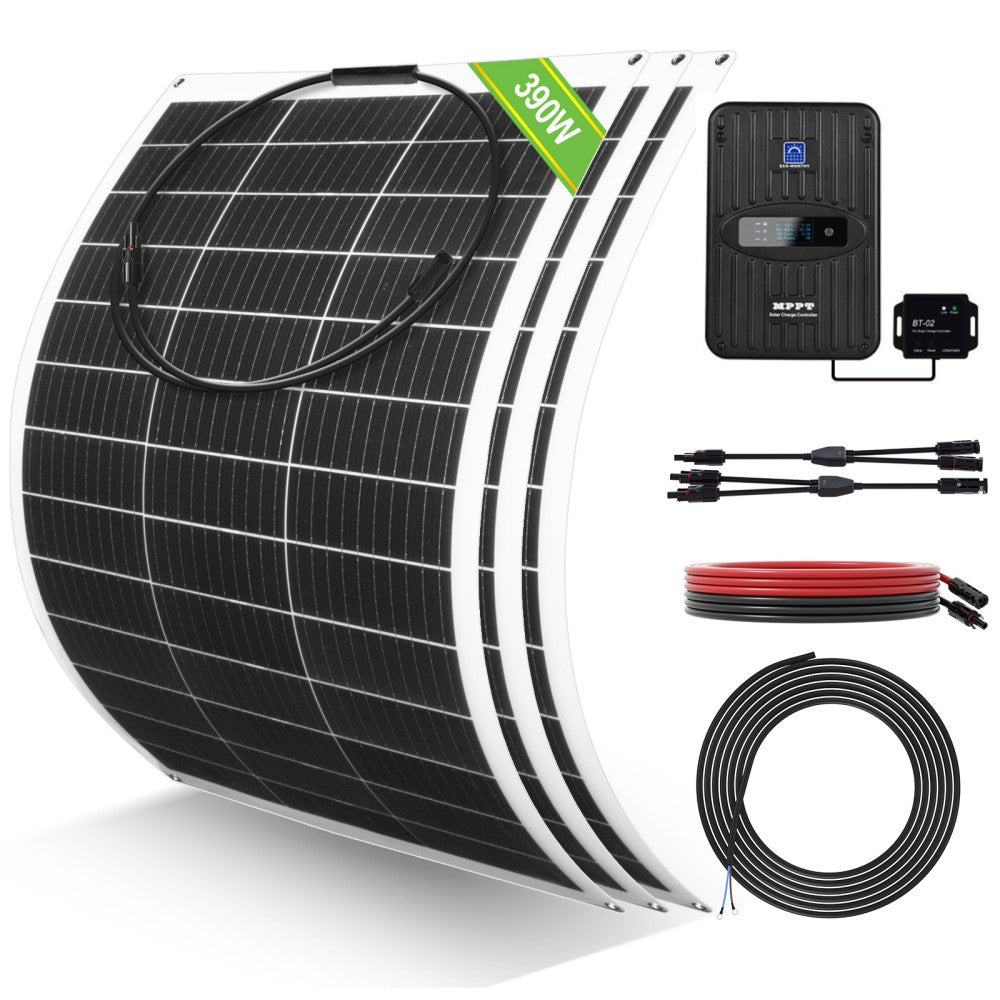

390W (3-Panel) 12V Kit Solar
3x Panel solar mono flexible de 130W
1x Regulador solar
40A MPPT
1x Cable de extensión de 5M 4 mm² con MC4
2x Conector Y MC4
1x Cable de bandeja de 1.5M

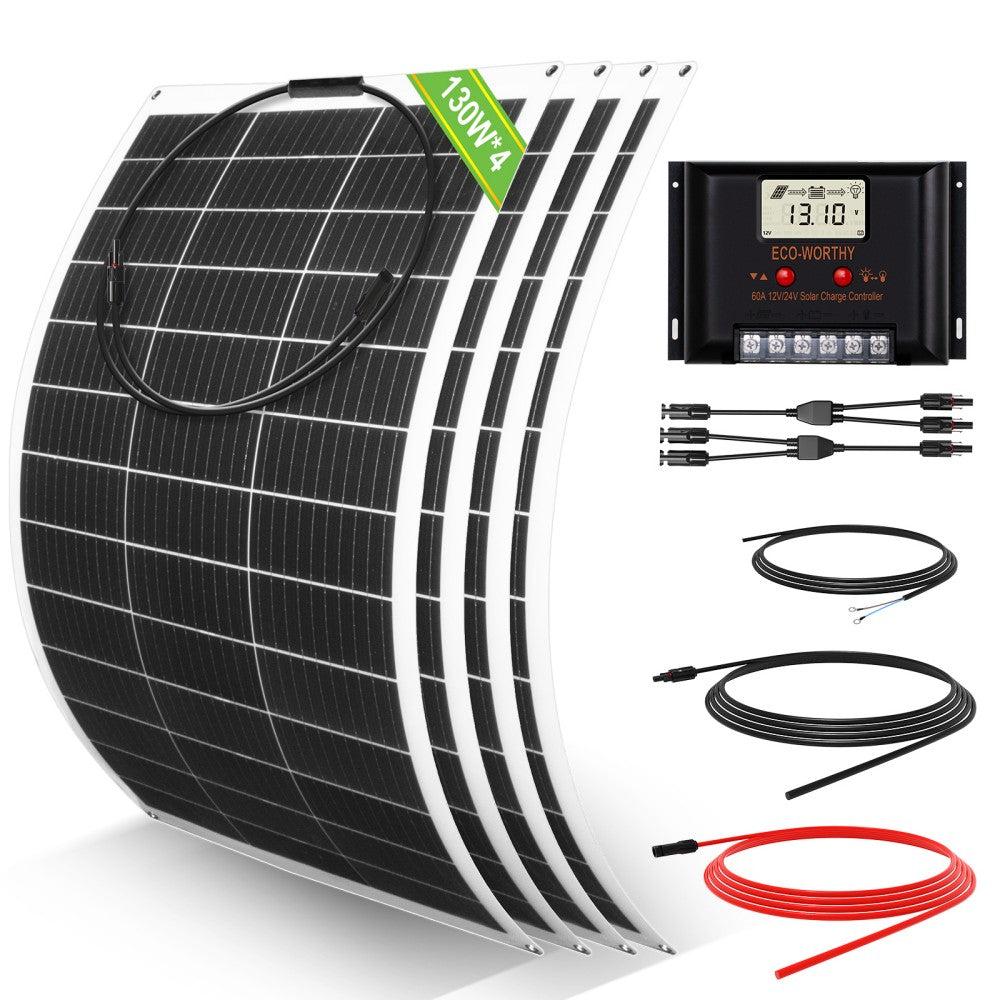

520W (4-Panel) 12V Kit Solar
4x Panel solar mono flexible de 130W
1x Regulador solar 60A PWM
1x Cable de extensión de 5M 4 mm² con MC4
3x Conector Y MC4
1x Cable de bandeja de 1.5M

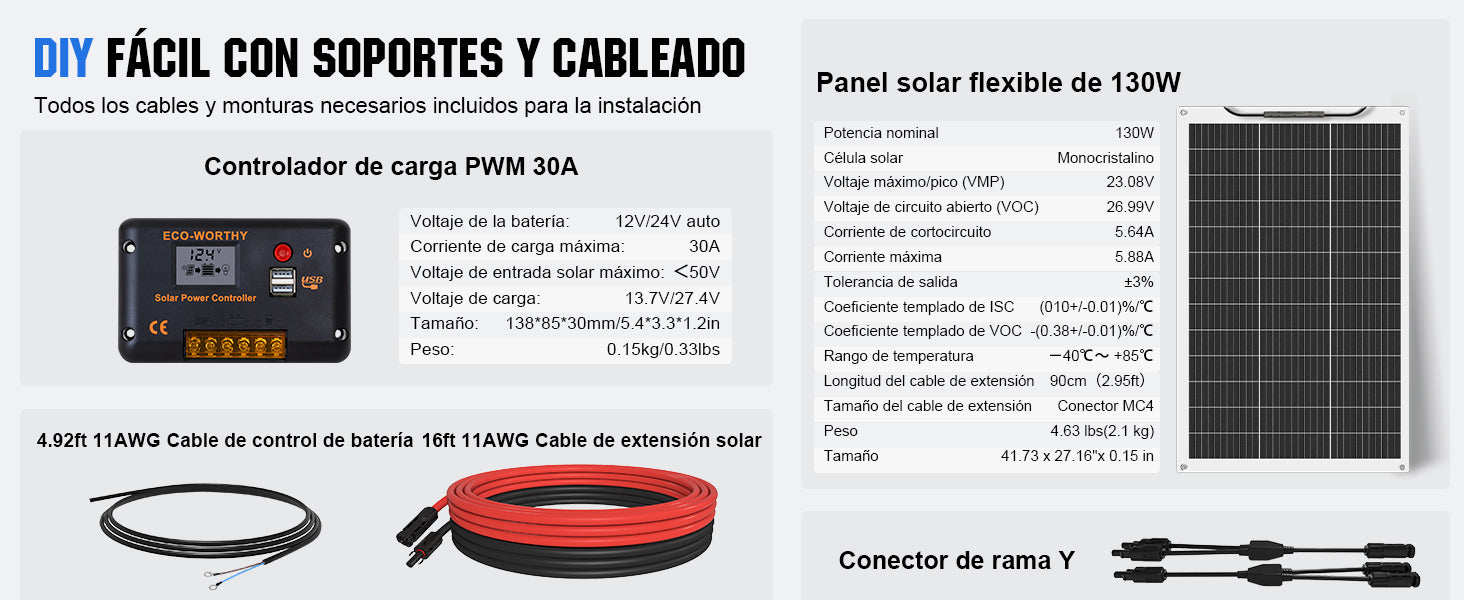

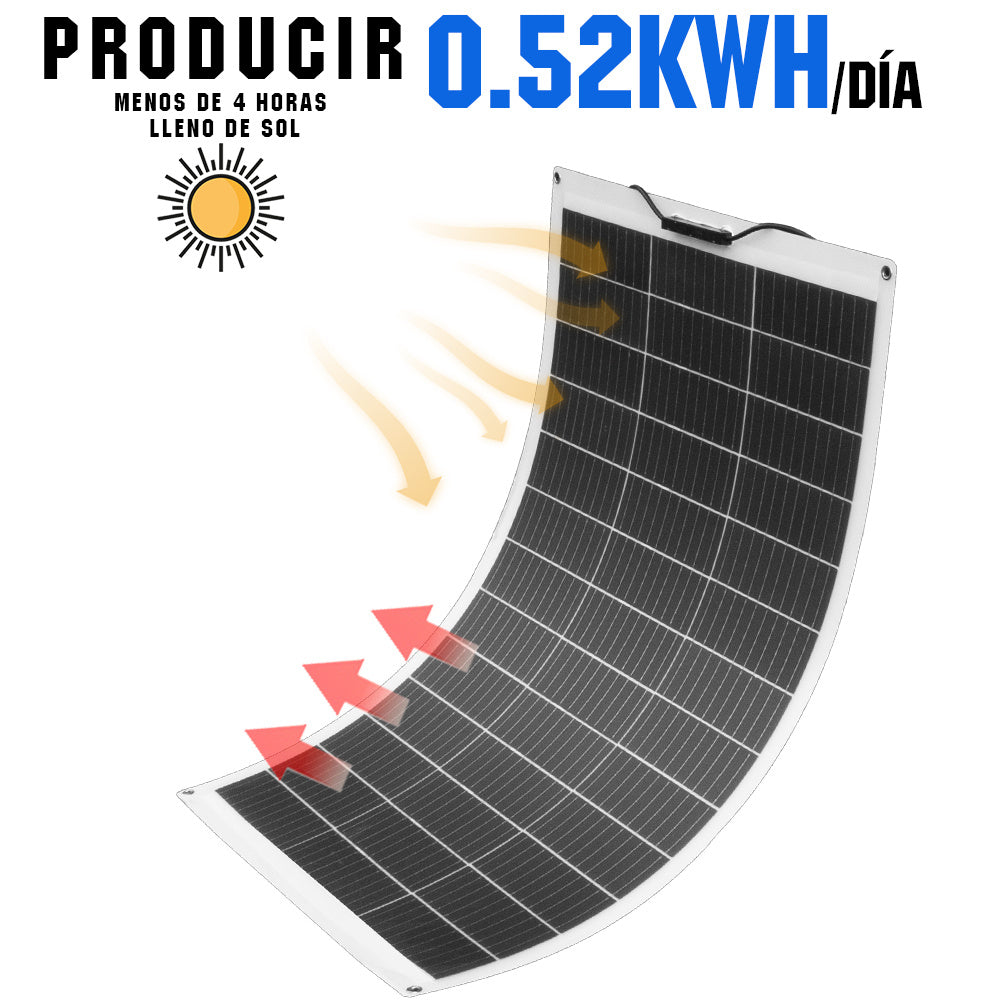

130W 12V Panel solar mono flexible
| Potencia nominal: 130W |
Célula solar: monocristalina |
| Voltaje máximo / pico (Vmp): 21.10V |
Voltaje de circuito abierto (Voc): 24.50V |
| Corriente de cortocircuito: 6.50A |
Corriente máxima: 6.16A |
| Tolerancia de salida: ±3% |
Coeficiente templado de Isc: (010+/-0.01)%/°C |
| Coeficiente templado de Voc: -(0.38+/-0.01)%/°C |
Rango de temperatura: -40°C~ +85°C |
| Longitud del cable de extensión: 90cm (2.95ft) |
Tamaño del cable de extensión: conector 4mm² (11AWG) / MC4 |
| Peso: 2.0 kg |

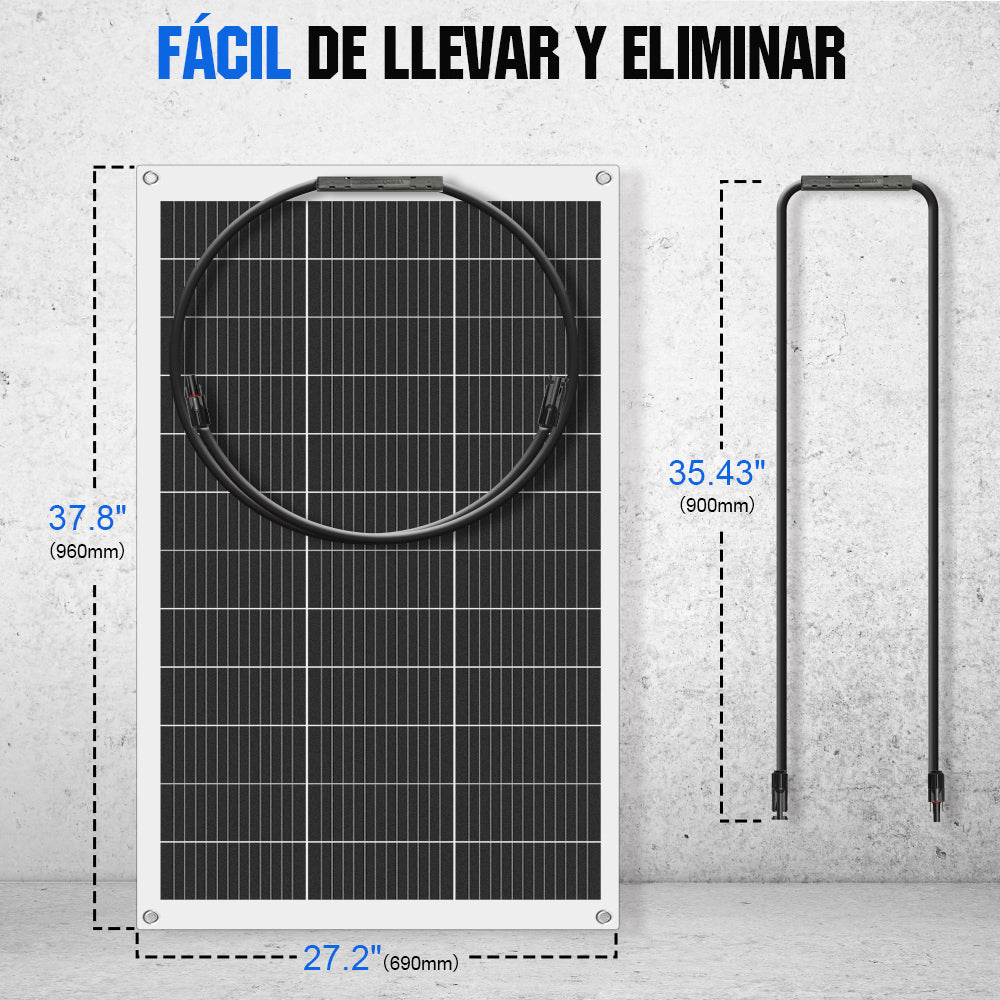

Tamaño: 960x690x2.5 mm |

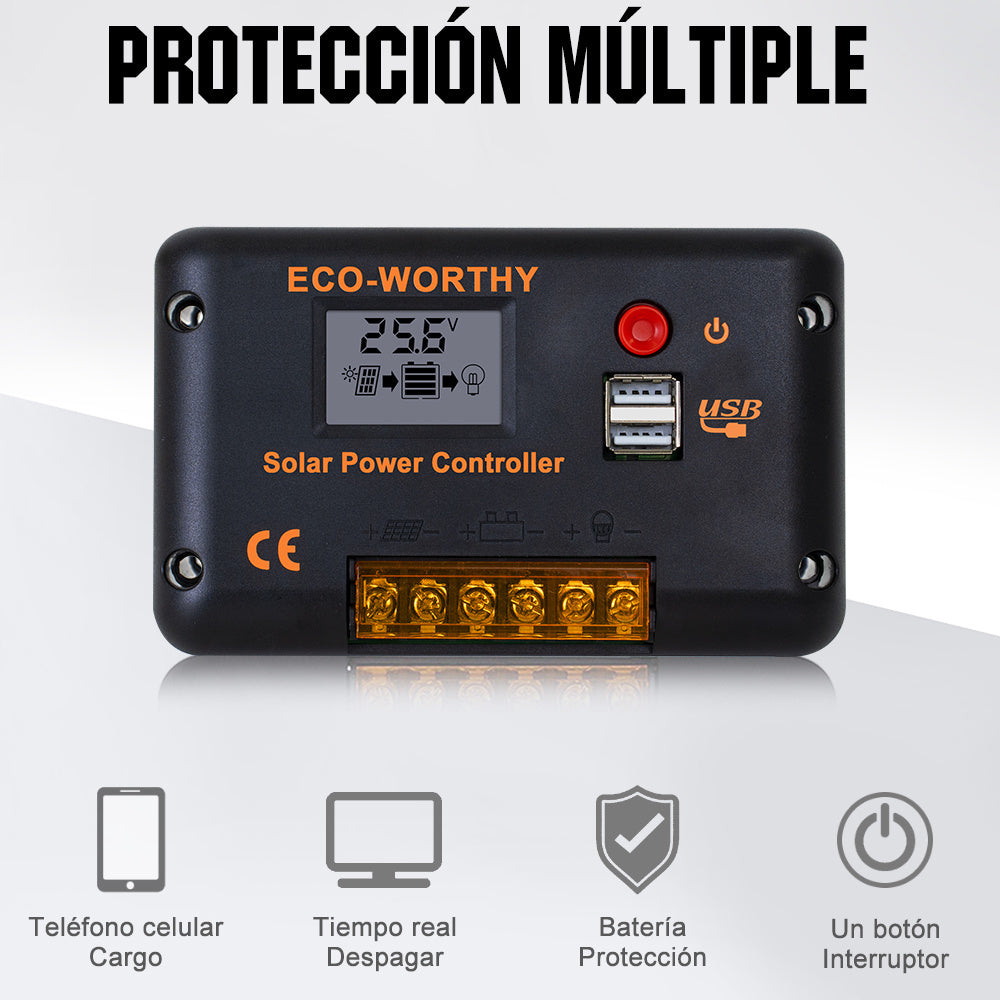

Regulador de Carga PWM 30A
| Voltaje de la batería: 12V/24V |
Modo de carga: PWM |
| Corriente de carga máxima: 30A |
Corriente de descarga: 30A |
| Voltaje de circuito abierto Max.PV: <50V |
Salida USB: 5V/2A |
| Temperatura de trabajo: -20 ℃ ~ 60 ℃ |
Peso: 150g |
| Tamaño: 138*82*30mm |
|

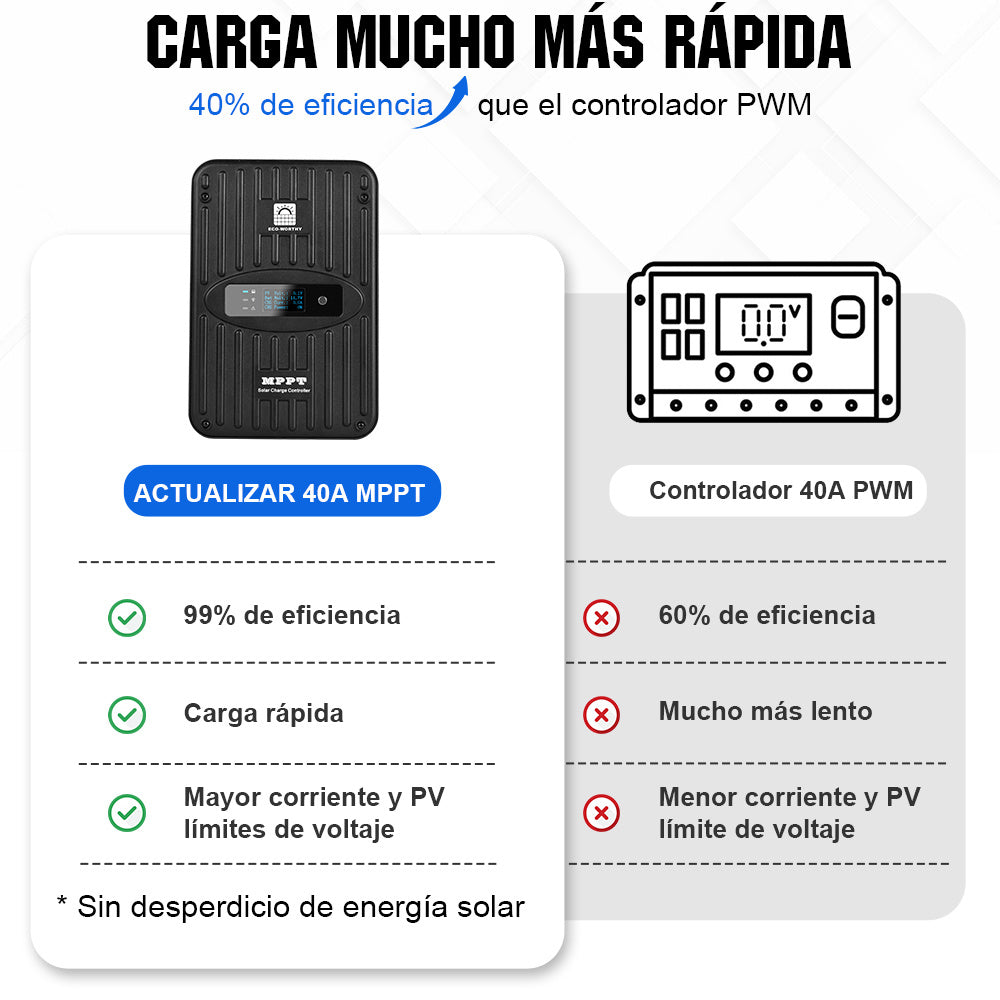

Regulador de Carga MPPT
40A
| Voltaje de la batería: 12V/24V |
Potencia de entrada solar máxima: 560/1120W |
| Modo de carga: MPPT |
Corriente de carga nominal: 20A |
| Eficiencia de carga (pico): 97% |
Autoconsumo: 1~2W |

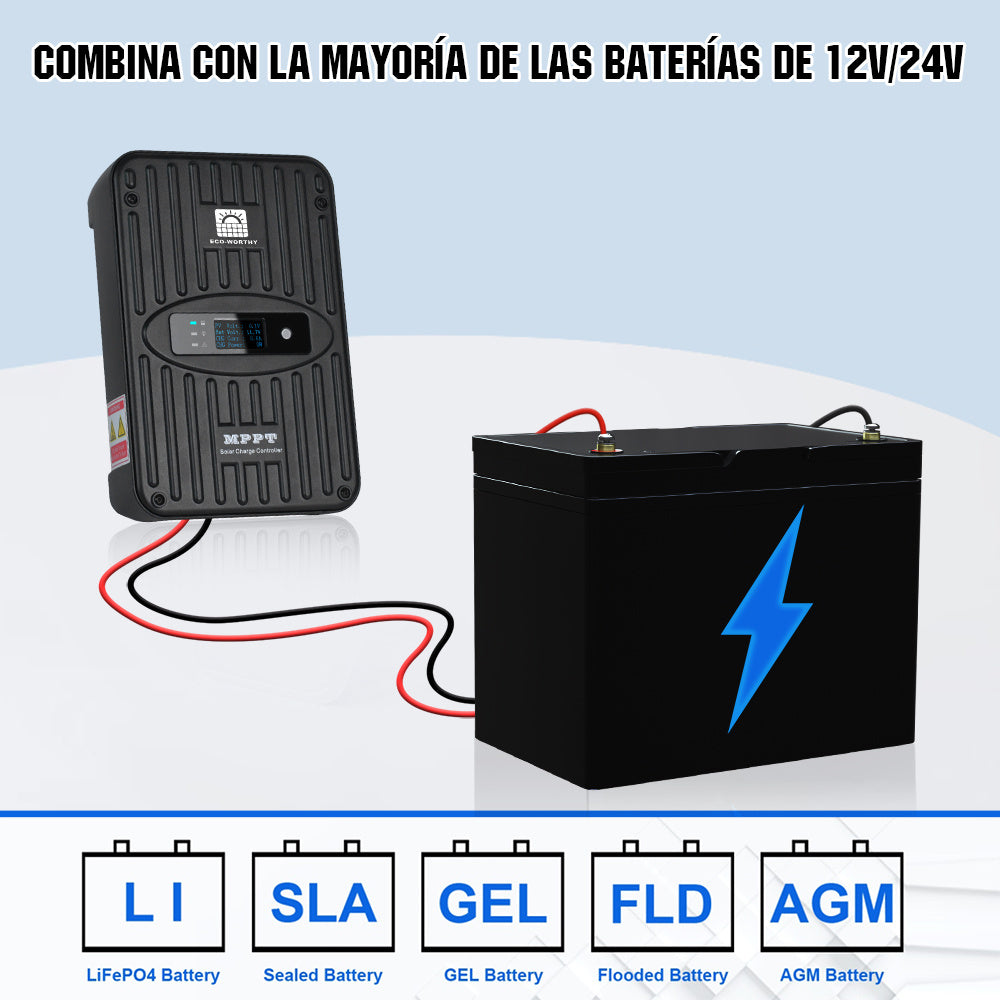

| Tipo de batería: LiFePO4, AGM, Sellado, Gel, Inundado |
Tamaño: 220*148*64mm |
| Corriente de carga máxima: 40A |
Peso: 1.5 KG |
| Voltaje máximo de circuito abierto de PV: <100V |
|

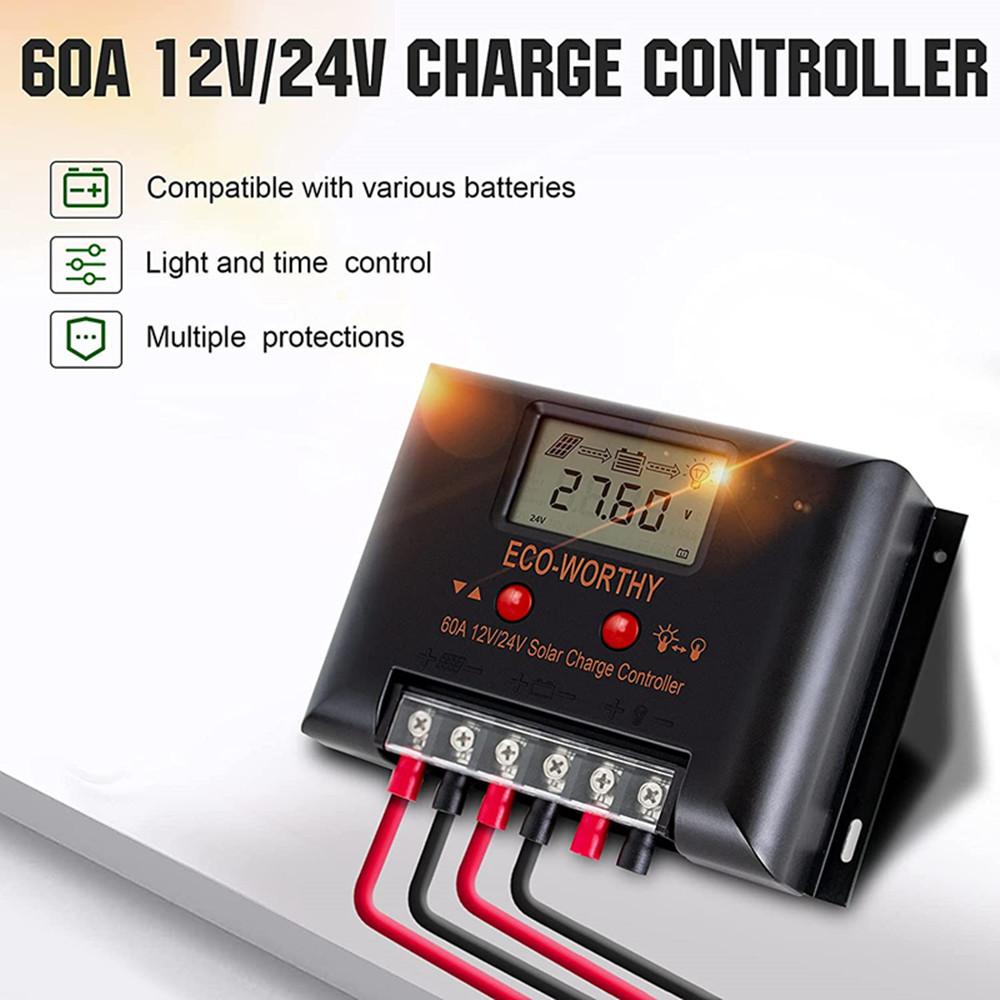

Regulador de Carga PWM 60A
| Voltaje de la batería: 12V/24V |
Modo de carga: PWM |
| Tipo de batería: AGM,SLA,GEL,Li |
Corriente de carga máxima: 60A |
| Corriente de descarga: 60A |
Voltaje máximo de circuito abierto de PV: <55V |
| Voltaje máximo de la batería: <34V |
Tensión de carga de ecualización: 14.6V/29.2V |
| Voltaje de carga flotante: 13.8V/27.6V |
Voltaje de retorno de carga: 13.2V/26.4V |
| Voltaje de retorno de sobredescarga: 12.5V/25V (ajustable) |
Voltaje de sobredescarga: 11.0V/22.0V (ajustable) |
| Tamaño: 189*127*54mm |
Peso: 650g |
Cables de extensión 5M 4 mm²
| Tipo de cable: Conexión de paneles solares a controladores de carga |
Tensión nominal: 600/1000V |
| Longitud: 5 metros (16 pies) |
Conductor: Alambre de cobre estañado |
| AWG: 12 |
Área transversal normal del conductor (mm2): 4 |
| Impermeable: Protección IP 65 |
Temperatura: -40 °F a +185 °F |
| Conector: MC4 |
|
Conectores MC4 del cable derivado en Yctors
| Compatible con conector solar MC4. |
Fácil instalación para 2 paneles solares conectados en paralelo. |
