Kit Solar Para Embarcaciones Y Barcos 130W 260W 520W 12V con Placas Flexibles

Diseñado con componentes de alta calidad y primeras marcas, el ECO-WORTHY Kit Solar Aislada de 130W 260W 520W 780W te proporciona energía suficiente para cubrir tus necesidades de consumo.
Este kit completo incluye Panel solar flexible 130W 12V alto rendimiento, Regulador solar 30A/60A y todos los elementos fotovoltaicos necesarios.
El revestimiento de ETFE estructurado, especialmente translúcido, de los módulos solares garantiza un nivel muy alto de resistencia a los arañazos y a la intemperie y, por lo tanto, una larga vida útil. Paneles solares con garantía de 25 años.
Este kit es ideal tanto como módulo solar para casas móviles como especialmente para uso marino en yates de vela, yates a motor y otros tipos de embarcaciones.

Paquete incluye
130W (1-Panel) 12V Kit Solar
1x Panel solar mono flexible de 130W
1x Regulador solar 30A PWM
1x Cable de extensión de 5M 4 mm² con MC4
1x Cable de bandeja de 1.5M

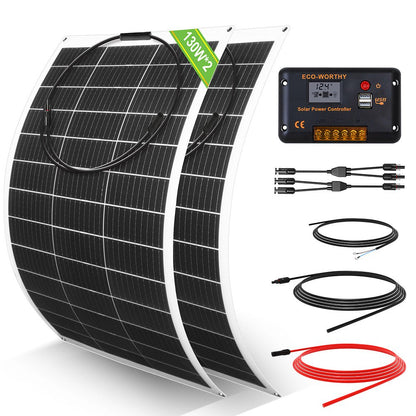

260W (2-Panel) 12V Kit Solar
2x Panel solar mono flexible de 130W
1x Regulador solar 30A PWM
1x Cable de extensión de 5M 4 mm² con MC4
1x Conector Y MC4
1x Cable de bandeja de 1.5M

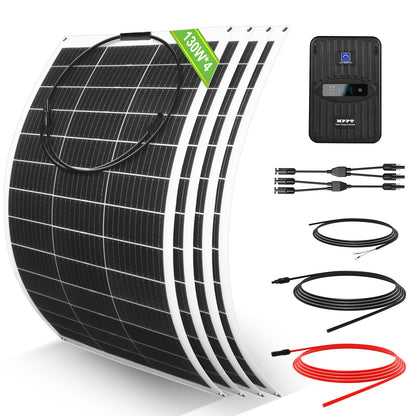

520W (4-Panel) 12V Kit Solar
4x Panel solar mono flexible de 130W
1x Regulador solar 60A PWM
1x Cable de extensión de 5M 4 mm² con MC4
3x Conector Y MC4
1x Cable de bandeja de 1.5M

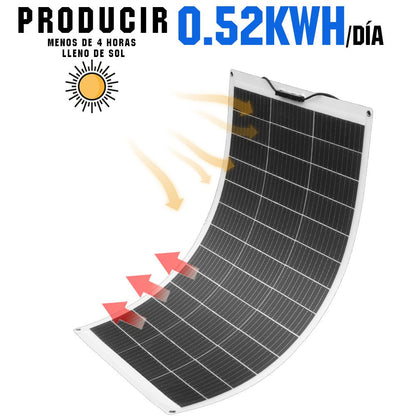

130W 12V Panel solar mono flexible

Potencia nominal: 130W	Célula solar: monocristalina
Voltaje máximo / pico (Vmp): 23.08V	Voltaje de circuito abierto (Voc): 26.99V
Corriente de cortocircuito: 5.64A	Corriente máxima: 5.88A
Tolerancia de salida: ±3%	Coeficiente templado de Isc: (010+/-0.01)%/°C
Coeficiente templado de Voc: -(0.38+/-0.01)%/°C	Rango de temperatura: -40°C~ +85°C
Longitud del cable de extensión: 90cm (2.95ft)	Tamaño del cable de extensión: conector 4mm² (11AWG) / MC4

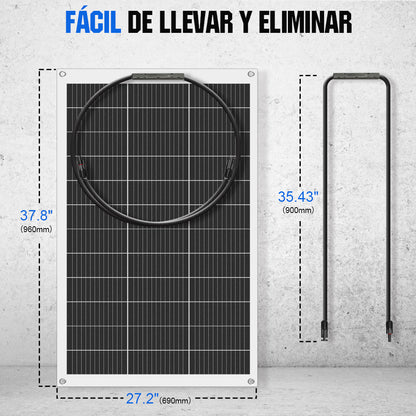

Peso: 2.0 kg	Tamaño: 960x690x2.5 mm

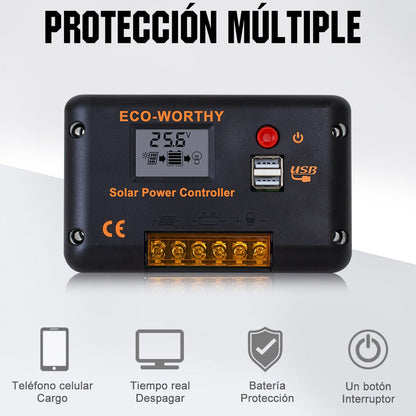

Regulador de Carga PWM 30A

Voltaje de la batería: 12V/24V	Modo de carga: PWM
Corriente de carga máxima: 30A	Corriente de descarga: 30A
Voltaje de circuito abierto Max.PV: <50V	Salida USB: 5V/2A
Temperatura de trabajo: -20 ℃ ~ 60 ℃	Peso: 150g
Tamaño: 138*82*30mm

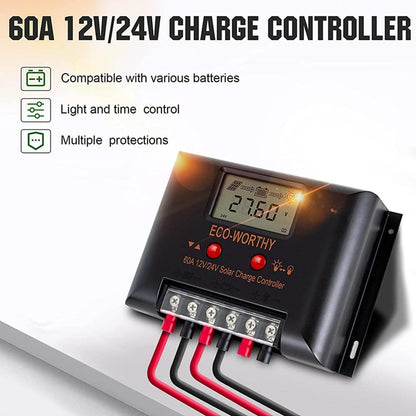

Regulador de Carga PWM 60A

Voltaje de la batería: 12V/24V	Modo de carga: PWM
Tipo de batería: AGM,SLA,GEL,Li	Corriente de carga máxima: 60A
Corriente de descarga: 60A	Voltaje máximo de circuito abierto de PV: <55V
Voltaje máximo de la batería: <34V	Tensión de carga de ecualización: 14.6V/29.2V
Voltaje de carga flotante: 13.8V/27.6V	Voltaje de retorno de carga: 13.2V/26.4V
Voltaje de retorno de sobredescarga: 12.5V/25V (ajustable)	Voltaje de sobredescarga: 11.0V/22.0V (ajustable)
Tamaño: 189*127*54mm	Peso: 650g

Cables de extensión 5M 4 mm²

Tipo de cable: Conexión de paneles solares a controladores de carga	Tensión nominal: 600/1000V
Longitud: 5 metros (16 pies)	Conductor: Alambre de cobre estañado
AWG: 12	Área transversal normal del conductor (mm2): 4
Impermeable: Protección IP 65	Temperatura: -40 °F a +185 °F
Conector: MC4

Conectores MC4 del cable derivado en Yctors

Compatible con conector solar MC4.

Fácil instalación para 2 paneles solares conectados en paralelo.
