Diseñado con componentes de alta calidad y primeras marcas, el ECO-WORTHY Kit Solar Aislada de 480W te proporciona energía suficiente para cubrir tus necesidades de consumo.
Este kit completo incluye Panel solar 120W 12V alto rendimiento, Regulador solar 60A, Inversor de onda sinusoidal pura, Batería Litio y todos los elementos fotovoltaicos necesarios.
Con Batería Litio LiFePO4 de ECO-WORTHY con más de 3000 ciclos con profundidades de descarga del 95%, paneles solares con garantía de 25 años.
Energía captada en un día:
480W kit: 1440Wh/dia en invierno y 3360Wh/dia en verano.
Este kit para Barcos, Caravanas, Casas Vacacionales.
Paquete incluye
4x Panel solar mono de 120W
1x Regulador solar 60A PWM
1x Cable de extensión de 5M 4 mm² con MC4
4x Soporte de montaje Z
3x Conector Y MC4
1.1kW inversor y 1.2kWh batería (Opcional)
+
1x Cable de bandeja de 1.5M
1x Inversor de onda sinusoidal pura de 1100W
12V-220V
1x Batería de litio LiFePO4 de 12V 100Ah

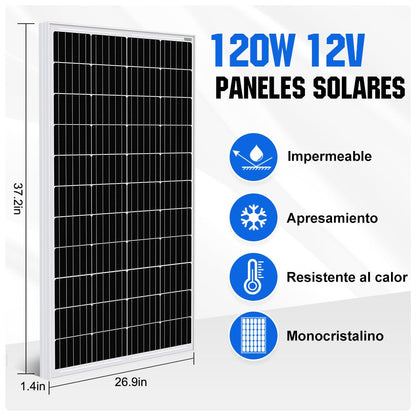

120W Panel solar monocristalino
| Potencia nominal: 120W |
Célula solar: monocristalina |
| Voltaje máximo / pico (Vmp): 18V |
Voltaje de circuito abierto (Voc): 21.6V |
| Corriente de cortocircuito: 7.72A |
Corriente máxima: 6.77A |
| Tolerancia de salida: ±3% |
Coeficiente templado de Isc: (010+/-0.01)%/℃ |
| Coeficiente templado de Voc: -(0.38+/-0.01)%/℃ |
Rango de temperatura: －40℃～ +85℃ |
| Marco: Marco de aleación de aluminio |
Longitud del cable de extensión: 90cm (2.95ft) |
Tamaño del cable de extensión: conector 4mm² (11AWG) / MC4
|
Tamaño: 970*705*35mm |
| Peso: 7.5 kg |
|
Regulador de Carga PWM 60A
| Voltaje de la
batería: 12V/24V
|
Modo de carga:
PWM |
| Tipo de batería:
AGM,SLA,GEL,Li |
Corriente de
carga máxima: 60A |
| Corriente de
descarga: 60A |
Voltaje máximo de
circuito abierto de PV: <55V |
| Voltaje máximo de
la batería: <34V |
Tensión de carga
de ecualización: 14.6V/29.2V |
| Voltaje de carga
flotante: 13.8V/27.6V |
Voltaje de
retorno de carga: 13.2V/26.4V |
| Voltaje de
retorno de sobredescarga: 12.5V/25V (ajustable) |
Voltaje de
sobredescarga: 11.0V/22.0V (ajustable) |
| Tamaño:
189*127*54mm |
Peso: 650g |

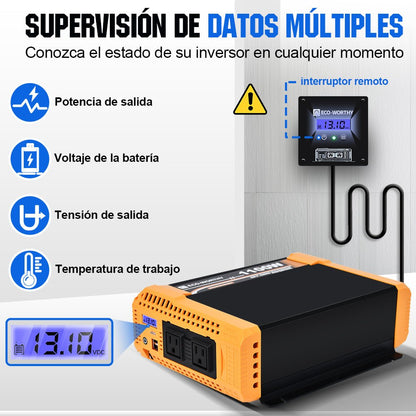

1100W 12V a 220V Inversor
| Vatios continuos de salida (W): 1100W
+ 18W USB |
Capacidad de sobretensión
(PeakPower): 2200W |
| Entrada nominal de CC (V, A): Batería
de 12V, 100A |
Rango de voltaje de entrada:
10.5-16Vdc±0.3V |
| Frecuencia nominal (Hz): 50Hz±1 |
Salida nominal CA (V,A): 230Vac±10%,
4.8A |
| Salida nominal USB(V,A): 2*QC3.0
Puertos USB (5V/3A, 9V/2A, 18W máx.) |
Corriente sin carga: <1A |
| Eficiencia óptima: 85% min |
Fusible (A): 30A*4 |
| Tipo de fusible: Hoja interna |
Forma de onda de salida: onda
sinusoidal pura |
| Temperatura táctil: 65 ℃ (149 ℉)
máx. |
Temperatura de funcionamiento:
-20 ℃ ~ 40 ℃ (4 ℉ ~ 104 ℉) |
| Humedad de
funcionamiento/almacenamiento HR: 5~95 % |
Sistema de refrigeración:
termoventilador |
| THD: <4.5% |
Dimensiones (largo x ancho x alto):
13.5 x 9.8 x 4.1 pulgadas |
| Peso ensamblado (kg): 7.67 libras |
|

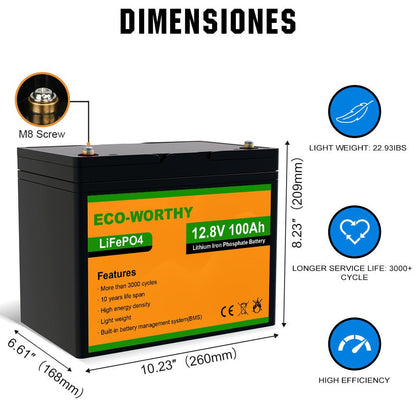

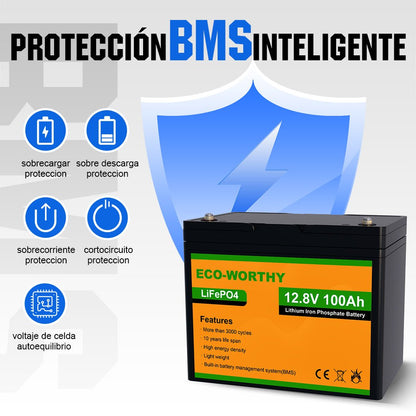

Batería de hierro de litio 100Ah LiFePO4
| Capacidad de la
batería: 100Ah |
Energía de la
batería: 1280Wh |
| Voltaje de la
batería: 12.8V |
Corriente máxima
de carga/descarga: 50A / 100A |
| Rango de
temperatura de carga: 0-55 ℃ |
Rango de
temperatura de descarga: ﹣20－55℃ |
| Voltaje máximo de
carga: 14.5V |
Voltaje de corte
de descarga: 10V |
| Tamaño del
tornillo: M8 |
Tamaño de la
batería: 260*168*209mm |
| Peso de la
batería: 12 kg |
|
Cables de extensión 5M 4 mm²
| Tipo de cable: Conexión de paneles solares a
controladores de carga |
Tensión nominal: 600/1000V |
| Longitud: 5 metros (16 pies) |
Conductor: Alambre de cobre estañado |
| AWG: 12 |
Área transversal normal del conductor (mm2): 4 |
| Impermeable: Protección IP 65 |
Temperatura: -40 °F a +185 °F |
| Conector: MC4 |
|
Soporte de montaje Z
| 4 piezas de soportes para paneles solares en forma de
Z |
8 piezas de tuercas y pernos de acero inoxidable |
Conectores MC4 del cable derivado en Yctors
| Compatible con conector solar MC4. |
Fácil instalación para 2 paneles solares conectados en
paralelo. |
