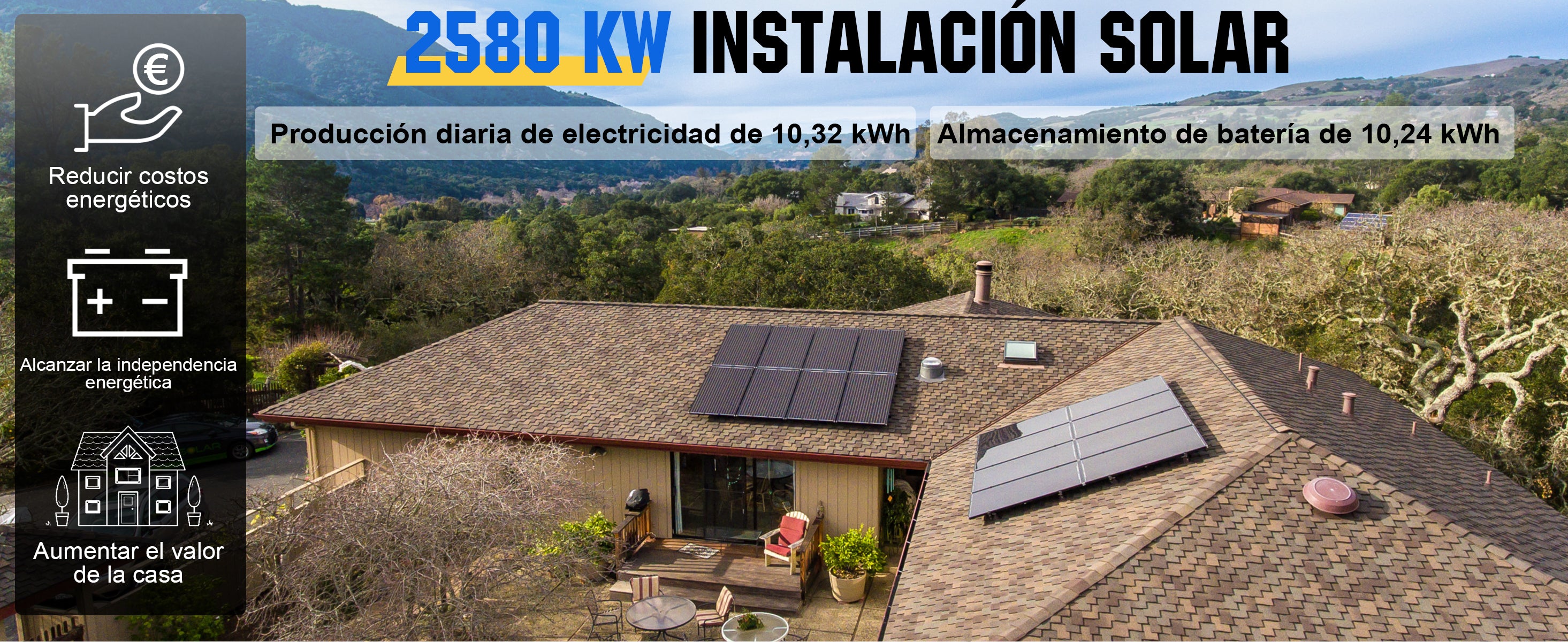

Kit solar MPPT completo para autoconsumo fuera de la red, 48V 2580W(6 x 430W)

Si prioriza la eficiencia, la fiabilidad y la asequibilidad, el kit solar escalable MPPT ECO-WORTHY de 2580 W y 48 V es la opción ideal. Este panel solar de silicio monocristalino negro de 430 W incluye una garantía de potencia lineal de 10 años. La batería de fosfato de hierro y litio ECO-WORTHY de 48 V y 100 Ah ofrece más de 15 000 ciclos, una vida útil de más de 10 años y una garantía de 10 años. Garantiza una capacidad de almacenamiento estable y segura, ideal para el uso diario o durante cortes de electricidad. Inversor todo en uno: Al combinar un controlador de carga solar MPPT de 80 A/48 V y un inversor de onda sinusoidal pura de 5000 W en una sola unidad compacta, obtendrá energía estable del sol y de la red eléctrica, independientemente de las condiciones. El kit solar MPPT ECO-WORTHY de 2580 W y 48 V es adecuado para una amplia gama de aplicaciones, incluyendo instalaciones residenciales y de pequeña escala. Sea cual sea el uso que le vaya a dar, puede estar seguro de que está adquiriendo un sistema de alta calidad. Si tiene alguna pregunta sobre este producto, no dude en contactarnos.

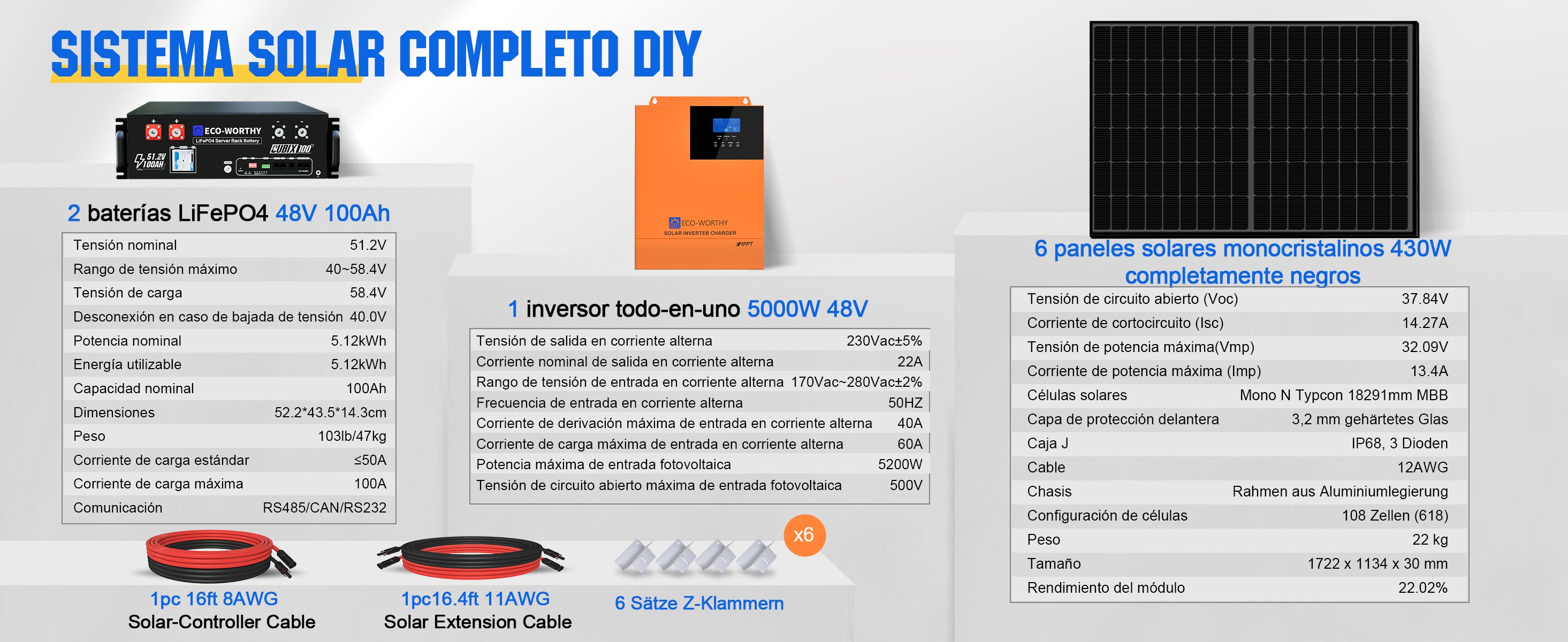

Paquete incluye
6 x Módulo solar monocristalino completamente negro de 430W
1x Inversor Cargador 5000W 48V MPPT 80A
1x Cable de extensión de 5M 12AWG con MC4
1x Cable de extensión de 5M 12AWG con MC4-MC4
6x Conjuntos de soportes en Z

Banco de baterías de litio de 10,24 kWh：
con
1 cable de bandeja de 1,5 m
2 baterías para rack de servidores de 48 V (51,2 V) y 100 Ah

Módulo solar monocristalino totalmente negro de 430W

Potencia nominal: 430W	Voltaje de circuito abierto (Voc): 37.84V
Corriente de cortocircuito (Isc): 14.27A	Voltaje máximo / pico (Vmp): 32.09V
Corriente máxima de potencia (Imp): 13.4 A	Células solares: Mono N Typcon 182*91mm MBB
Cubierta frontal: vidrio templado de 3,2 mm	Caja de conexiones: IP68, 3 diodos
Cable: 12AWG	Marco: aleación de aluminio
Configuración de celda: 108 celdas (6*18)	Peso: 22kg
Tamaño: 1722 x 1134 x 30 mm	Eficiencia del módulo: 22,02%

Inversor Cargador 5000W 48V MPPT 80A

Modo de carga solar
Rango de corriente de carga fotovoltaica: 0-80A	Rango de voltaje MPPT: 120-450 VDC
Potencia máxima de entrada: 4400W	Rango de voltaje de la batería: 40-60 VDC
Modo Invertir
Forma de onda de salida: onda sinusoidal pura	Potencia nominal de salida: 5000W
Salida nominal: 220VAC 50Hz/60Hz	Voltaje nominal de entrada de la batería: 48V
Potencia máxima: 6000W
Modo de carga de CA/red
Entrada nominal: (170VAC-280VAC)±2% 50Hz/60Hz(detección automática)

Batería para rack de servidor de 48V (51,2 V) y 100Ah

Capacidad de la batería: 100Ah	Energía de la batería: 5120Wh
Voltaje de la batería: 51.2V	Rango de voltaje: 40~58 V
Corriente máxima de carga/descarga: 100 A	Rango de temperatura de carga: 0-55 ℃
Rango de temperatura de descarga: ﹣20-55 ℃	Voltaje máximo de carga: 58,4 V
Tamaño del tornillo: M8	Tamaño de la batería: 56,1 × 48,3 × 13,3 cm
Peso de la batería: 94,8 libras	Cada batería viene con un par de cables paralelos de batería.

Cables de 16,4 pies y calibre 12AWG

Tipo de cable: Conexión de paneles solares a controladores de carga	Tensión nominal: 600/1000V
Longitud: 5 metros (16 pies)	Conductor: Alambre de cobre estañado
AWG: 12	Área transversal normal del conductor (mm2): 4
Impermeable: Protección IP 65	Temperatura: -40 °F a +185 °F
Conector: MC4	Peso: 0,742 kg
